Disassembly and Assembly

Combination Meter Assembly

DISASSEMBLY

CAUTION: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

1. Disengage the claw (E) to remove case (B) from back cover (A).




2. Disengage the claw (F) to remove meter glass (D) and reflector (C) from inner case.

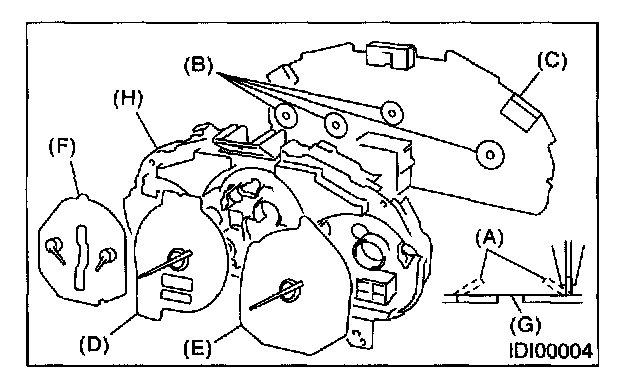

3. Pull up the claw (A) in portion (B) of combination meter printed circuit (C) with combination pliers. Push out the speedometer (D), tachometer (E) and fuel gauge and water temperature gauge assembly (F) using hole (G).




4. Pull up the claw in center of combination meter printed circuit (C), and remove the printed circuit from case (H).

ASSEMBLY

Assemble in the reverse order of disassembly.
