Check MIL Does Not Come ON

CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) DOES NOT COME ON.

DIAGNOSIS:
The CHECK ENGINE malfunction indicator lamp (MIL) circuit is open or shorted.

TROUBLE SYMPTOM:
When the ignition switch is turned ON (engine OFF), MIL does not come on.

Wiring Diagram:

WIRING DIAGRAM:

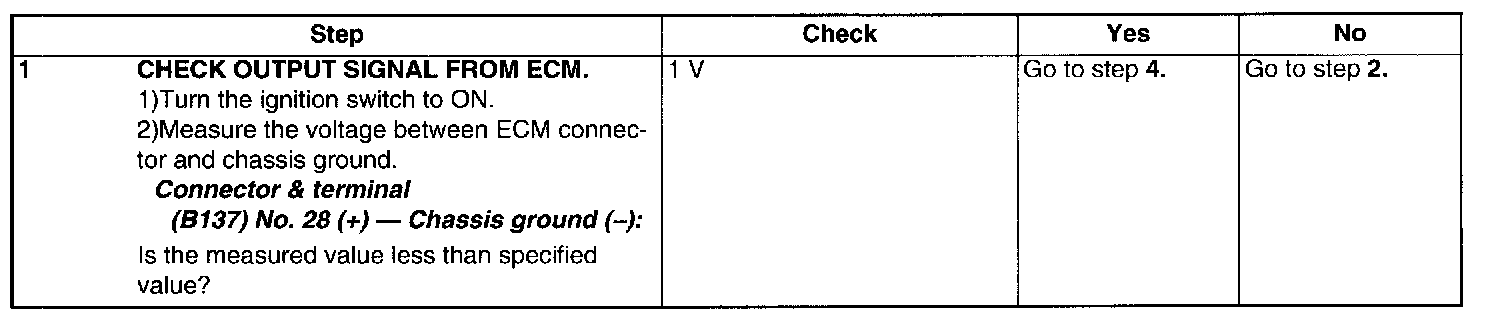

Step 1:

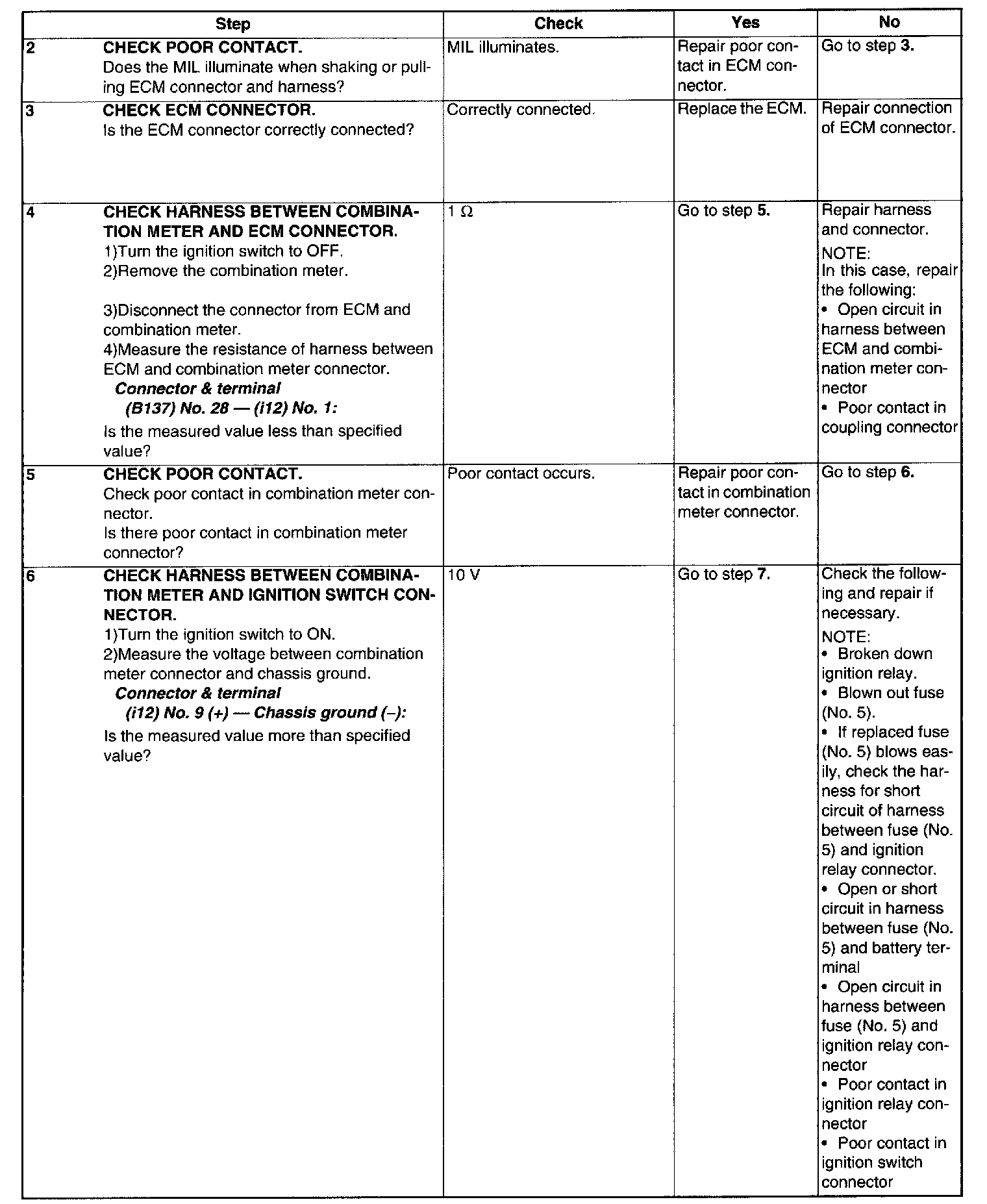

Step 2 - 6:

Step 7:
