Pinout Values and Diagnostic Parameters

Control Module I/O Signals

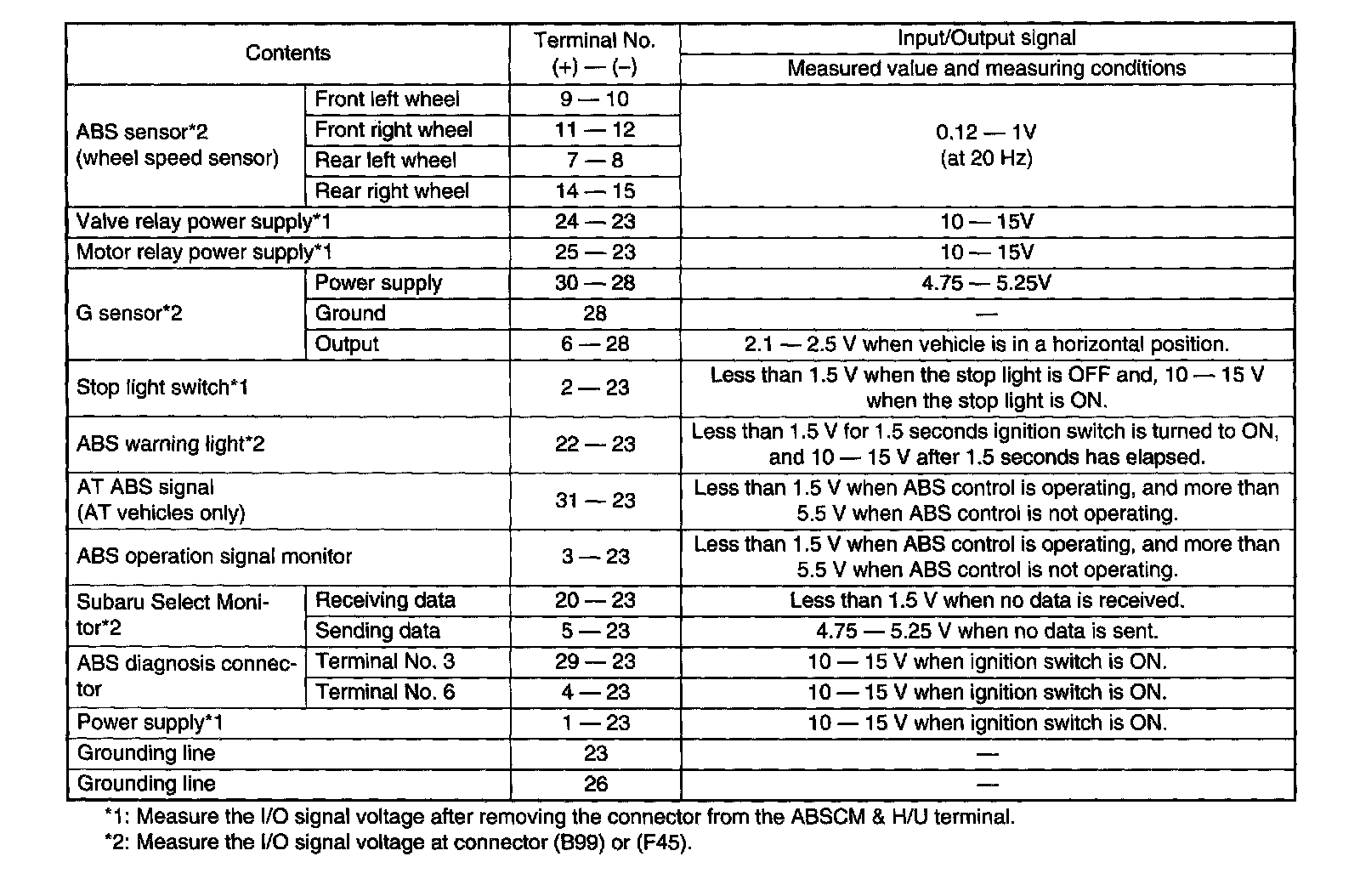

ELECTRICAL SPECIFICATIONS








NOTE:

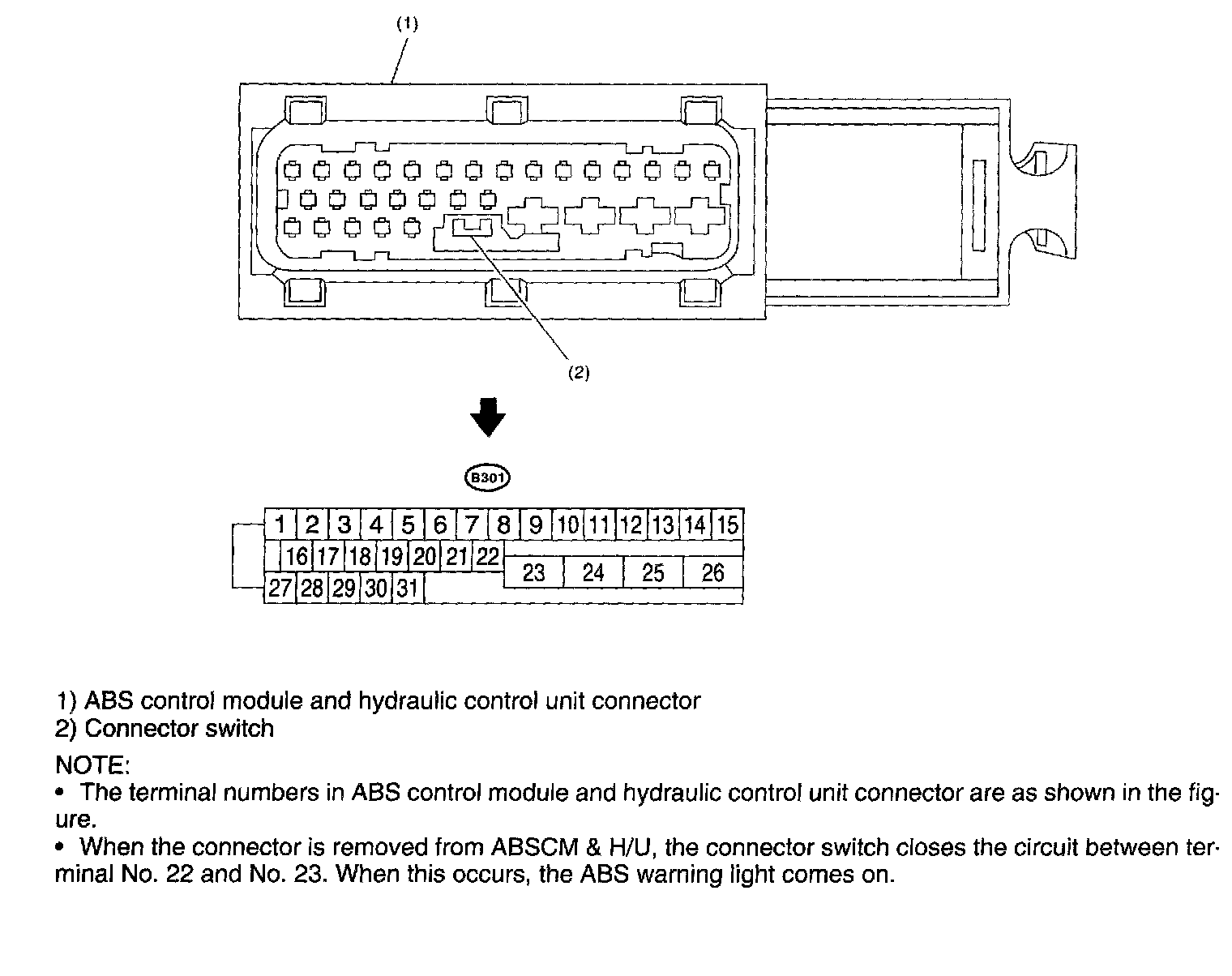

^ The terminal numbers in ABS control module and hydraulic control unit connector are as shown in the figure.
^ When the connector is removed from ABSCM & H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. When this occurs, the ABS warning light comes on.

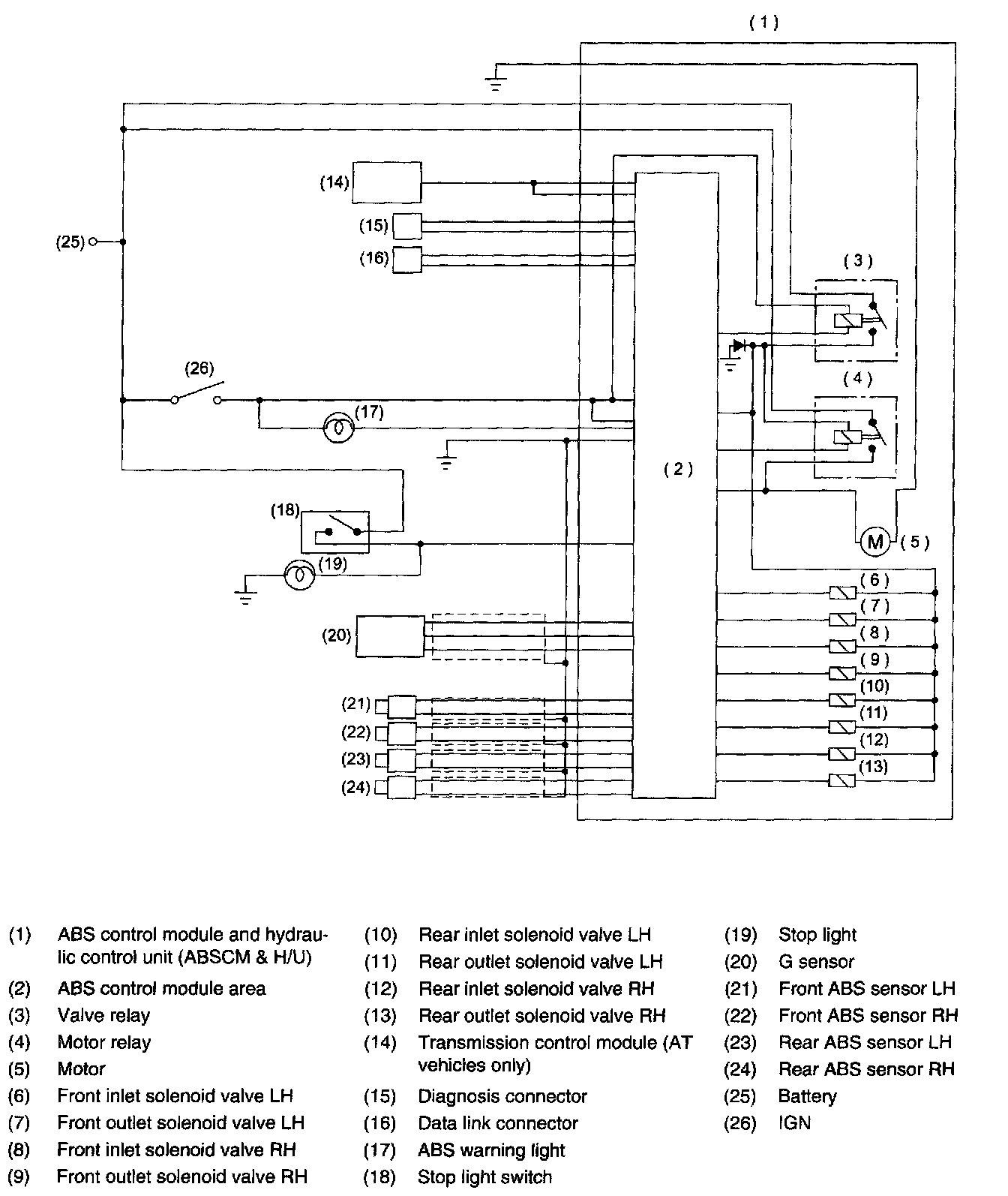

SCHEMATIC





WAVEFORM
