Baja F4-2.5L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
E1-E61 & T2-T4
E1-E61 & T2-T4
ENGINE WIRING HARNESS AND TRANSMISSION CORD
E1-E61:

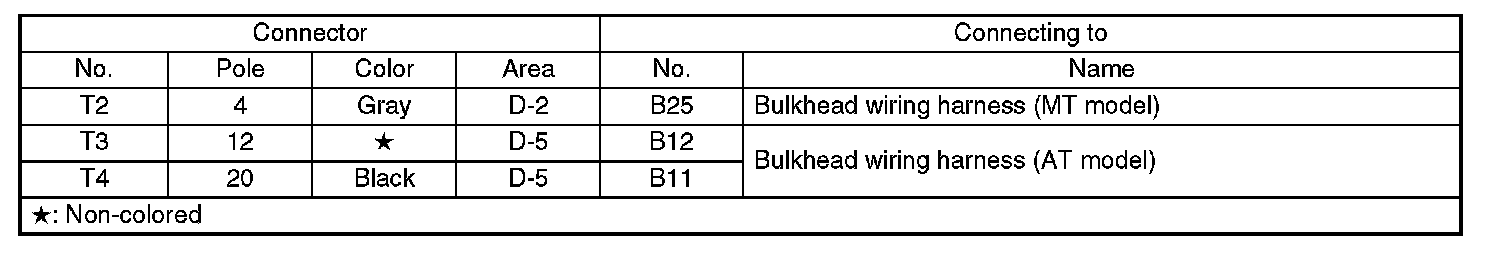

T2-T4:

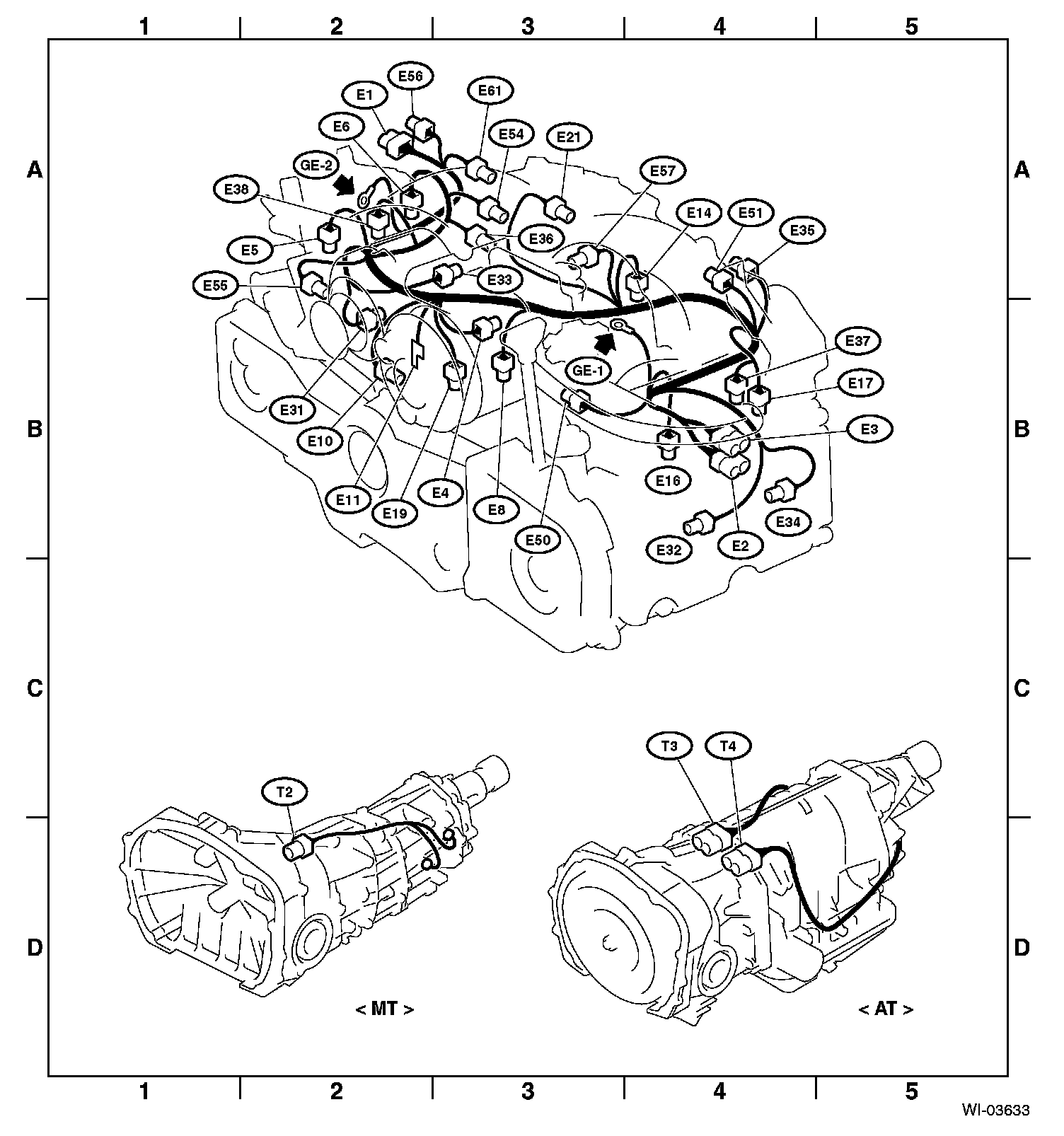

Area View:
