4-Cylinder Turbo Engine

AT(H4)TB-01:

AT(H4)TB-02:

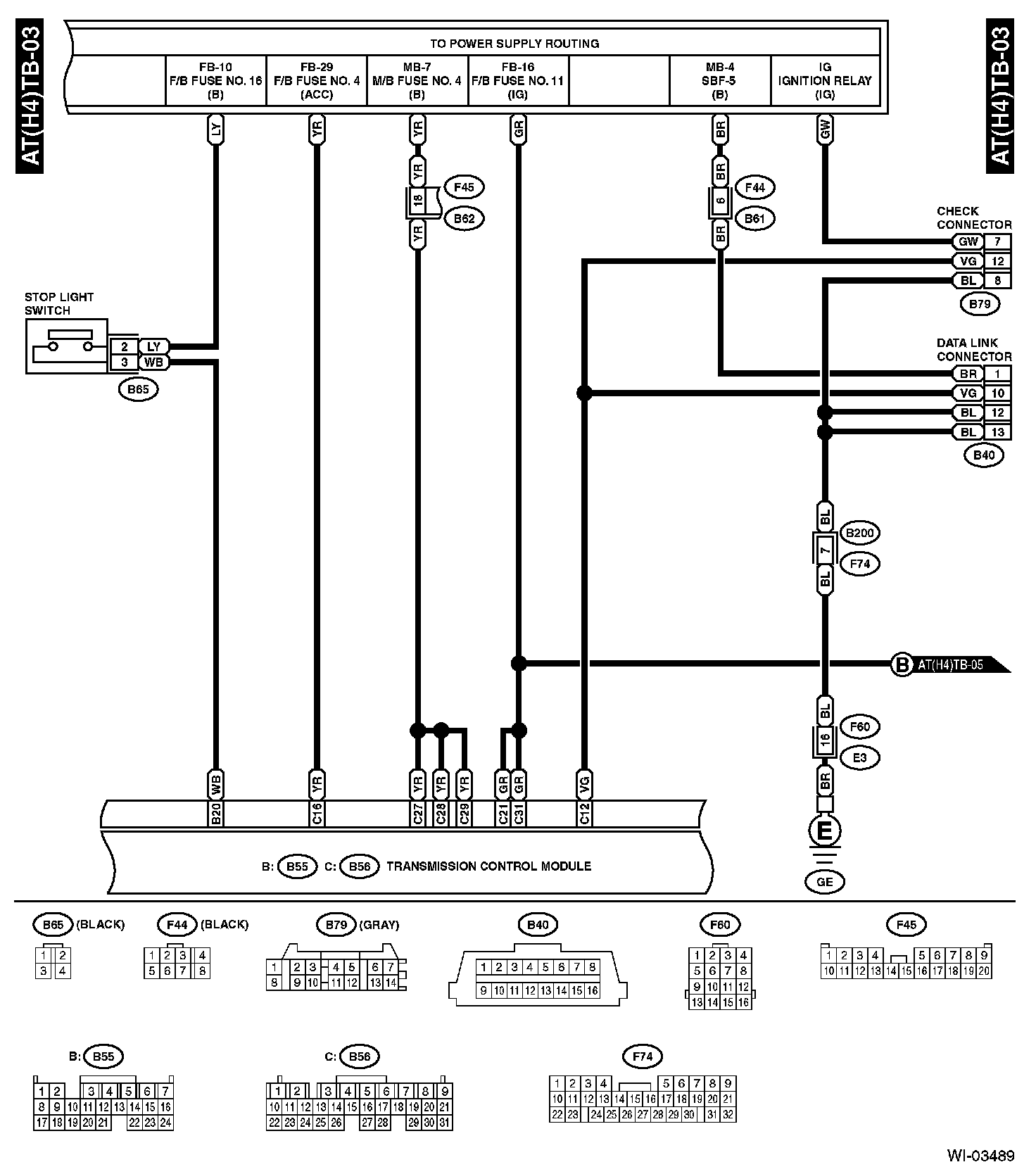

AT(H4)TB-03:

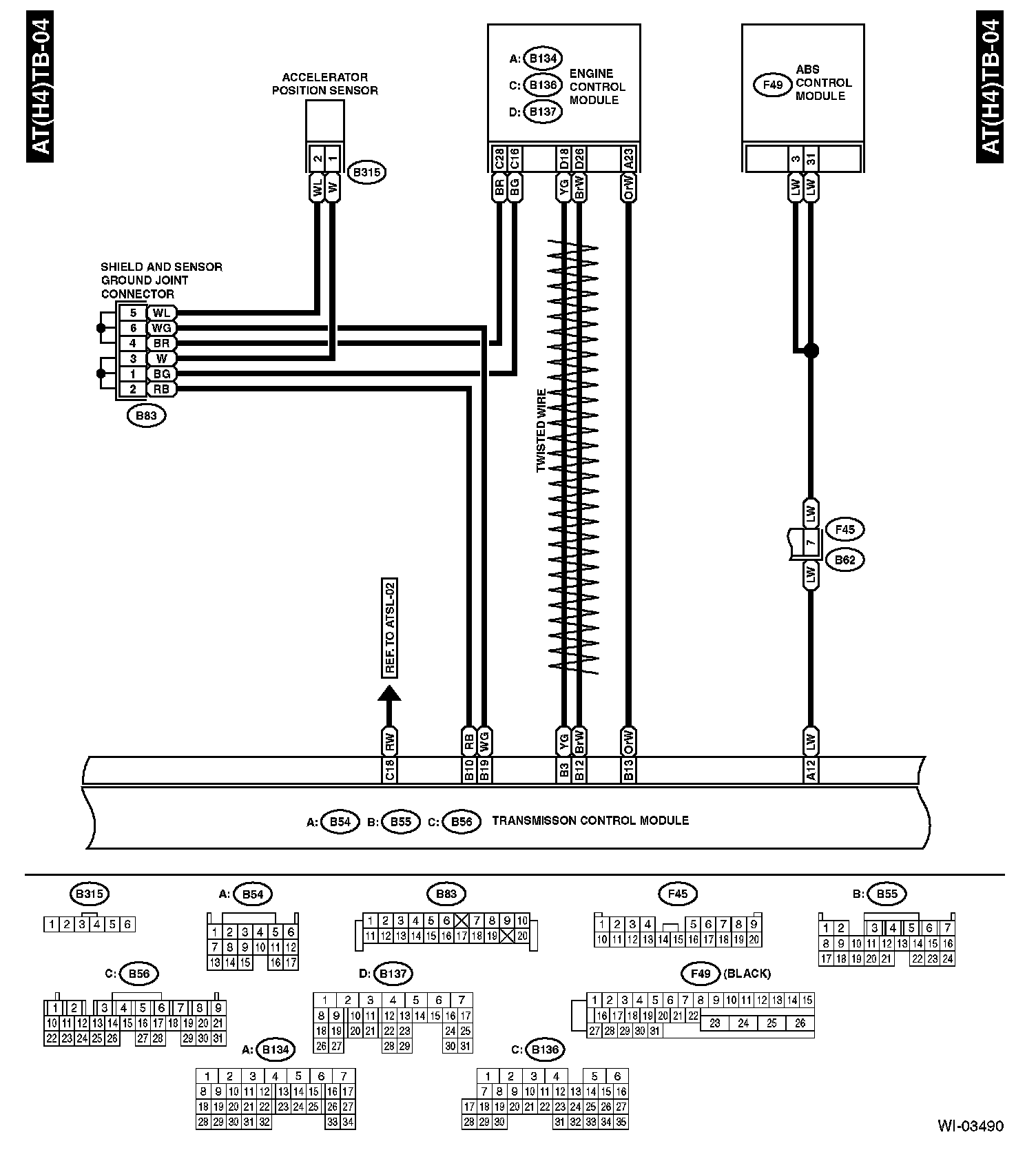

AT(H4)TB-04:

AT(H4)TB-05:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
