Radiator Cooling Fan: Testing and Inspection

INSPECTION

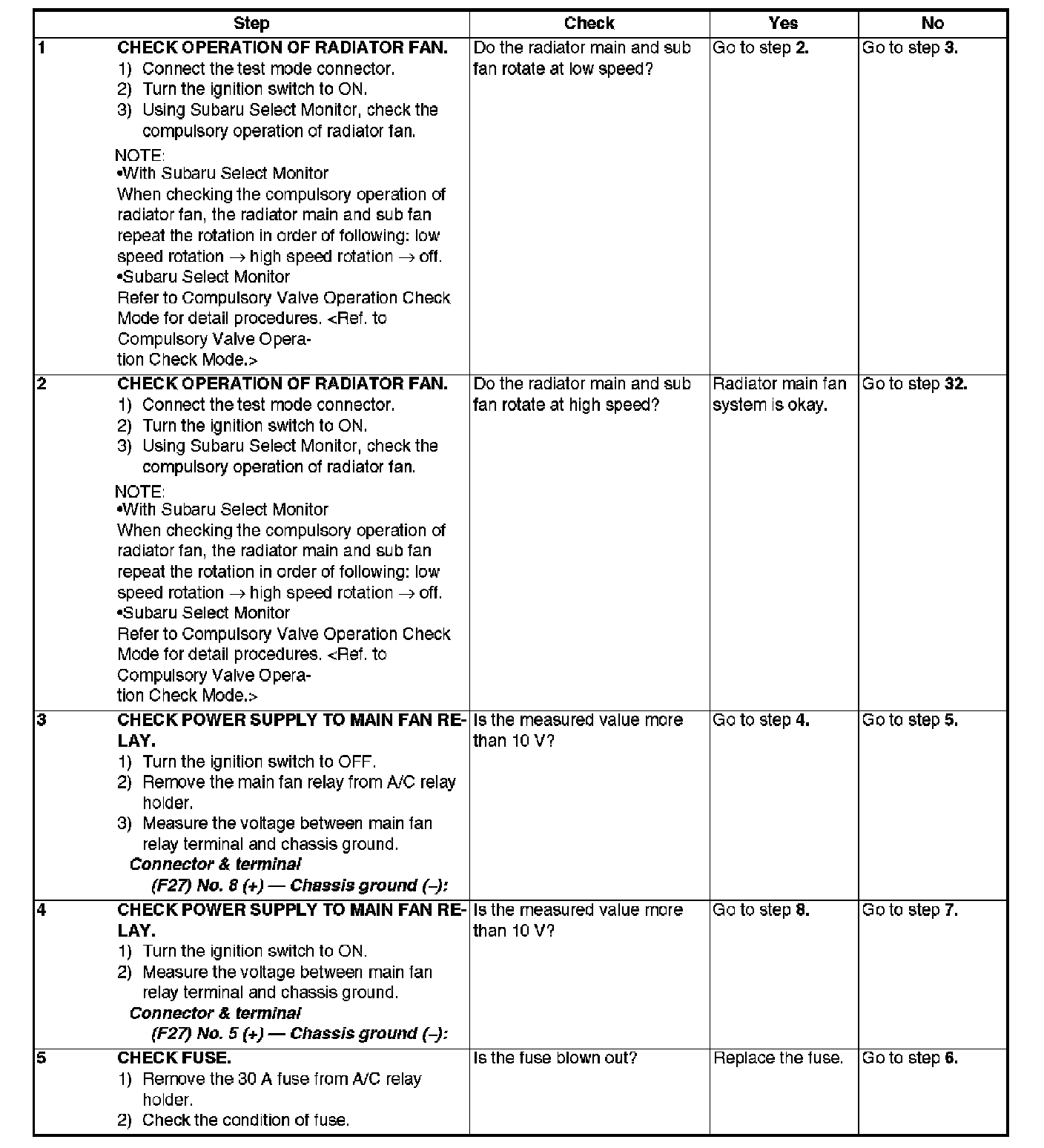

Steps 1-5:

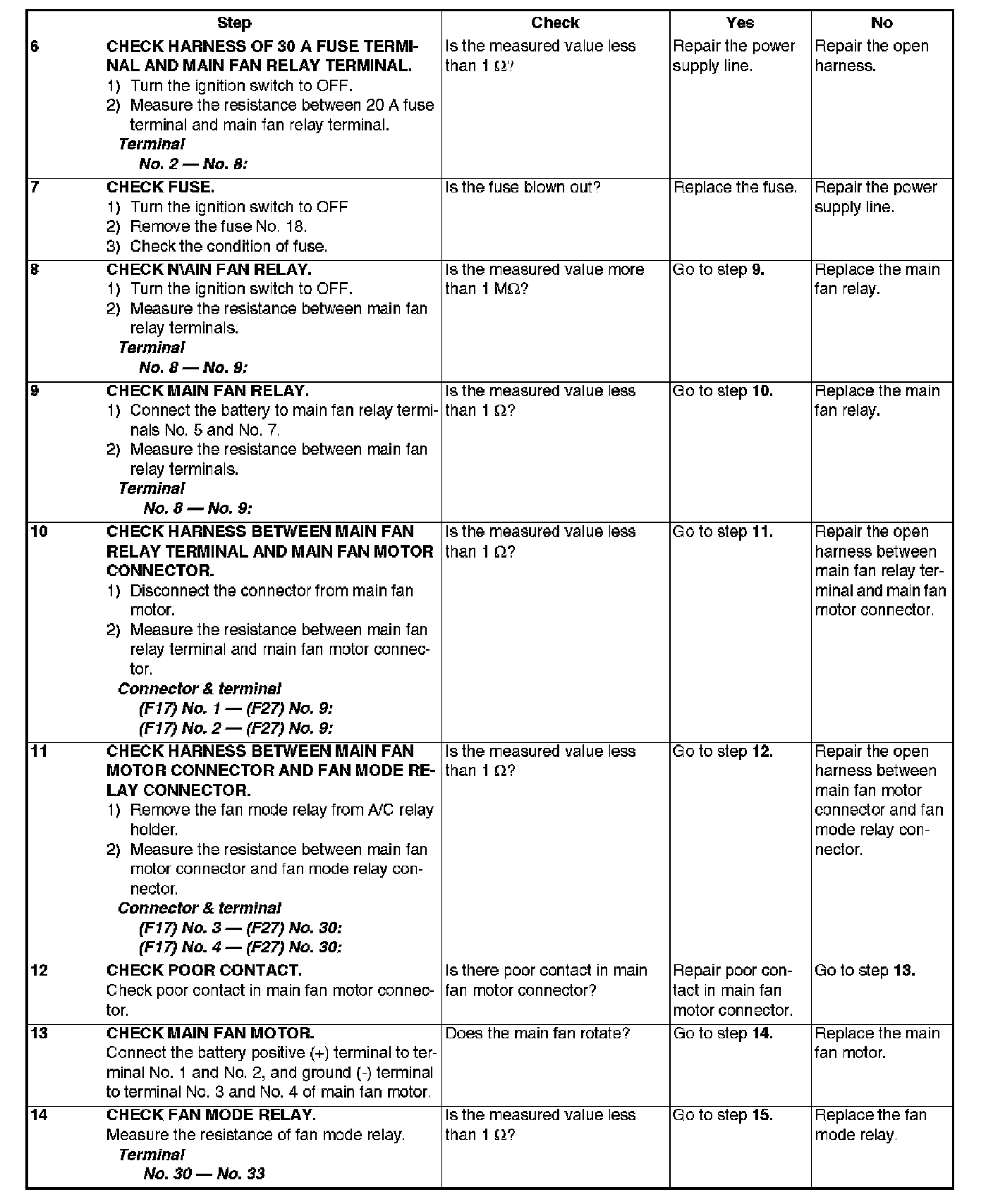

Steps 6-14:

Steps 15-23:

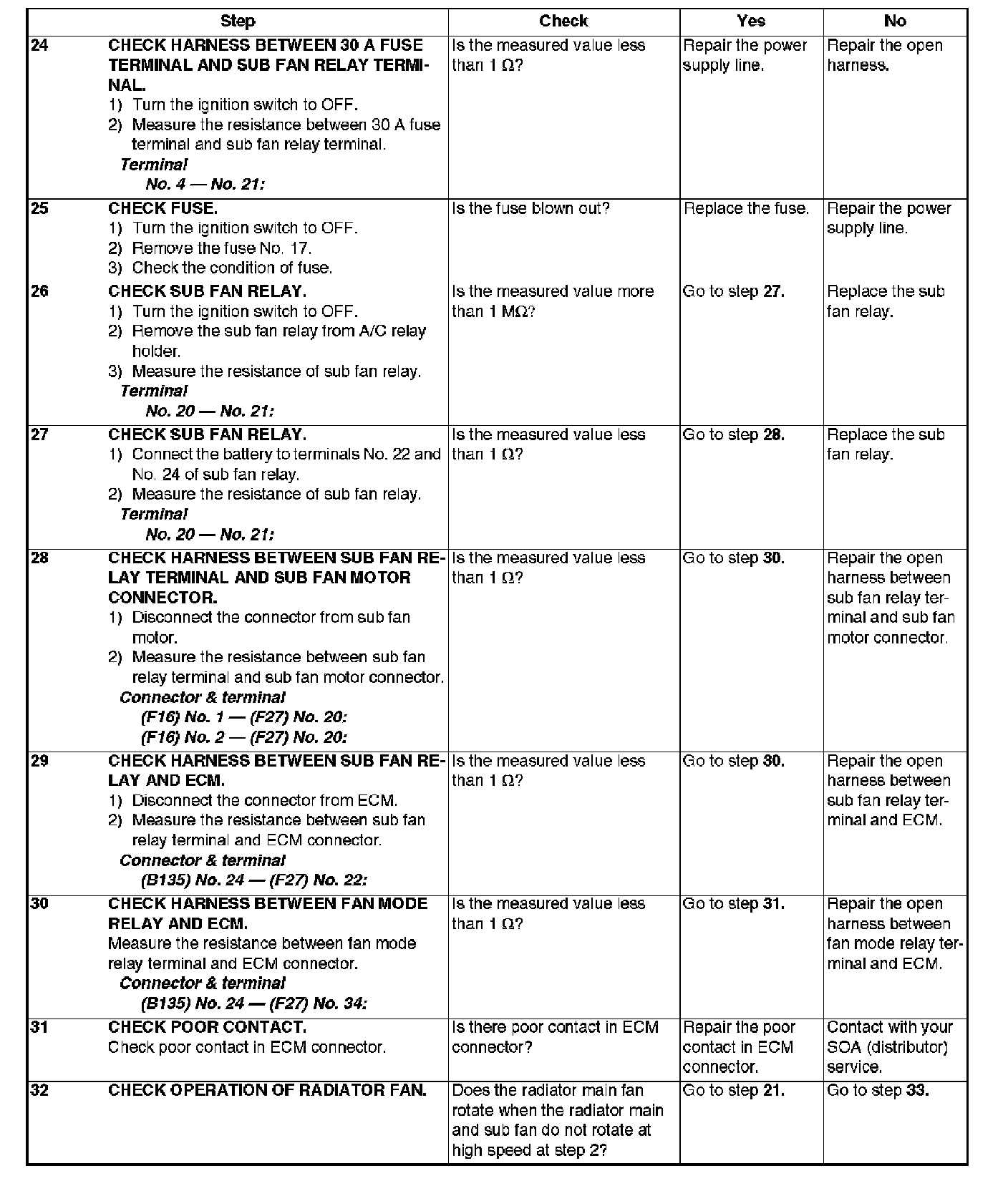

Steps 24-32:

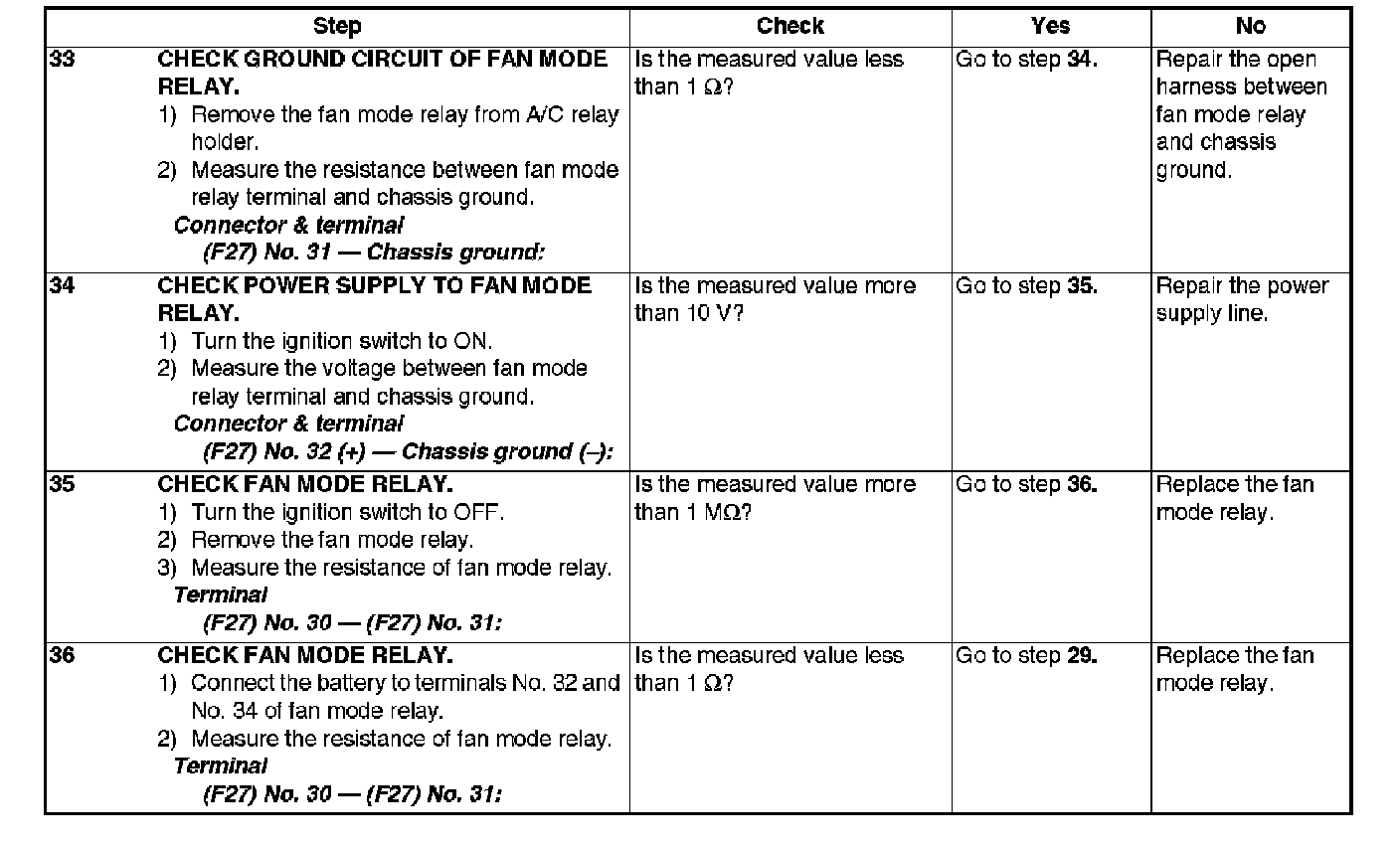

Steps 33-36:

DETECTING CONDITION:
^ Engine coolant temperature is above 95°C (203°F).
^ Vehicle speed is below 19 km/h (12 MPH).

TROUBLE SYMPTOM:
^ Radiator main and sub fan do not rotate under the above conditions.
