Cylinder Block Assembly: Description and Operation

CYLINDER BLOCK

- With the 2.5L turbo engine that generates increased torque outputs, the cylinder block uses a semi-closed deck design which can hold the cylinder liners with higher rigidity.

- The cylinder liners are made of cast iron. They are dry type which means their outer surfaces are entirely in contact with the cylinder block.

- The cylinder block supports the crankshaft at its five journals. The journal supporting portions are designed such that sufficient stiffness and quiet operation are ensured.

- Sintered material is fit in the casting at the #5 journal to achieve further quietness.

- The oil pump is located in the front center of the cylinder block and the water pump is located at the front of the left-cylinder bank. At the rear of the right-cylinder bank is an oil separator which removes oil mist contained in blow-by gas.

CRANKSHAFT

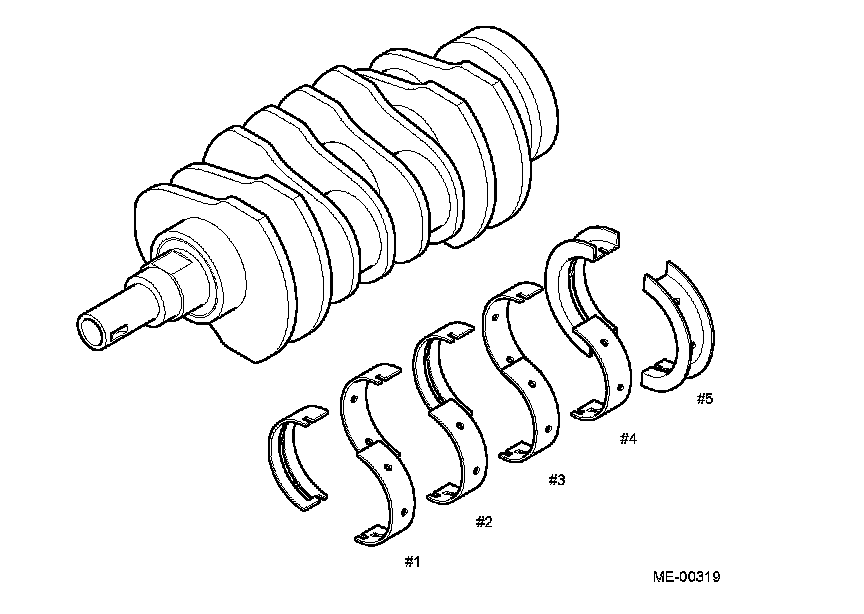

The crankshaft is supported in the cylinder block by five bearings. Each corner formed by a journal or pin and a web is finished by fillet-rolling method which increases strength of that area. The five crankshaft bearings are made of aluminum alloy and the No. 5 bearing is provided with a flanged metal to support thrust forces.



PISTONS





- The pistons are of a slipper skirt design for reduced weight and friction. The oil control ring groove utilizes a thermal design.

- The piston pin is offset either downward (Nos. 1 and 3 pistons) or upward (Nos. 2 and 4 pistons).

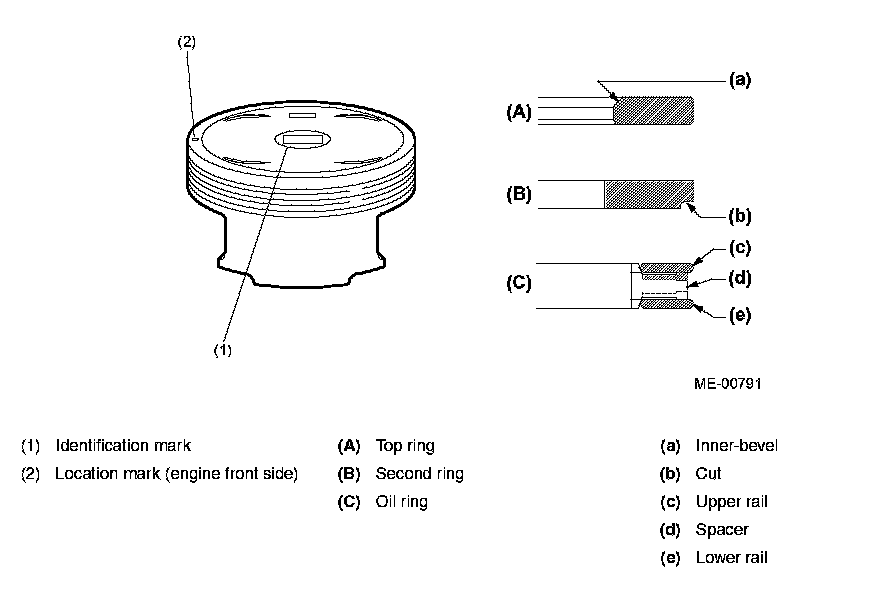

- The piston head has recesses to prevent interference with the intake and exhaust valves. It also has engraved marks to identify the piston size and the direction of installation. All the pistons are common in their design.

- Three piston rings are used for each piston � two compression rings and one oil control ring. The top piston ring has inner bevels and the second piston ring has a cut on the bottom outside to reduce oil consumption.
