Timing Components: Description and Operation

TIMING BELT

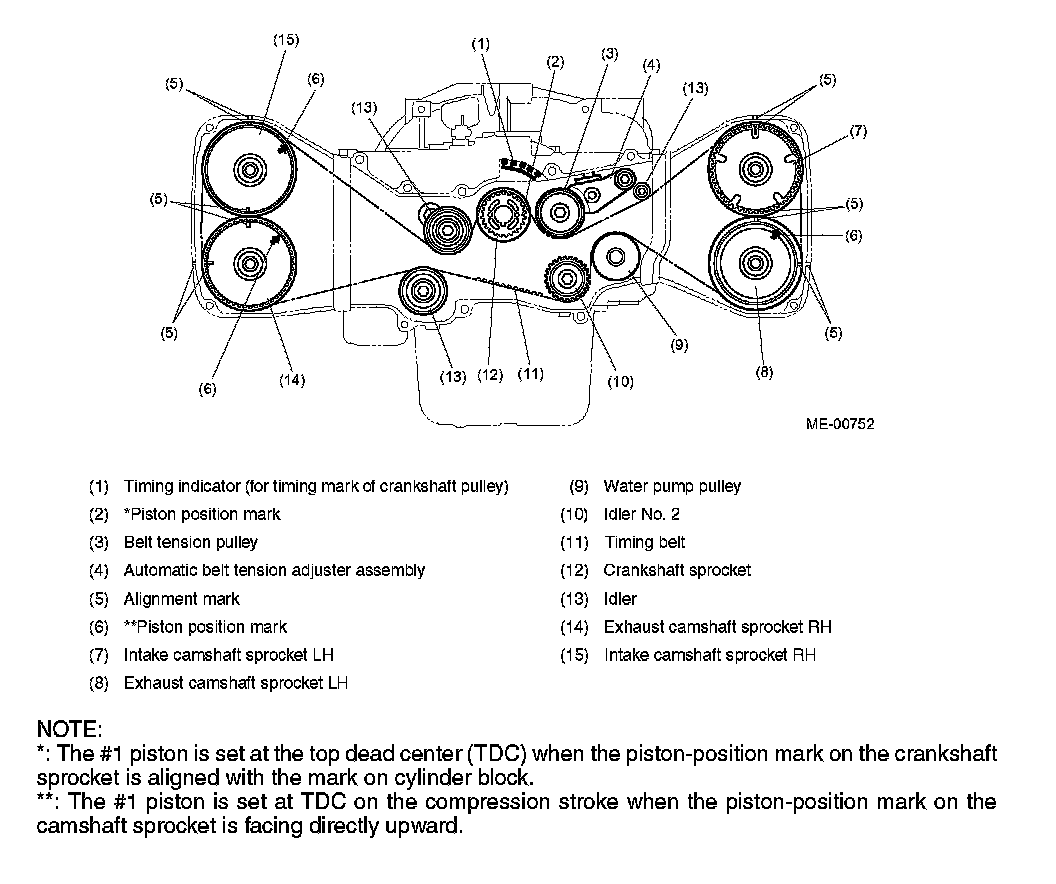

2. Timing Belt
- A single timing belt drives four camshafts (intake and exhaust camshafts on each bank). The belt also drives the water pump by its non-toothed side.

- The timing belt teeth have a specially designed round profile which contributes to quiet operation. The timing belt is made of strong and inflexible core cords, wear-resistant canvas and heat-resistant rubber material.

- A hydraulic automatic belt tension adjuster always keeps the belt taut to the specified tension. Any manual belt tension adjustment is unnecessary.



AUTOMATIC BELT TENSION ADJUSTER




3. Automatic Belt Tension Adjuster
The automatic belt tension adjuster consists of a tensioner unit and a bracket. It maintains the timing belt tension automatically at a specified level to enable the belt to transmit power correctly, reduce operating noise and increase the life of the belt.

The cylinder of the tensioner unit incorporates an adjuster rod, wear ring, plunger spring, return spring, check ball and silicone oil.

The automatic belt tension adjuster gives tension to the belt by a levering action which is produced by the push force of the tensioner units adjuster rod. It operates in the process detailed below.


AUTOMATIC BELT TENSION ADJUSTER
- Timing belt tensioning action
When the belt becomes slack, the adjuster rod is pushed upward by the return spring. The oil in the reservoir chamber, which is pressurized by the plunger spring to a certain level, pushes open the check ball and flows into the oil pressure chamber to keep the pressure constant.

The thrust force F resulting from extension of the adjuster rod applies a counterclockwise torque to the tensioner bracket, which causes the belt tension pulley at its end to turn in the same direction. This applies tensioning pressure Pb to the timing belt.

- Timing belt tension balancing action
When the belt tension pulley is pushed against the timing belt with pressure Pb, reaction force Tb of the timing belt generates the reaction force P at the point on which the adjustor rod force is acting.

This force P pushes the adjuster rod until it balances with the sum of the thrust force F and the pressure of the oil in the oil pressure chamber. Therefore, the timing belt tension is kept constant.

- Over-tension correction action
If the tension of the timing belt increases excessively, the force P becomes larger than the thrust force F and silicone oil is returned from the oil pressure chamber to the reservoir chamber little by little until the force P balances again with the thrust force F. Thus the timing belt tension is maintained at the specified level at all times.


BELT COVER




4. Belt Cover
- The belt cover is made of lightweight, heat resistant synthetic resin molding. It constitutes a totally enclosed housing with its cylinder block mating edges sealed with rubber gaskets. This effectively protects the inside components from dust and liquid.

- Rubber seals used between the cylinder block and the belt cover effectively reduces transmission of noise and vibration.

- The front belt cover has a line mark for ignition-timing checking.
