DTC 72

DTC 72

DIAGNOSIS:
- Airbag main harness is open, shorted or shorted to ground.
- Airbag module harness (Passenger) is open, shorted or shorted to ground.
- Passenger's airbag module is faulty.
- Airbag control module is faulty.

CAUTION:
- Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the ground cable from the battery, and wait more than 20 seconds before starting to work.
- When inspecting the airbag main harness, disconnect the driver's airbag module and passenger's airbag module connectors for safety reasons.

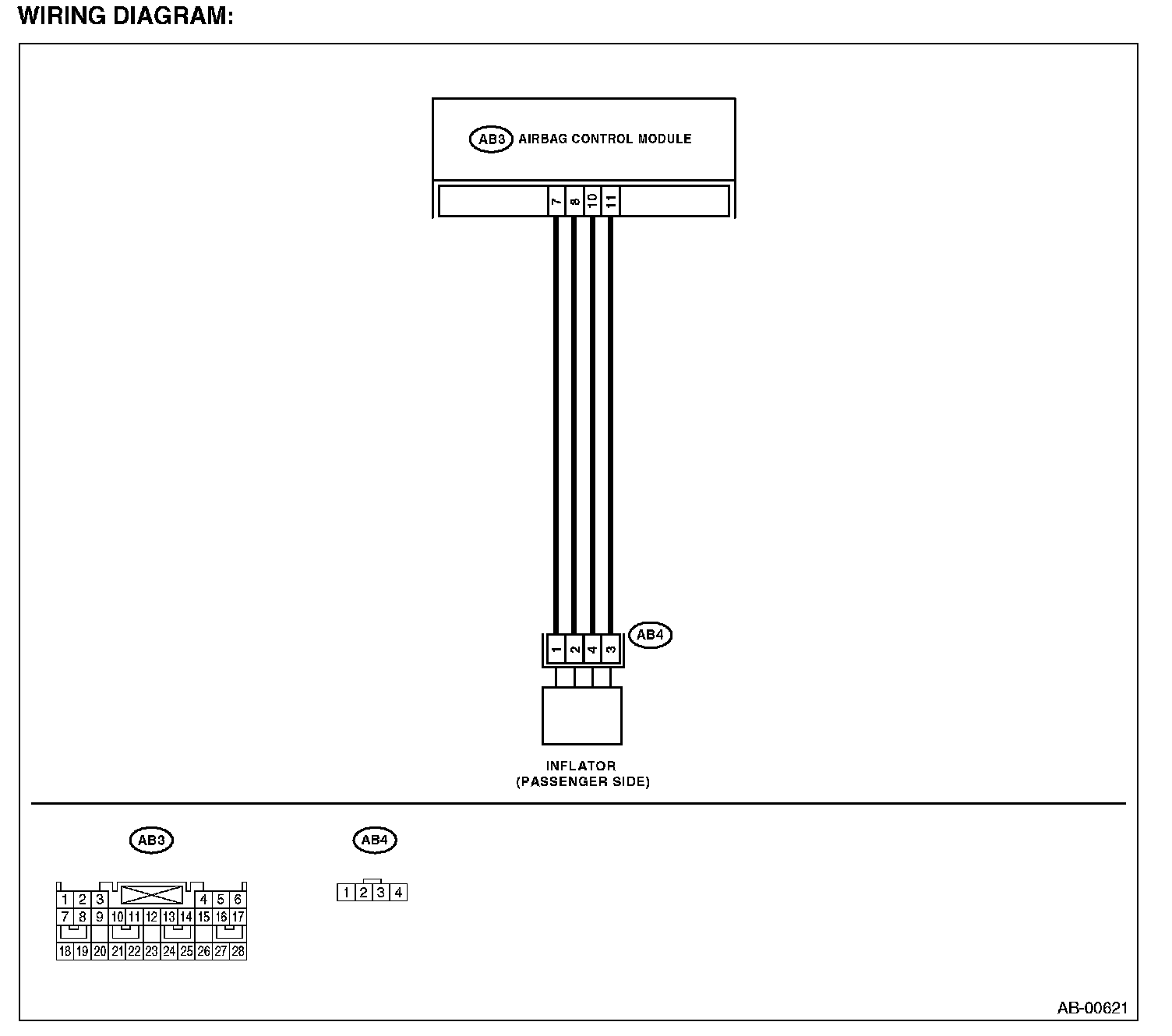

Wiring Diagram:

WIRING DIAGRAM:

Step 1 - 3:
