Transmission Control Systems

Turbo Model:

AT(TB)-01:

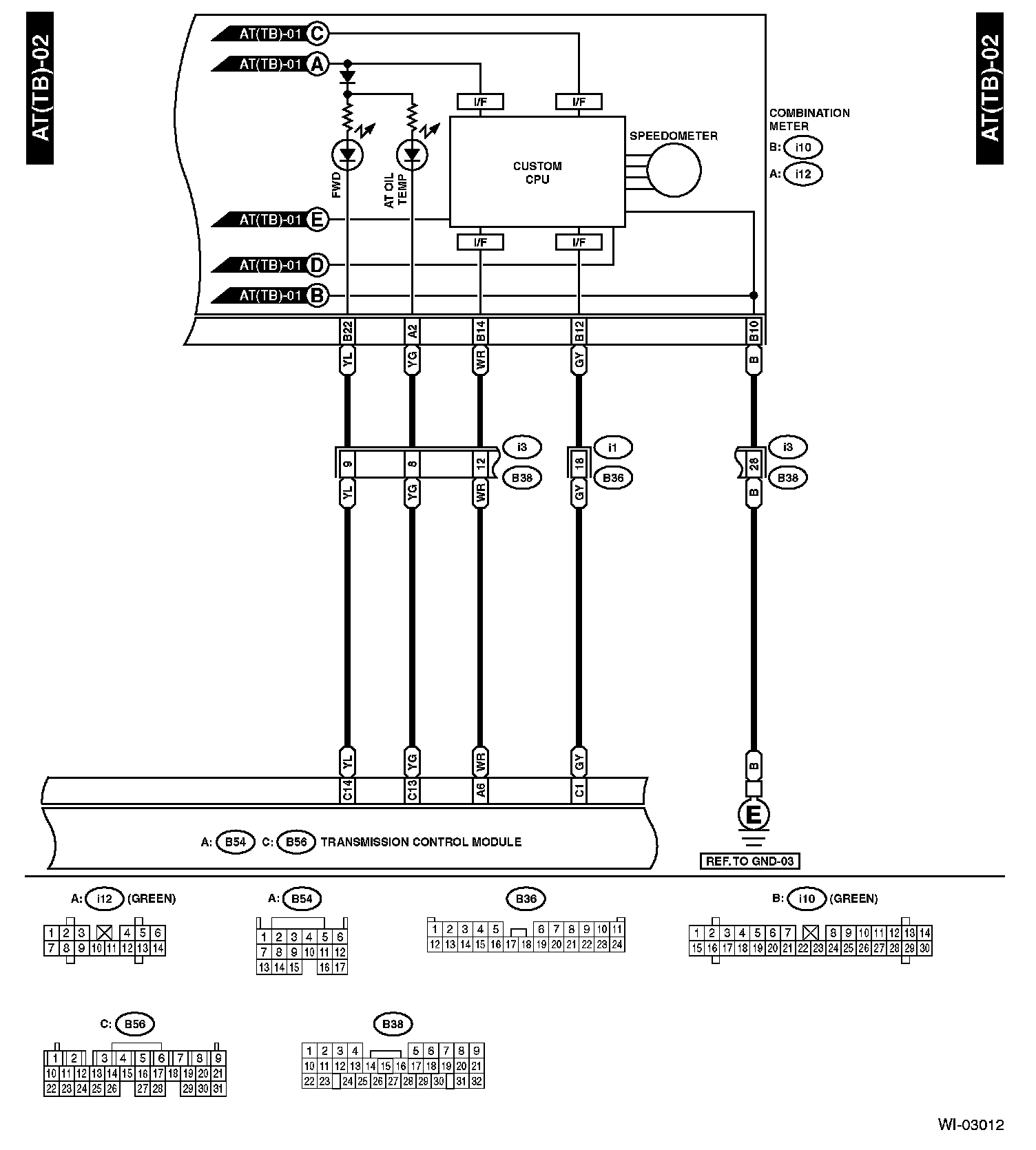

AT(TB)-02:

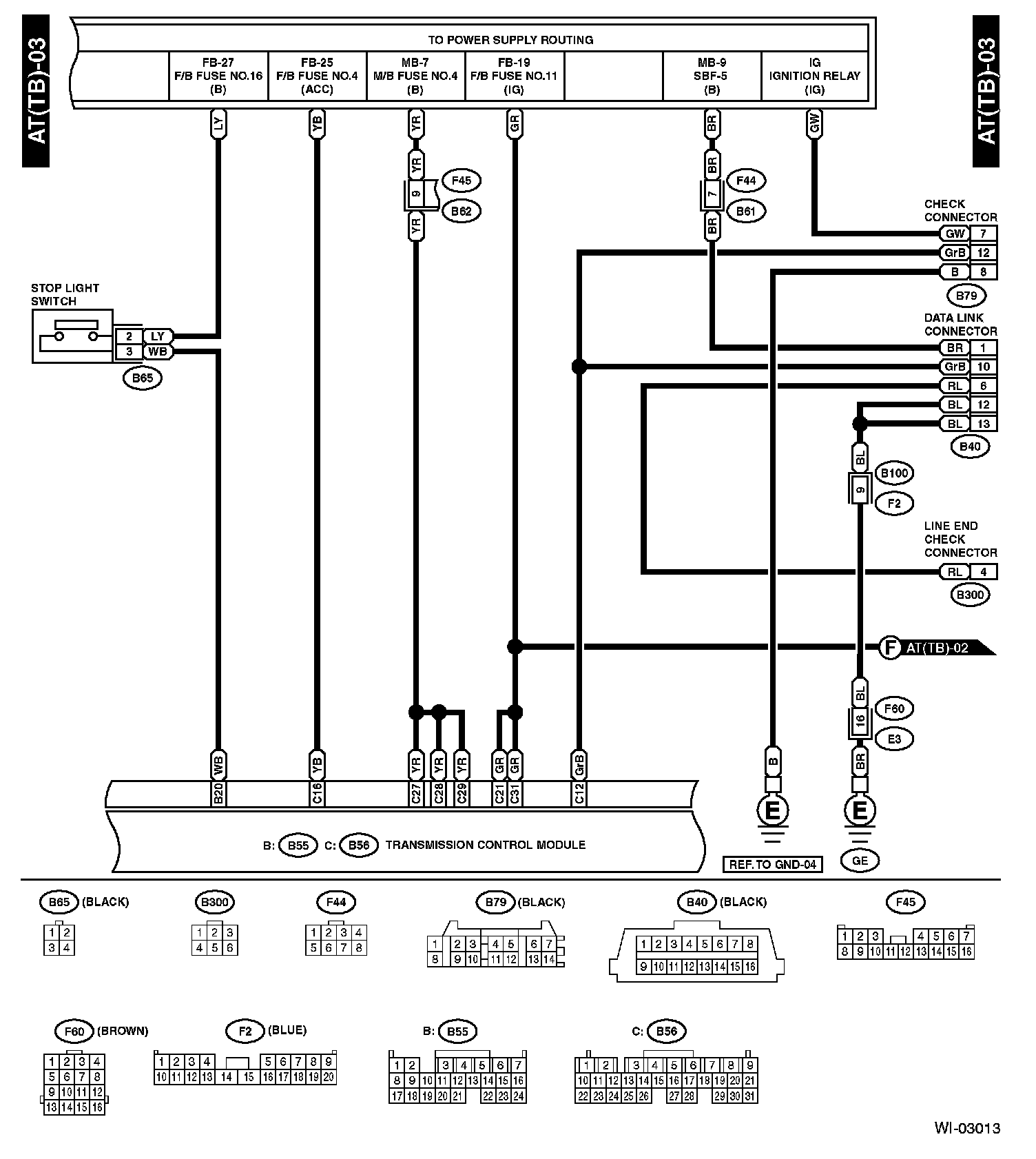

AT(TB)-03:

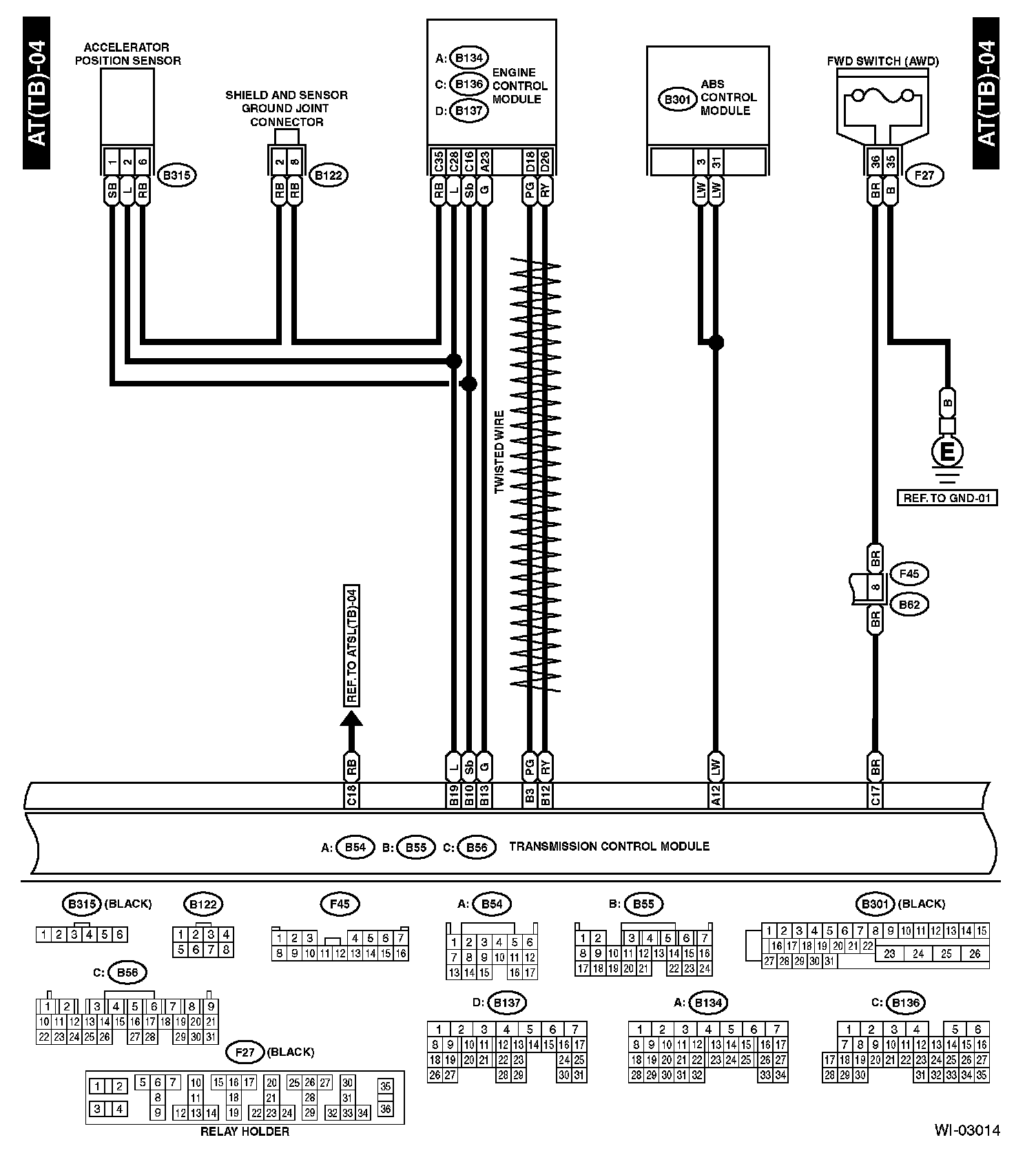

AT(TB)-04:

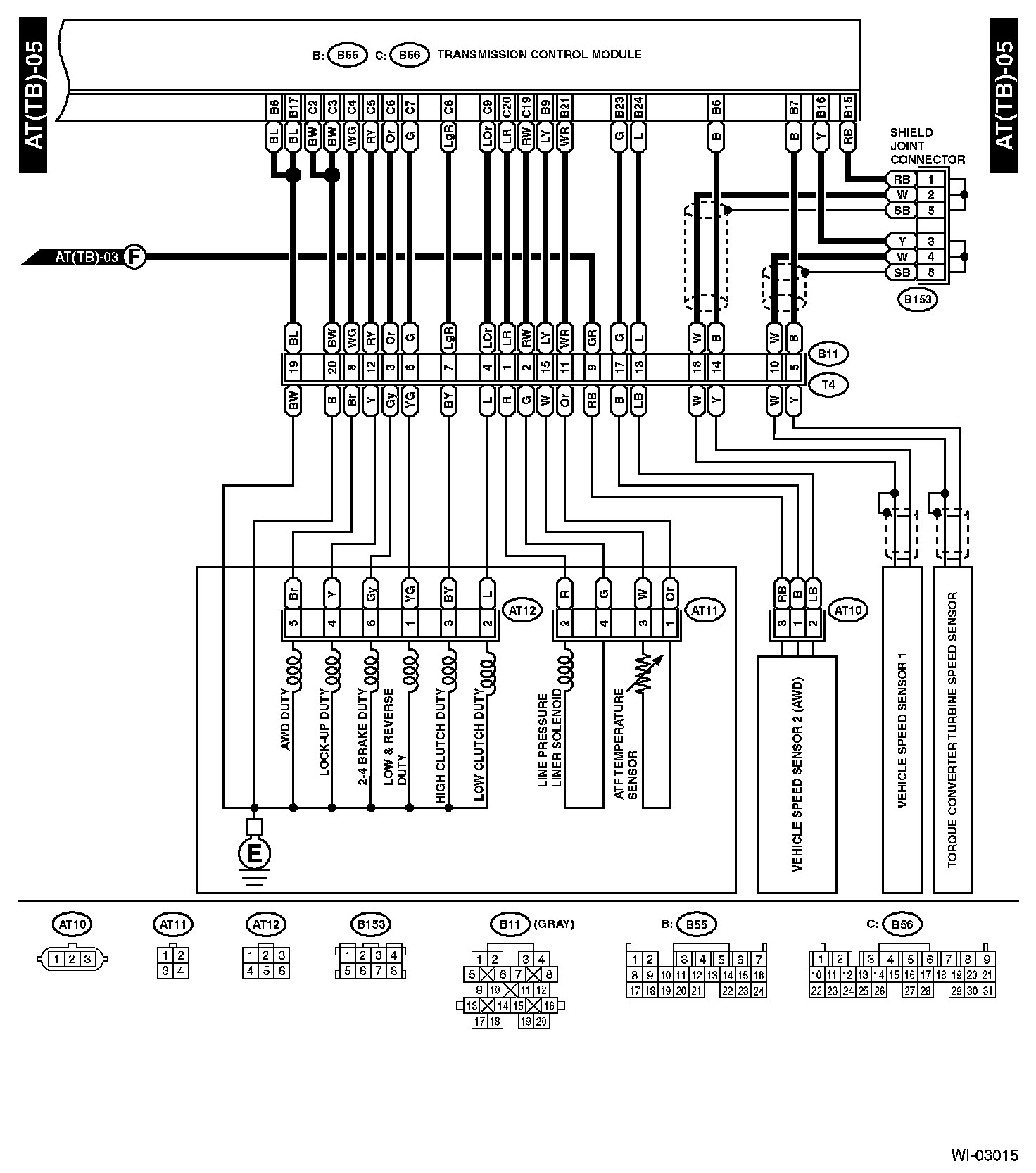

AT(TB)-05:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
