Marker Lamp: Service and Repair

Side Marker Light Bulb

REMOVAL

1. Remove the headlight assembly.

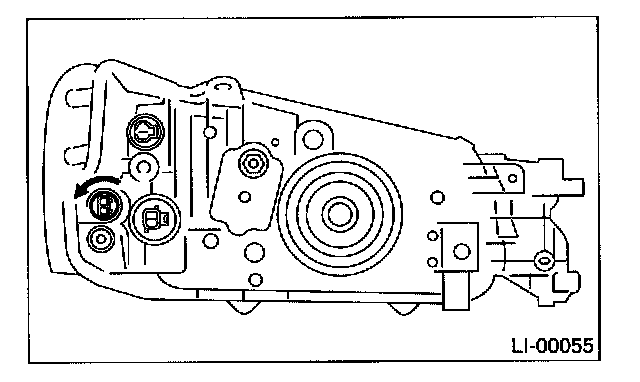

2. Turn the socket and remove the bulb.

INSTALLATION

Install in the reverse order of removal.
