Home >> Subaru >> 2004 >> Impreza F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> C/C(ES)-01

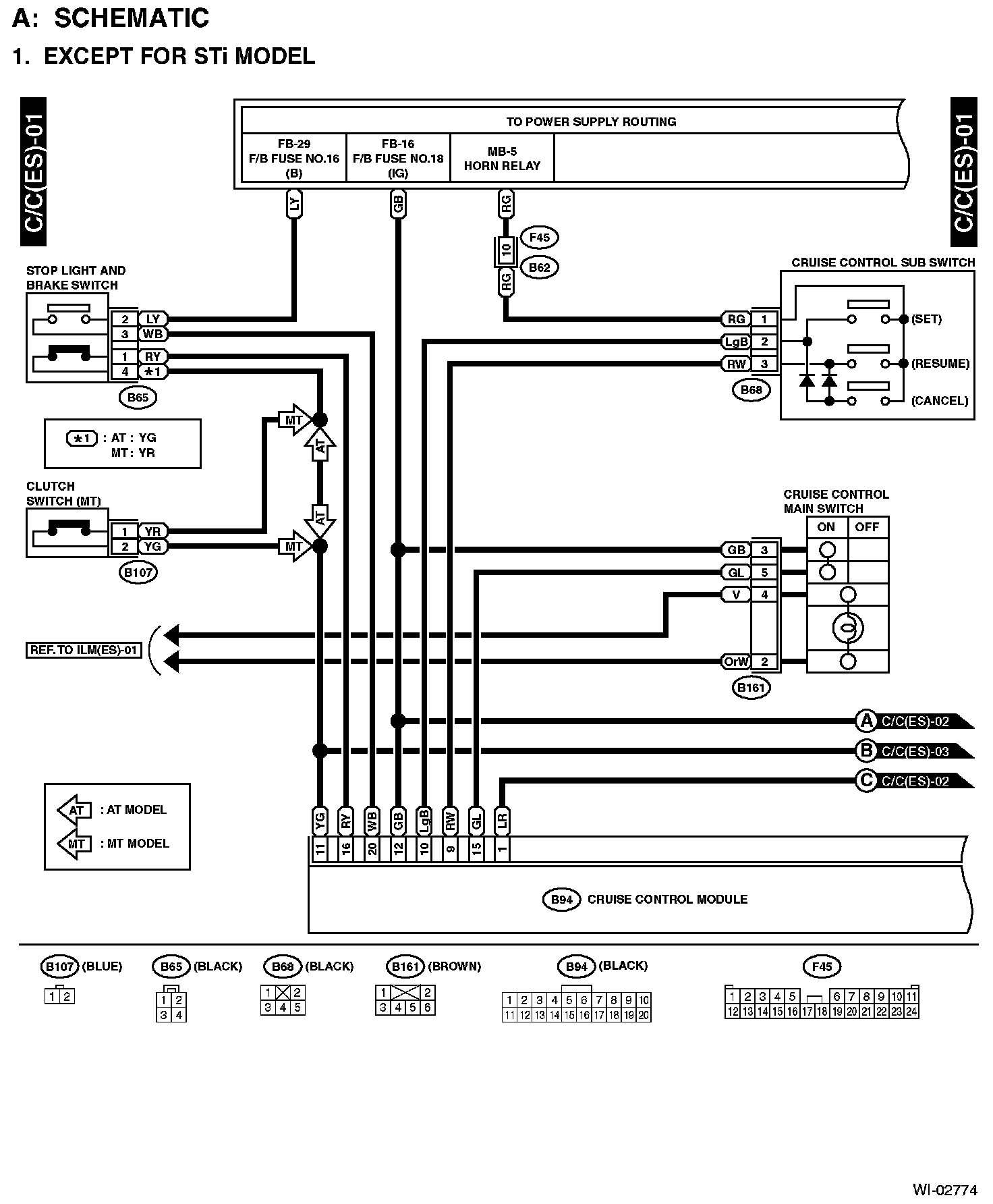

C/C(ES)-01

C/C(ES)-01:
