Speedometer Head: Testing and Inspection

Speedometer




INSPECTION

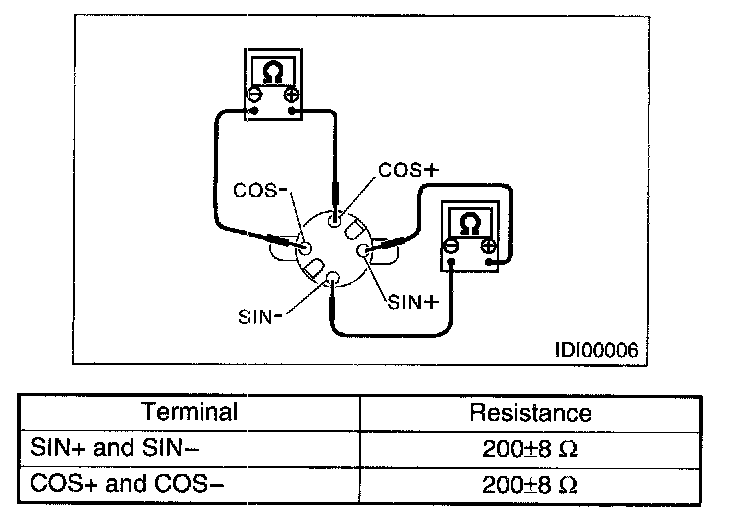

Measure the speedometer resistance.
If NG, replace the speedometer and tachometer assembly.
If OK, replace the combination meter printed circuit.
