Tachometer: Testing and Inspection

Tachometer




INSPECTION

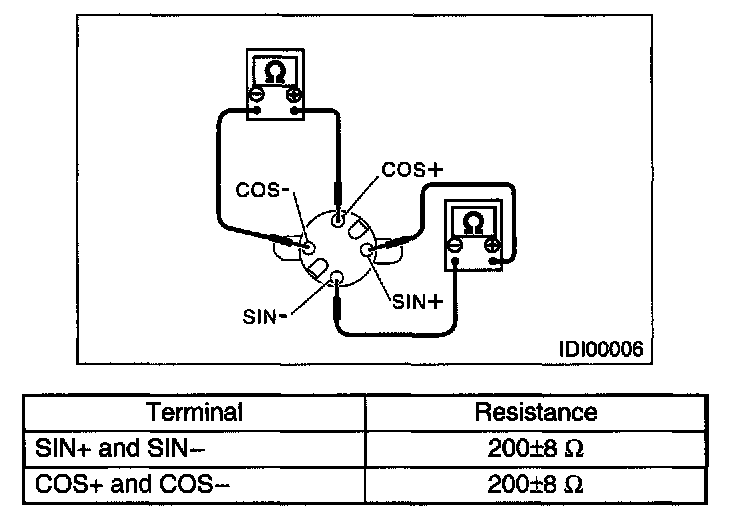

Measure the tachometer resistance.
If NG, replace the speedometer and tachometer assembly.
If OK, replace the combination meter printed circuit.
