Map Light: Service and Repair
Spot LightREMOVAL
1. Disconnect ground cable from battery.

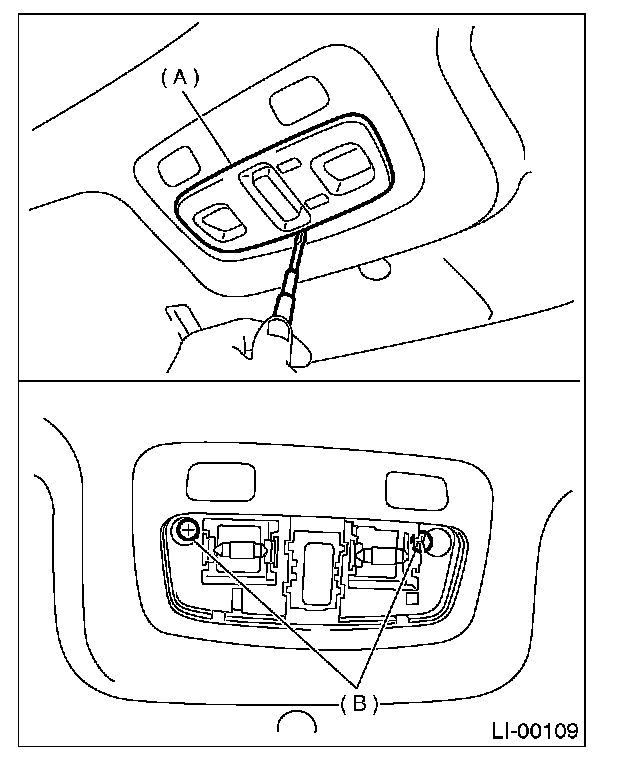

2. Remove lens (A) and spot light mounting screw (B).
3. Disconnect harness connectors and remove spot light.
INSTALLATION
Install in the reverse order of removal.
