Vdc System Trouble Code Charts For Select Monitor Results

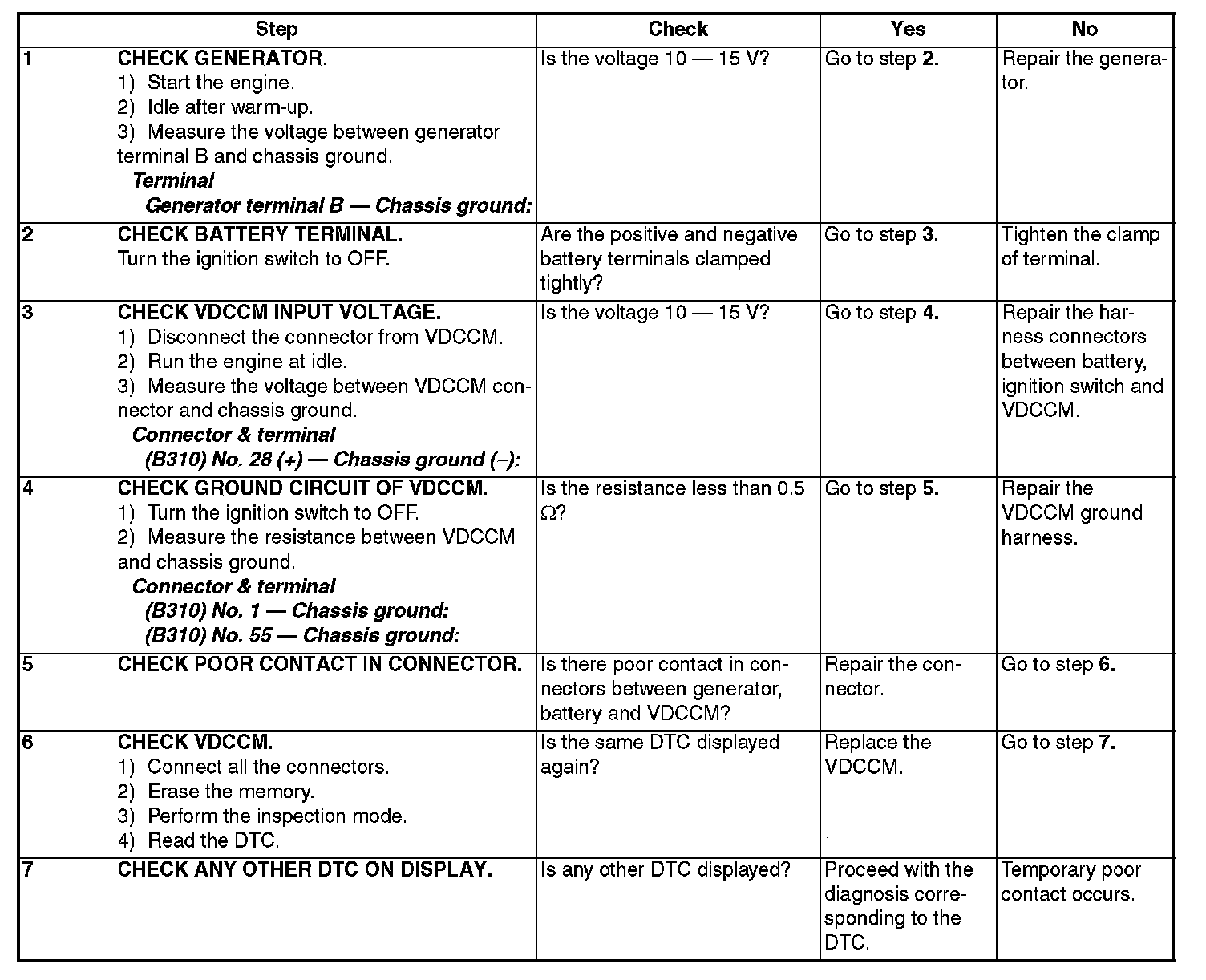

DTC 42 POWER SUPPLY TOO LOW

DTC DETECTING CONDITION:
- Power supply voltage of VDCCM is too low.
- Voltage of VDCCM too high. (Warning lights go off if voltage returns.)

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.
- EBD does not operate. (When the voltage extremely low or high.)

NOTE: At this time, brake warning light comes on as well as ABS warning light.
