Vdc System Trouble Code Charts For Select Monitor Results

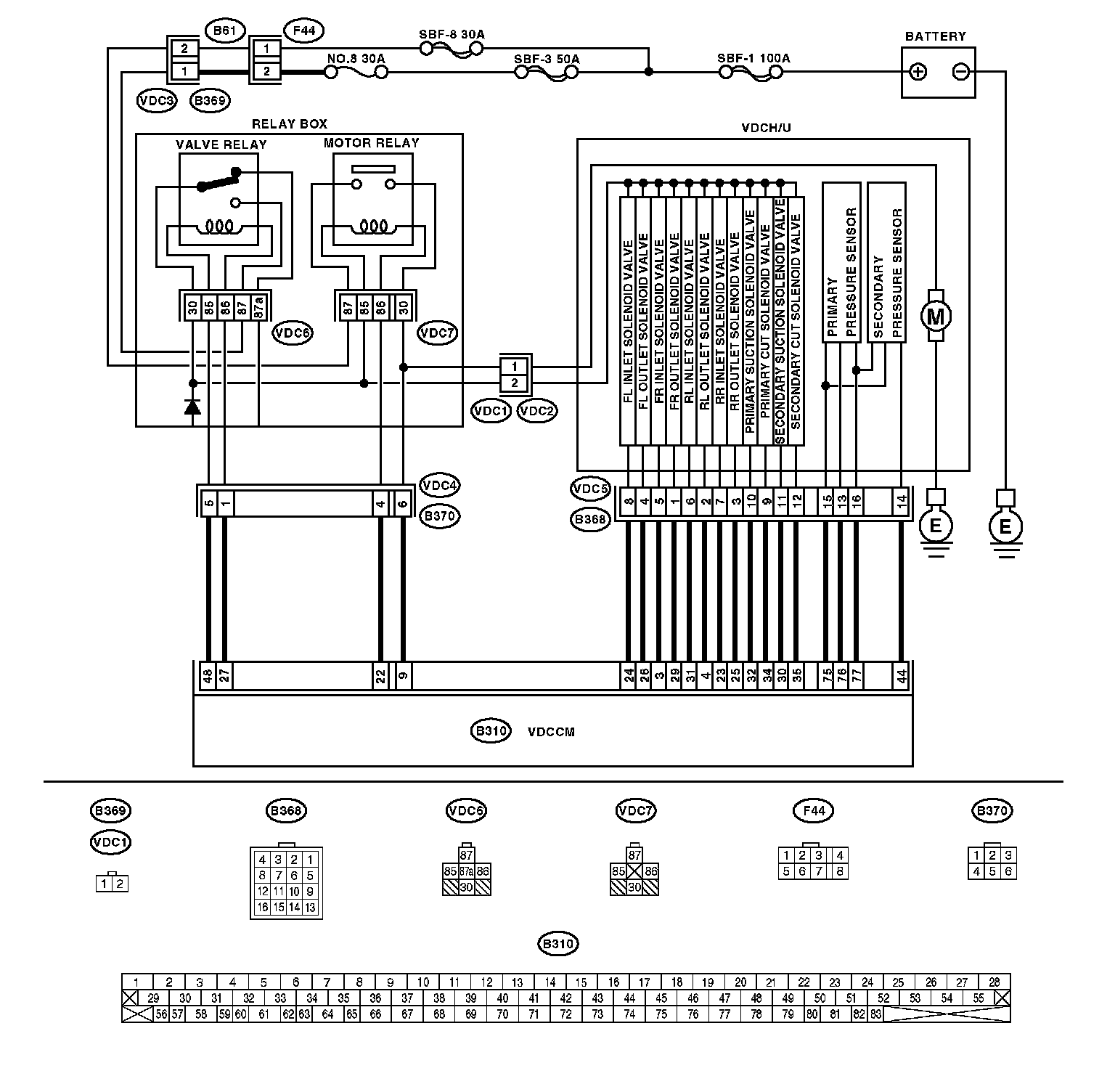

DTC 62 VDC SWITCHING VALVE 1 (S)

DTC DETECTING CONDITION:
- Defective harness connector
- Defective VDCH/M solenoid valve

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.
- EBD does not operate.

NOTE: At this time, brake warning light comes on as well as ABS warning light.
