DTC 76

The content of this article/image reflects the changes identified in
TSB 18-98-06
Dated 01/18/06
And applies to 2005 Forester & Impreza

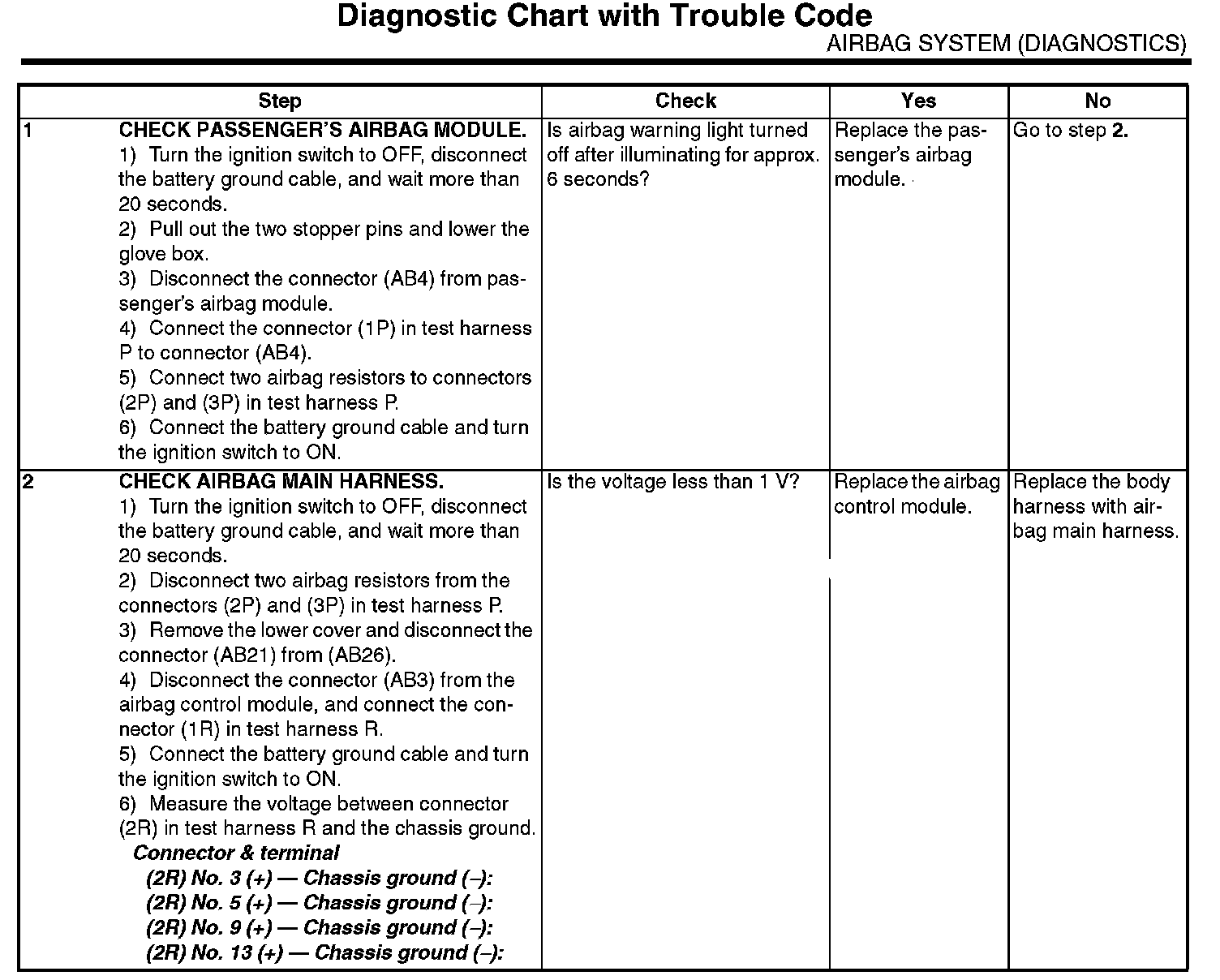

DTC 76

DETECTING CONDITION:
- Airbag main harness (Passenger) is shorted to the power supply.
- Airbag module harness (Passenger) is shorted to the power supply.
- Passenger's airbag module is faulty.
- Airbag control module is faulty.

CAUTION:
- Before diagnosing the airbag system, be sure to turn the ignition switch to OFF, disconnect the ground cable from the battery, and wait more than 20 seconds before starting to work.
- When inspecting the airbag main harness, disconnect the driver's airbag module and passenger's airbag module connectors for safety reasons.

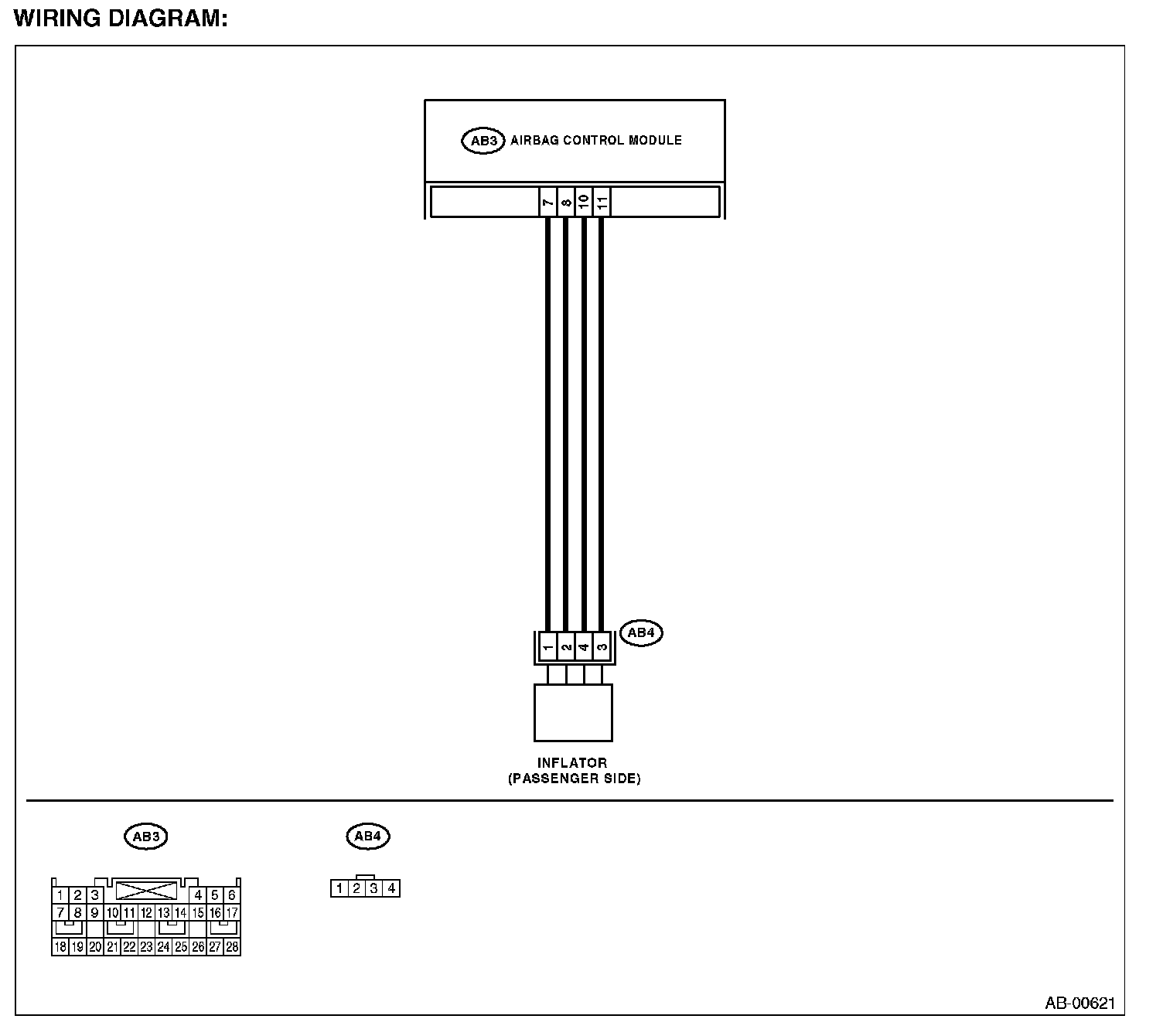

Wiring Diagram:
