P0705

DTC P0705 AT RANGE SWITCH SYSTEM CIRCUIT
DTC DETECTING CONDITION:
- There is malfunction in inhibitor switch.
- The input signal circuit of inhibitor switch is open or shorted.

TROUBLE SYMPTOM:
- Shift characteristics are erroneous.
- Engine brake is not effected when select lever is in "3" range.
- Engine brake is not effected when select lever is in "2" range.
- Engine brake is not effected when select lever is in "1" range.

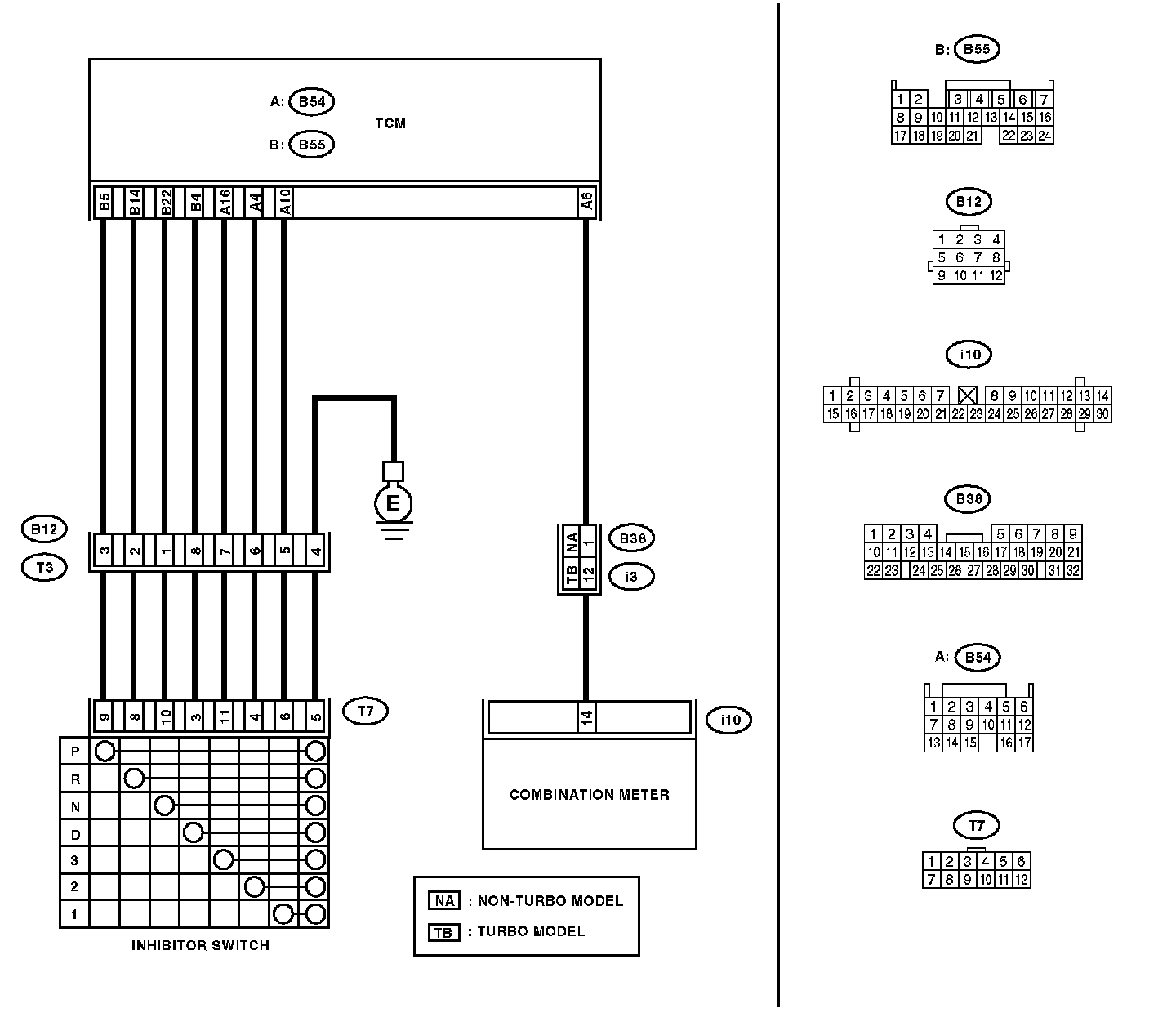

WIRING DIAGRAM
