P1572

DTC P1572 IMM CIRCUIT FAILURE (EXCEPT ANTENNA CIRCUIT)

DTC DETECTING CONDITION:

Communication failure between IMM ECM and ECM


Wiring Diagram:






Step 1 - 7:

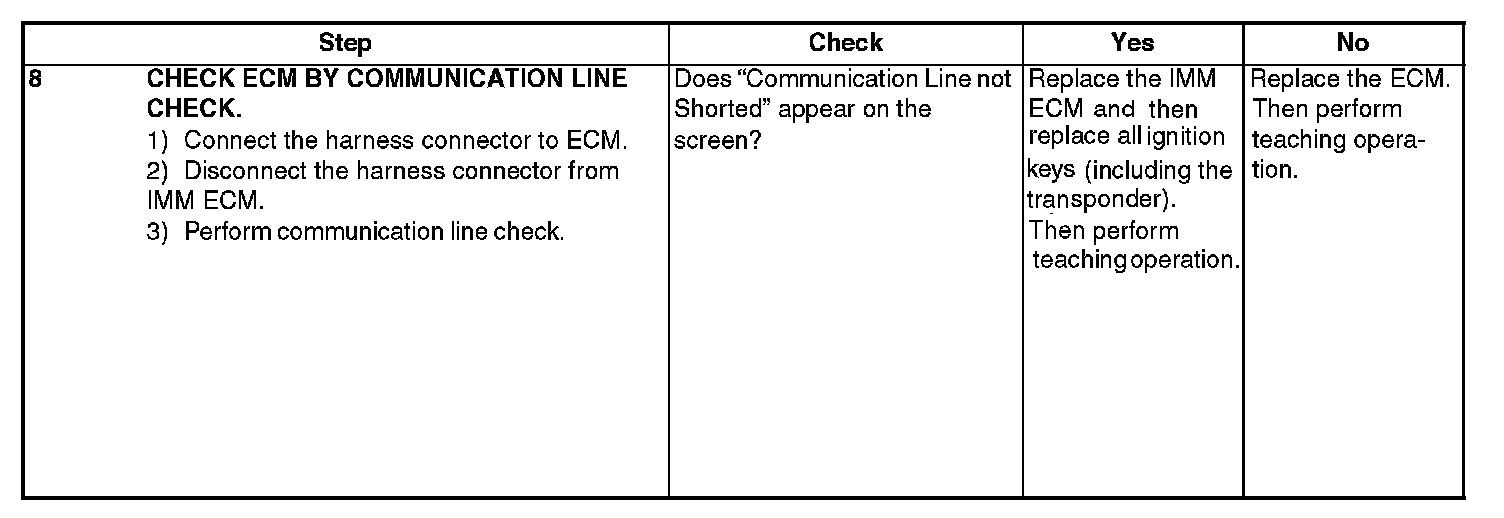

Step 8:
