B3-B377 & AB18
B3-B377 & AB18
Bulkhead Wiring Harness (In Engine Compartment)
B3-B377:

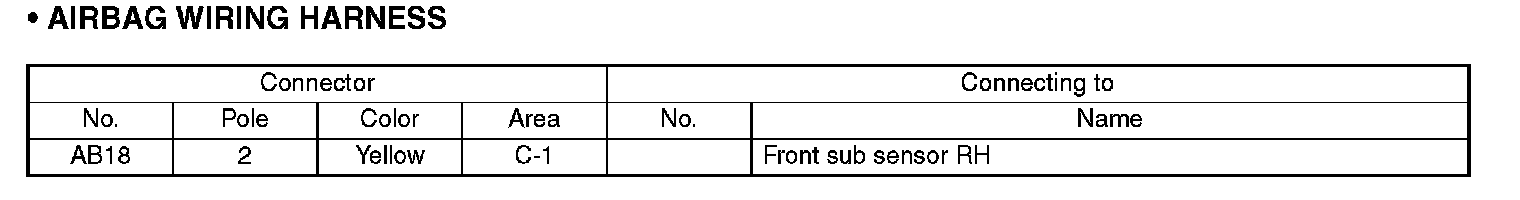

AB18:

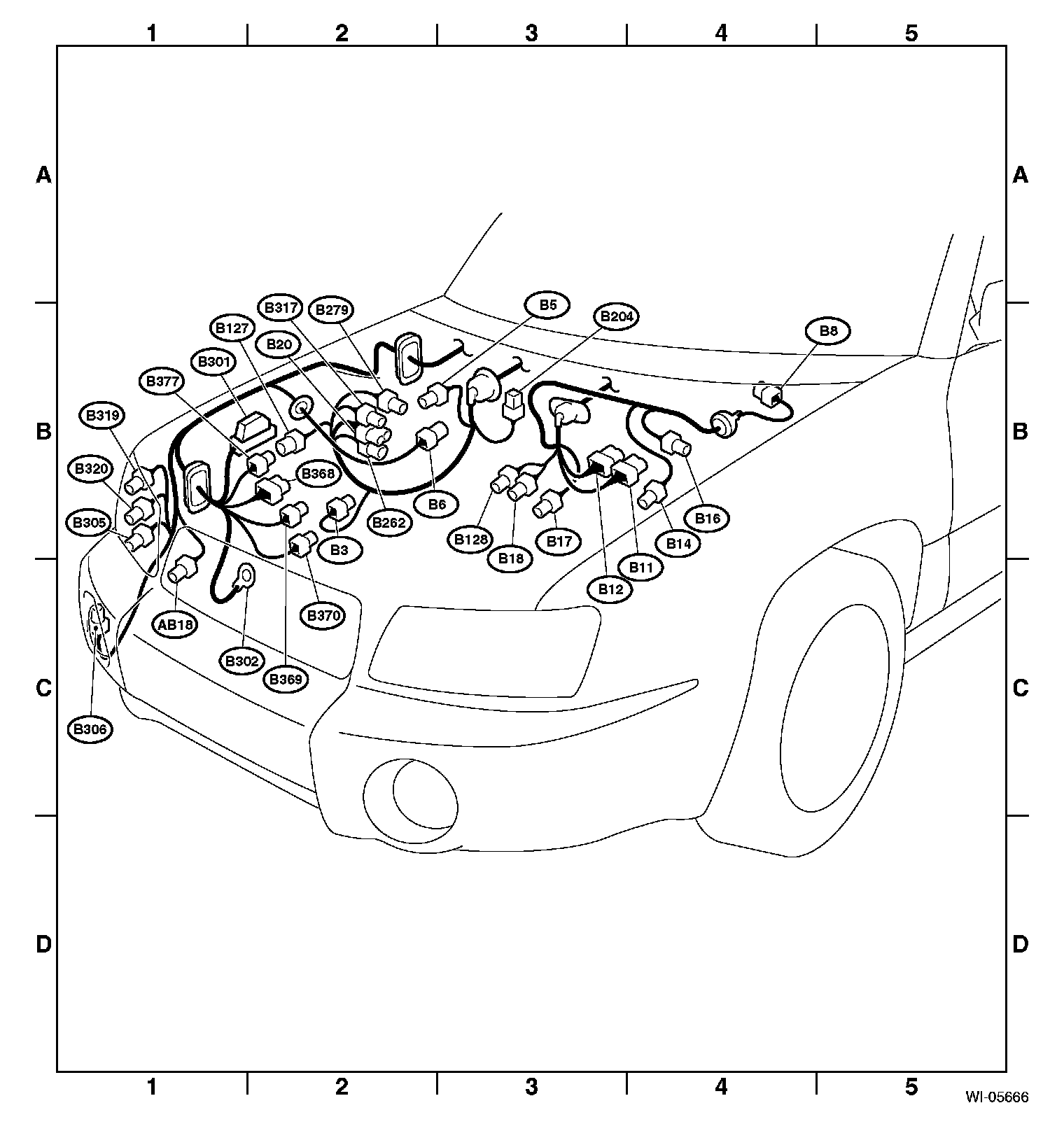

Area View:
