Computers and Control Systems: Locations

ENGINE




Control Module

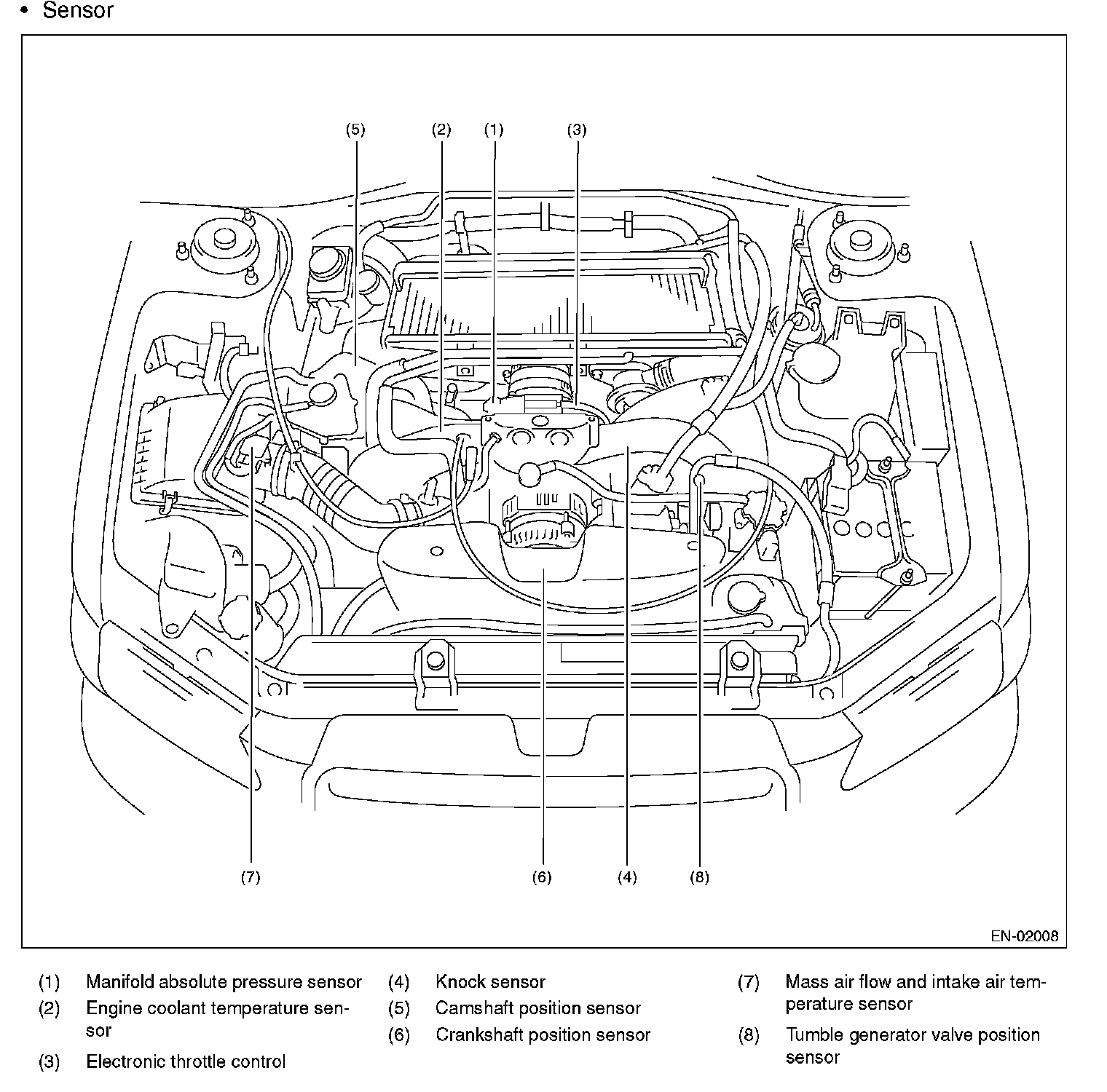

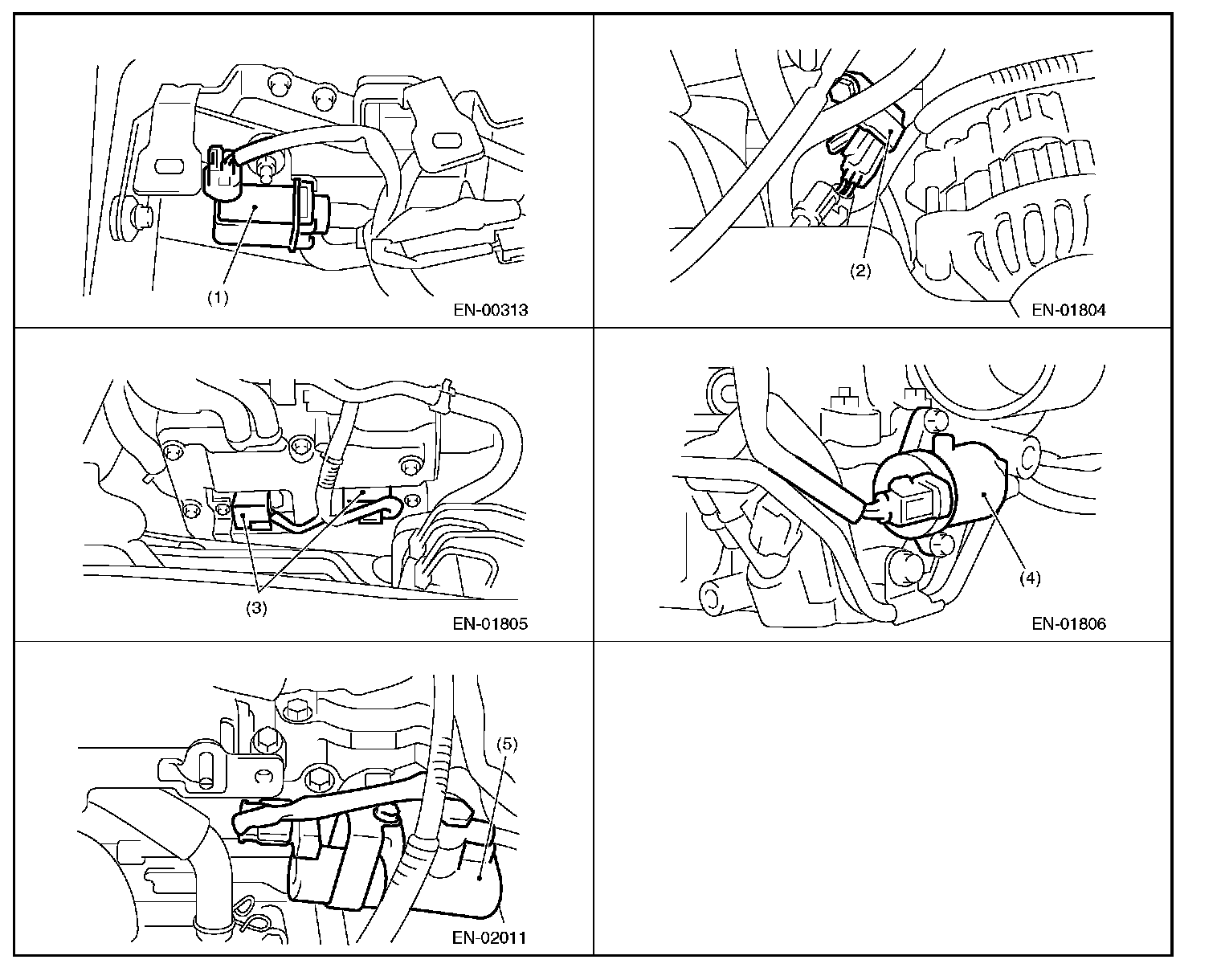

Sensor

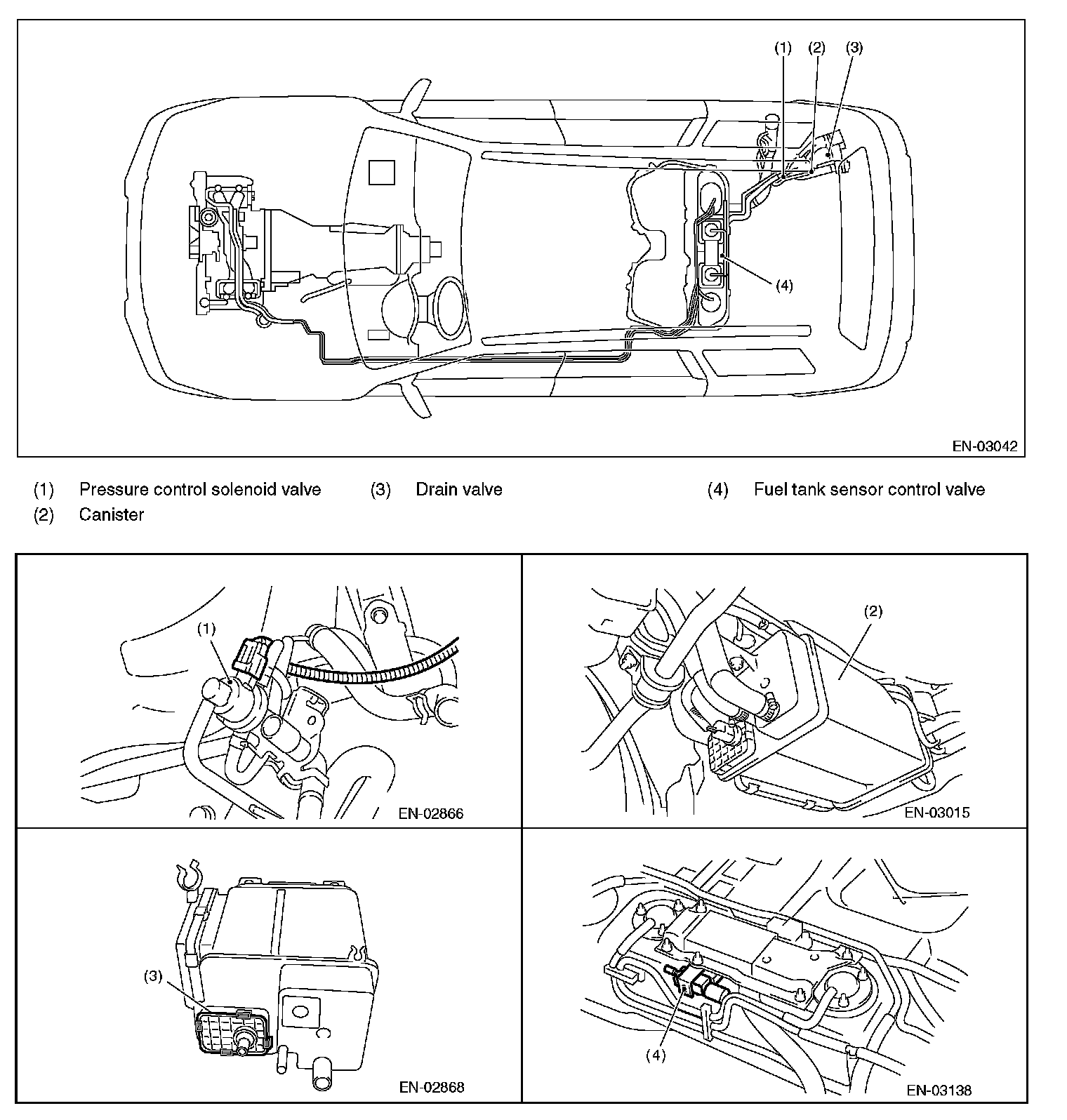

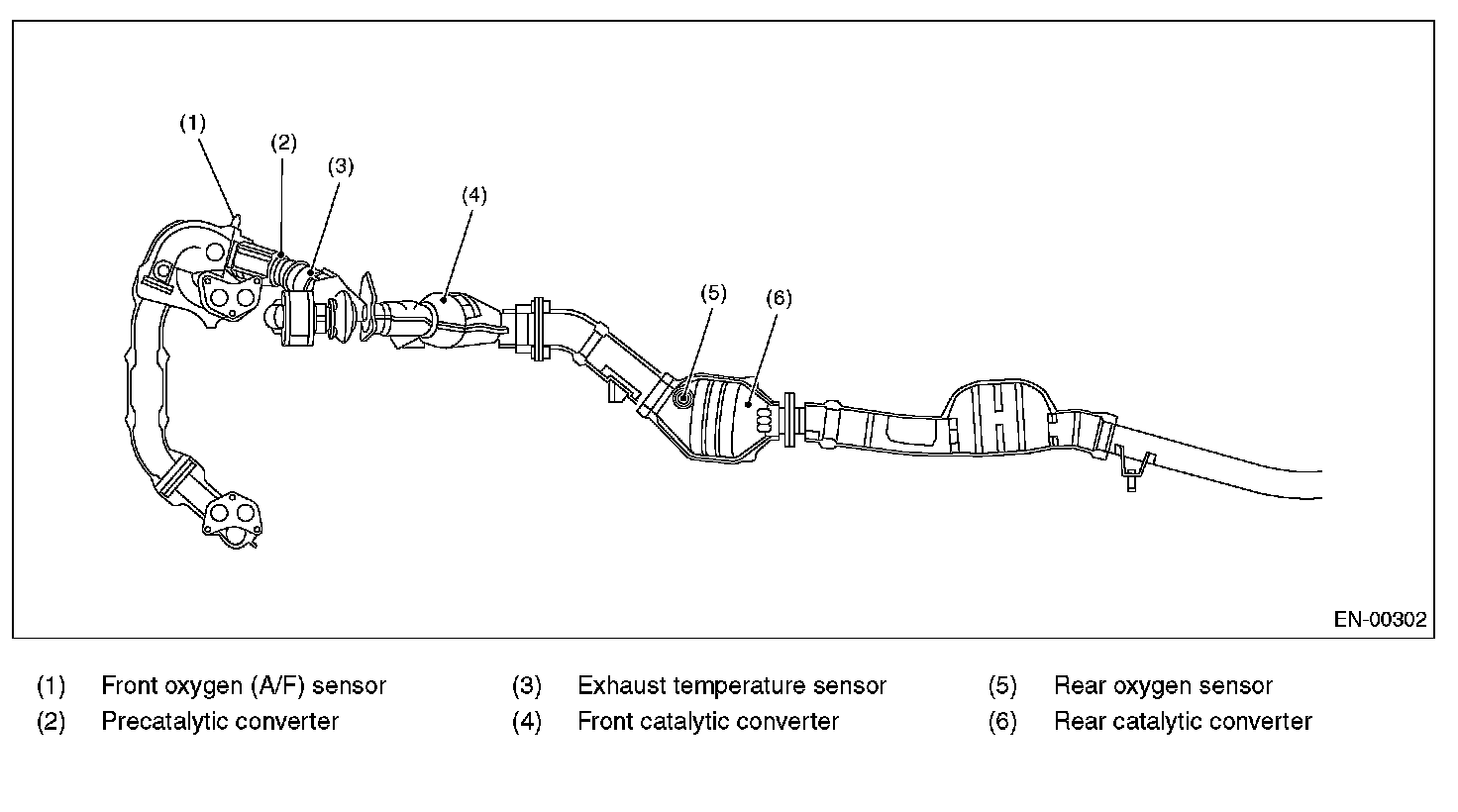

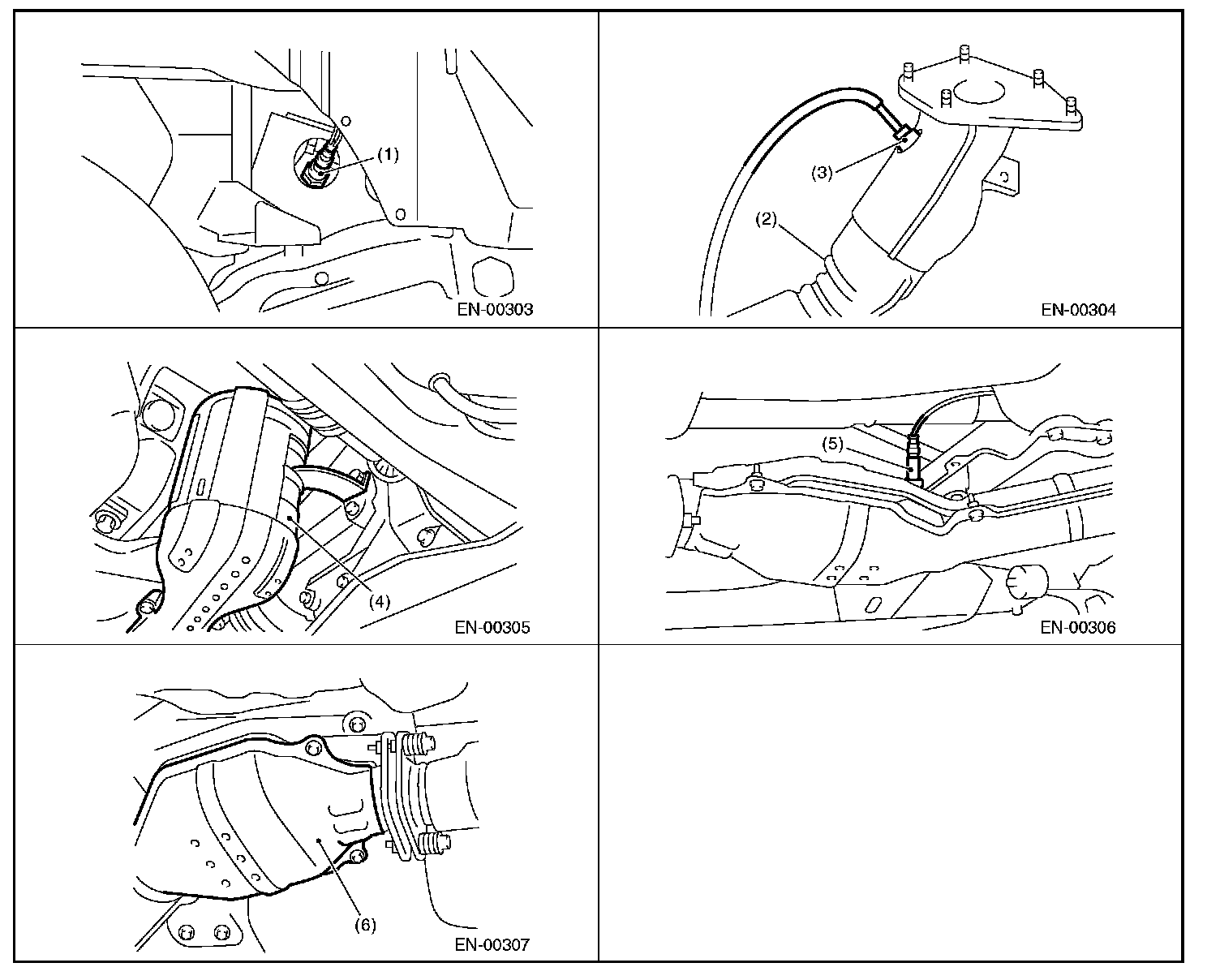

Solenoid valve, actuator, emission control system parts and ignition system parts
