Air Bag - Diagnostic Connector

SOURCE: Subaru Tech Tips

TITLE: Diagnostic Connector Location

APPLIES TO: 05 Forester

SERVICE TIP:

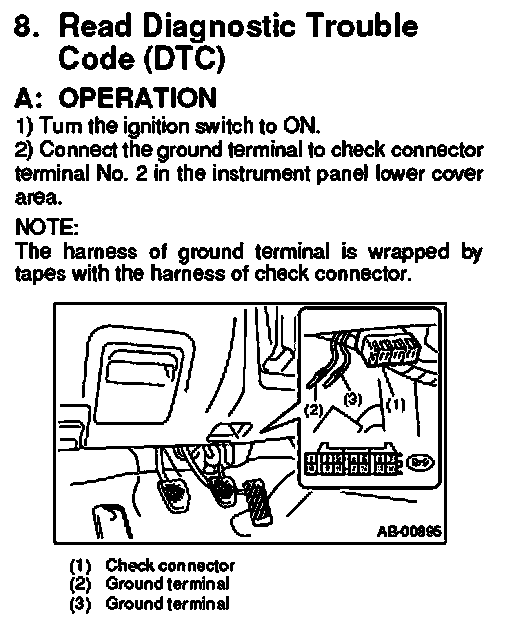

If you have a 2005MY Forester come in with an SRS light on and you go to pull codes, you'll find that Diagnostic Connector B82 is not there. Some of you have already discovered this. The connector you need to locate is B79, which is a 14 pin gray connector found in the same location. The diagnostic pins you need are now located in this connector.
