Diagram Information and Instructions
>>
OE Harness Connector Repair Kits
OE Harness Connector Repair Kits
Harness Repair Kit
Specification
B3-B12:

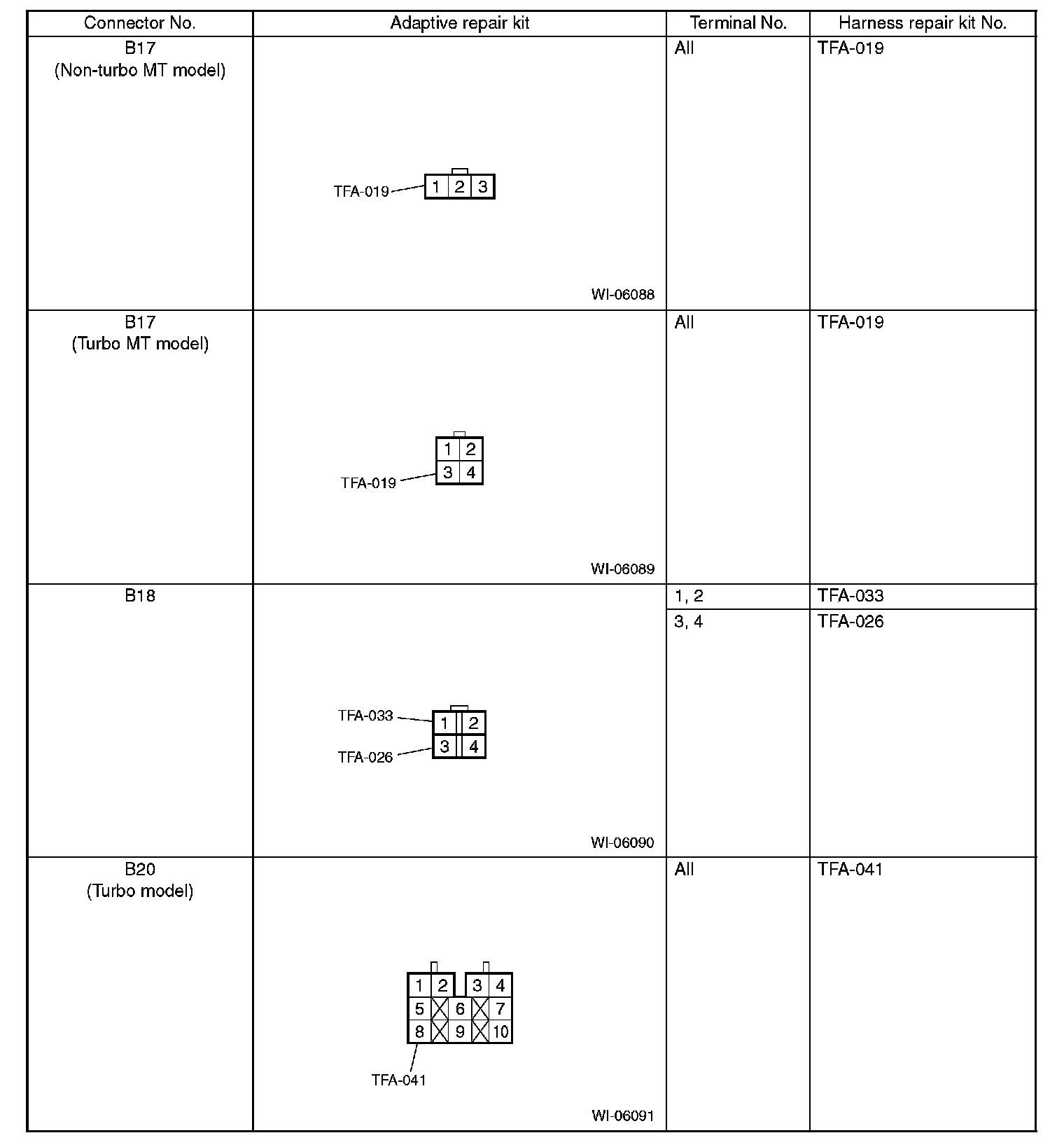

B17-B20:

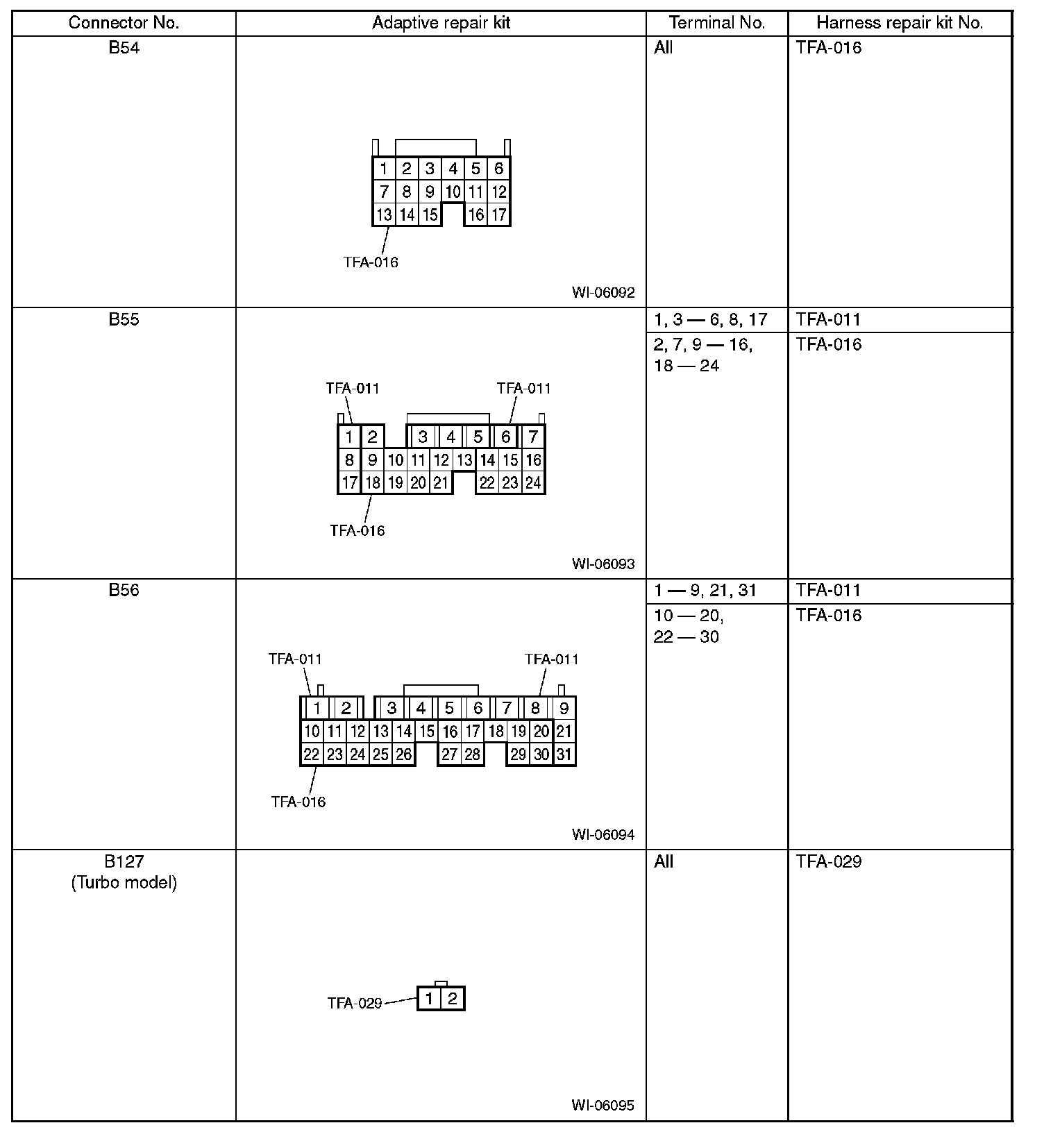

B54-B127:
B128-B136:

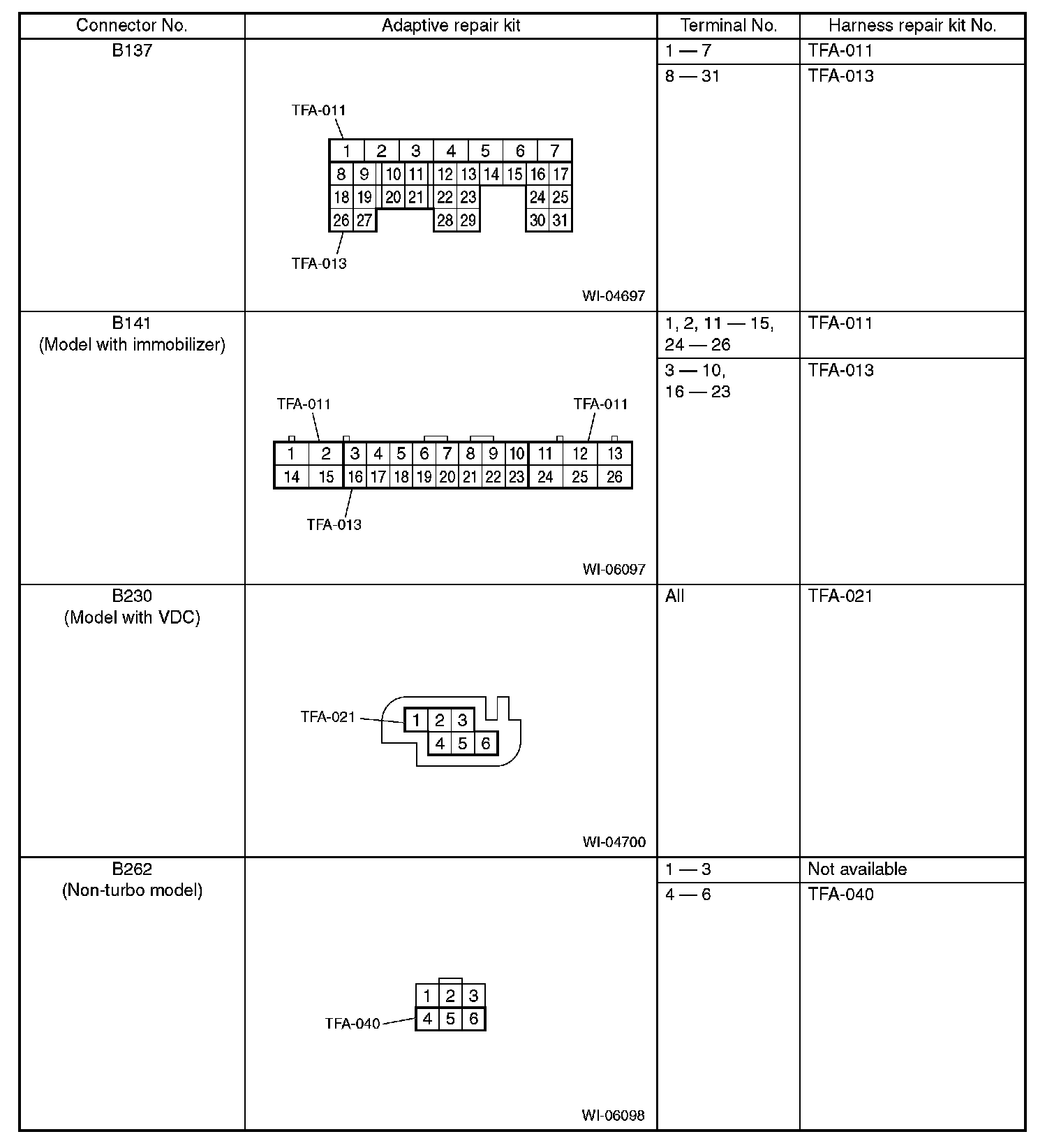

B137-B262:

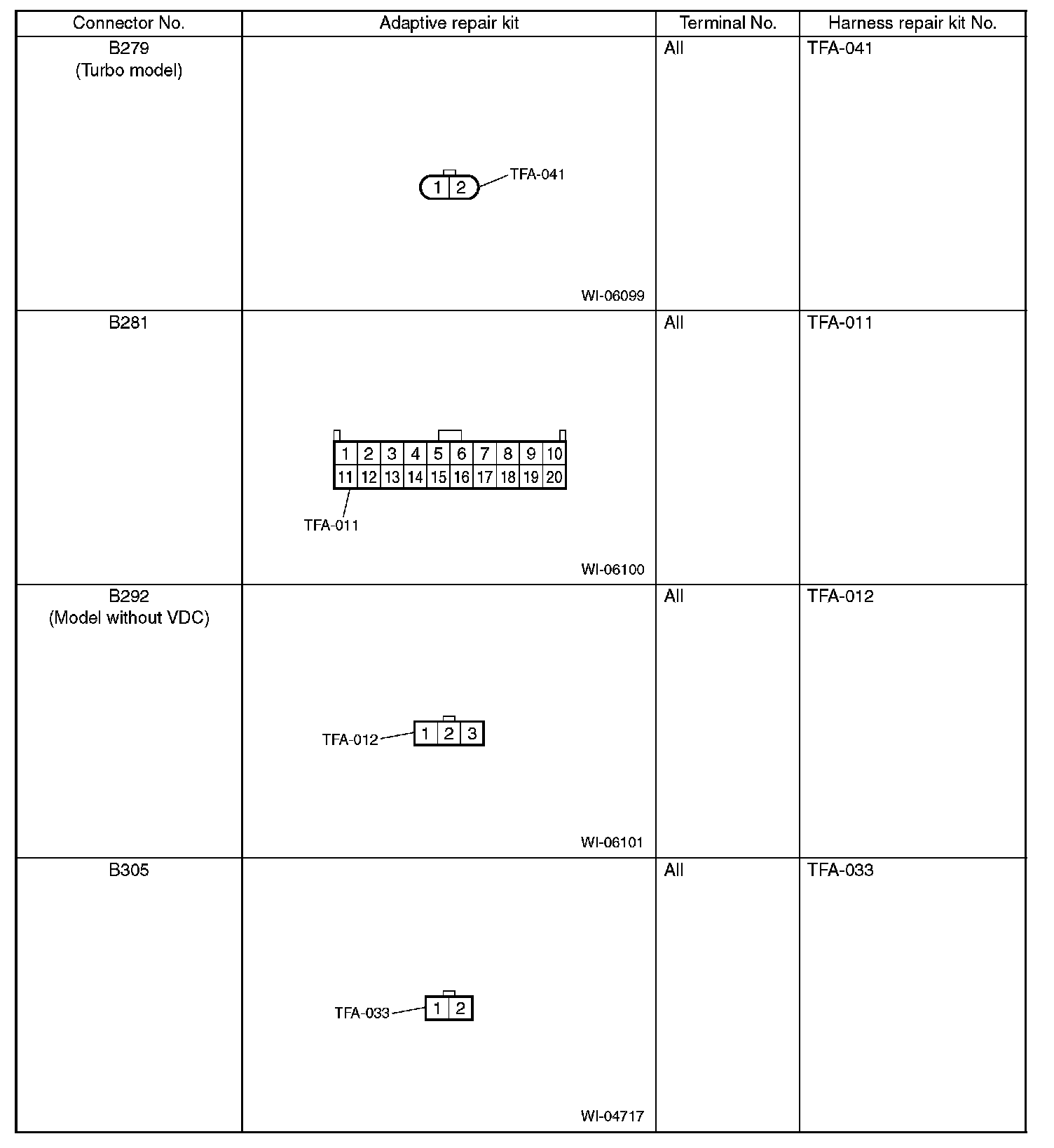

B279-B305:
B306-F24:
F26-F78:

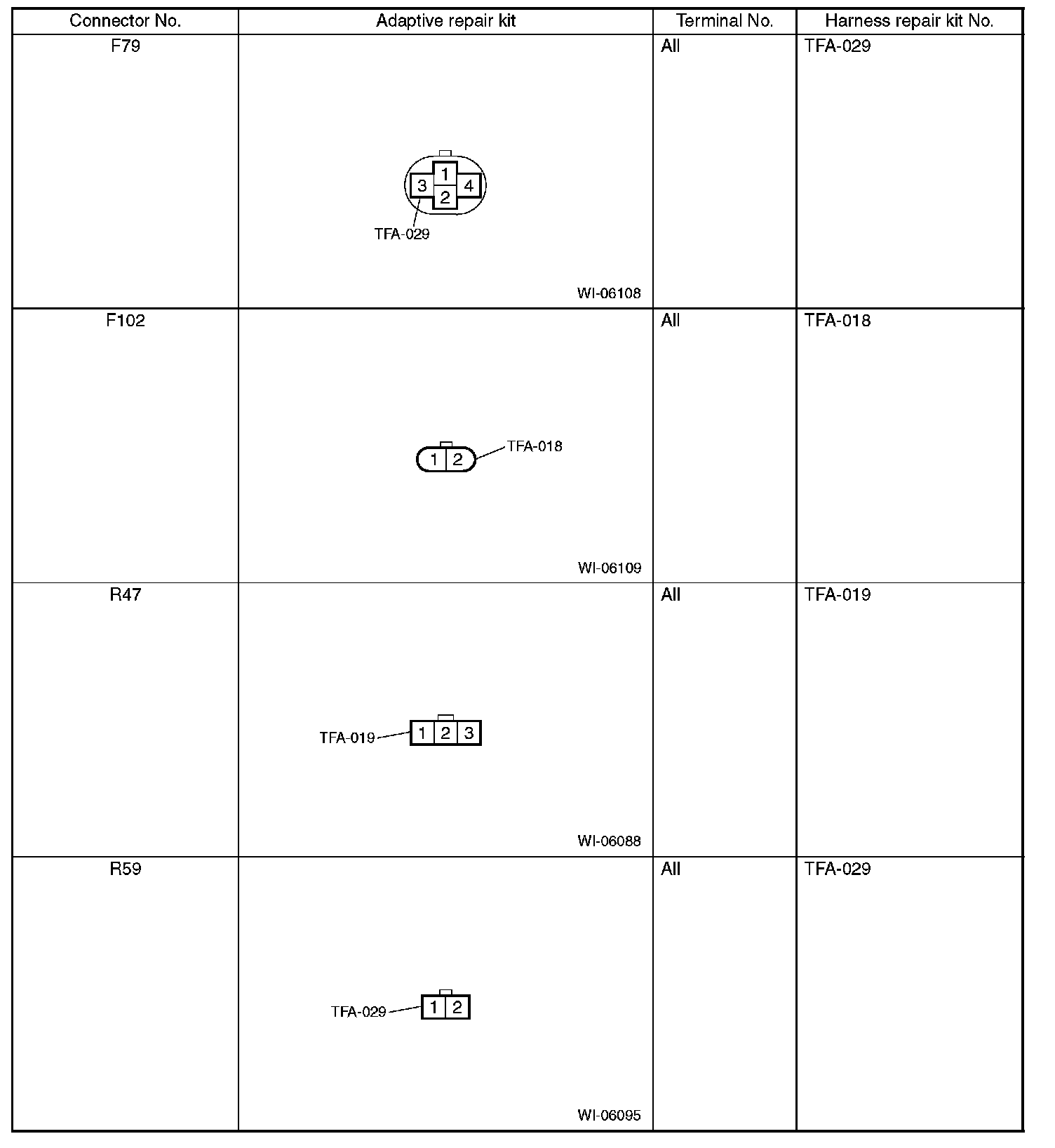

F79-R59:

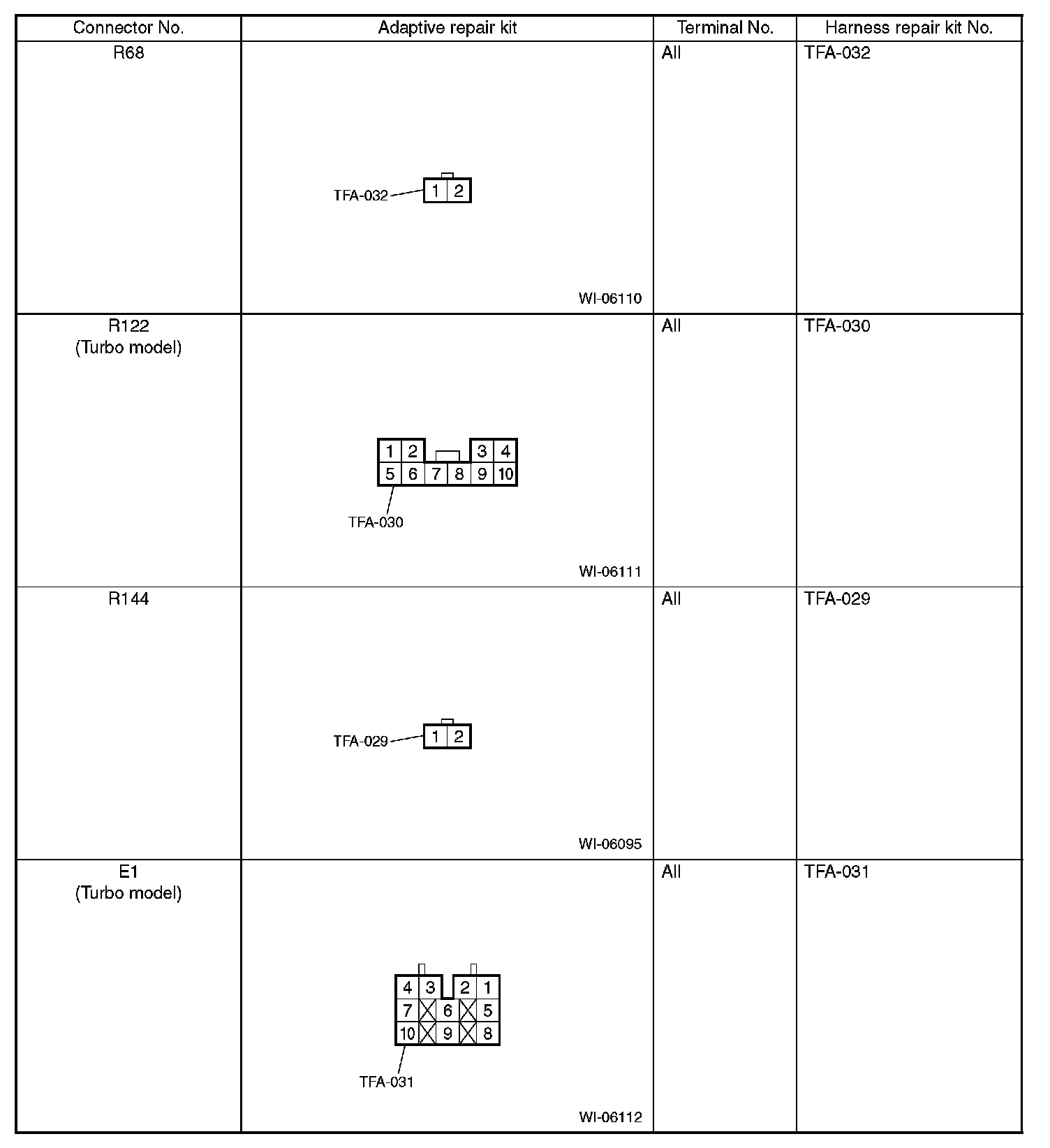

R68-E1:

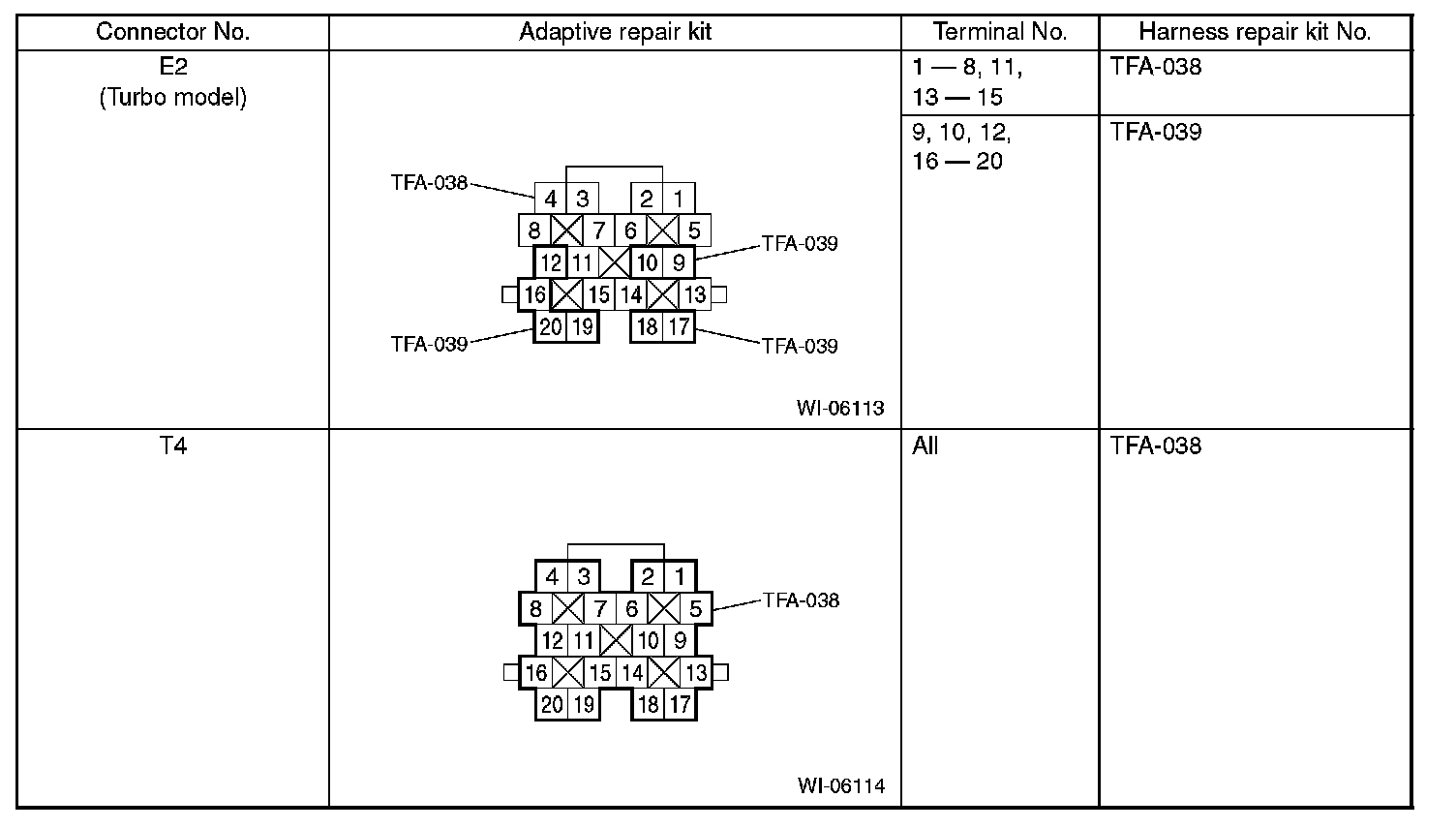

E2-T4:
