Computers and Control Systems: Locations

ENGINE

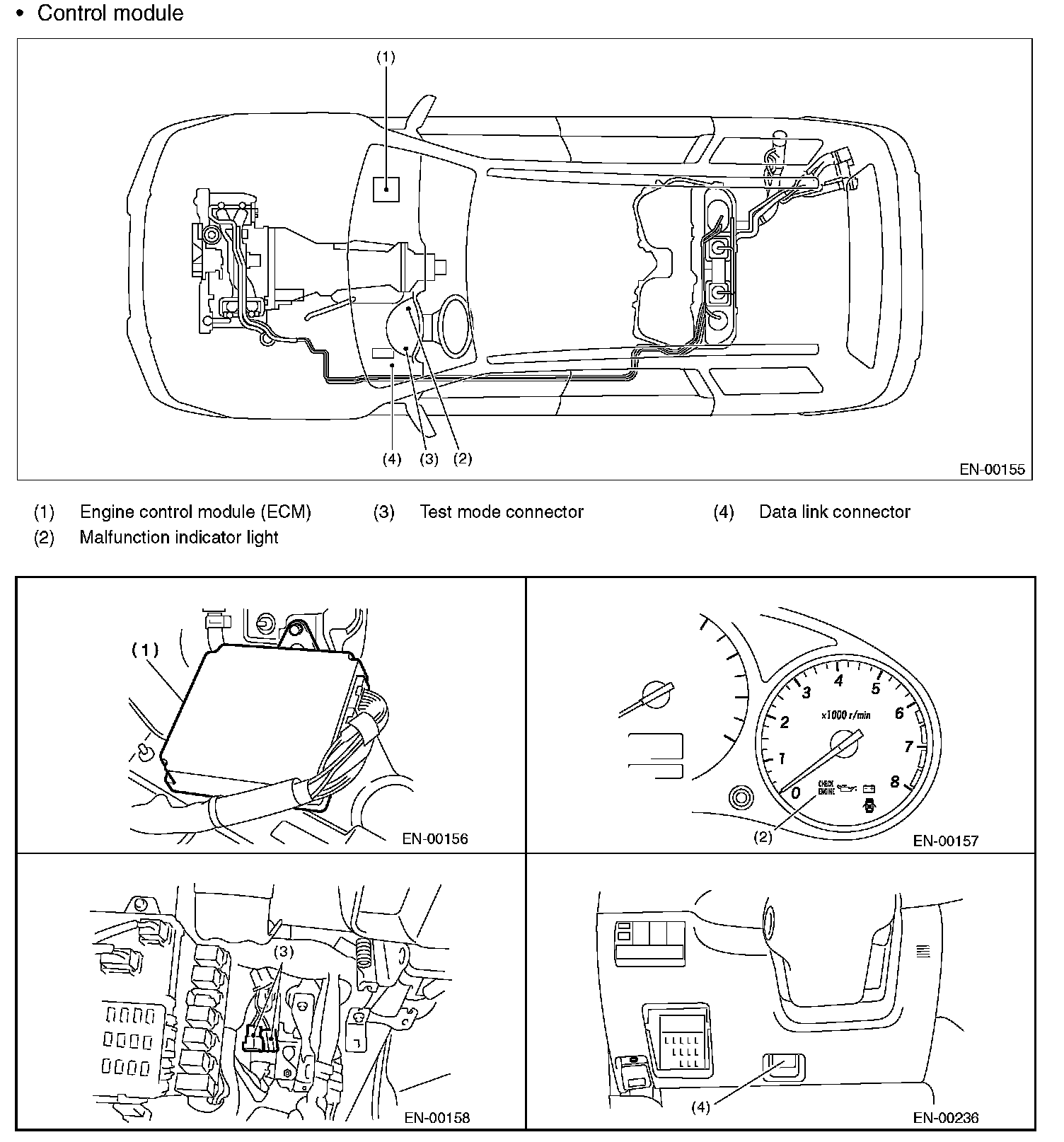

Control Module

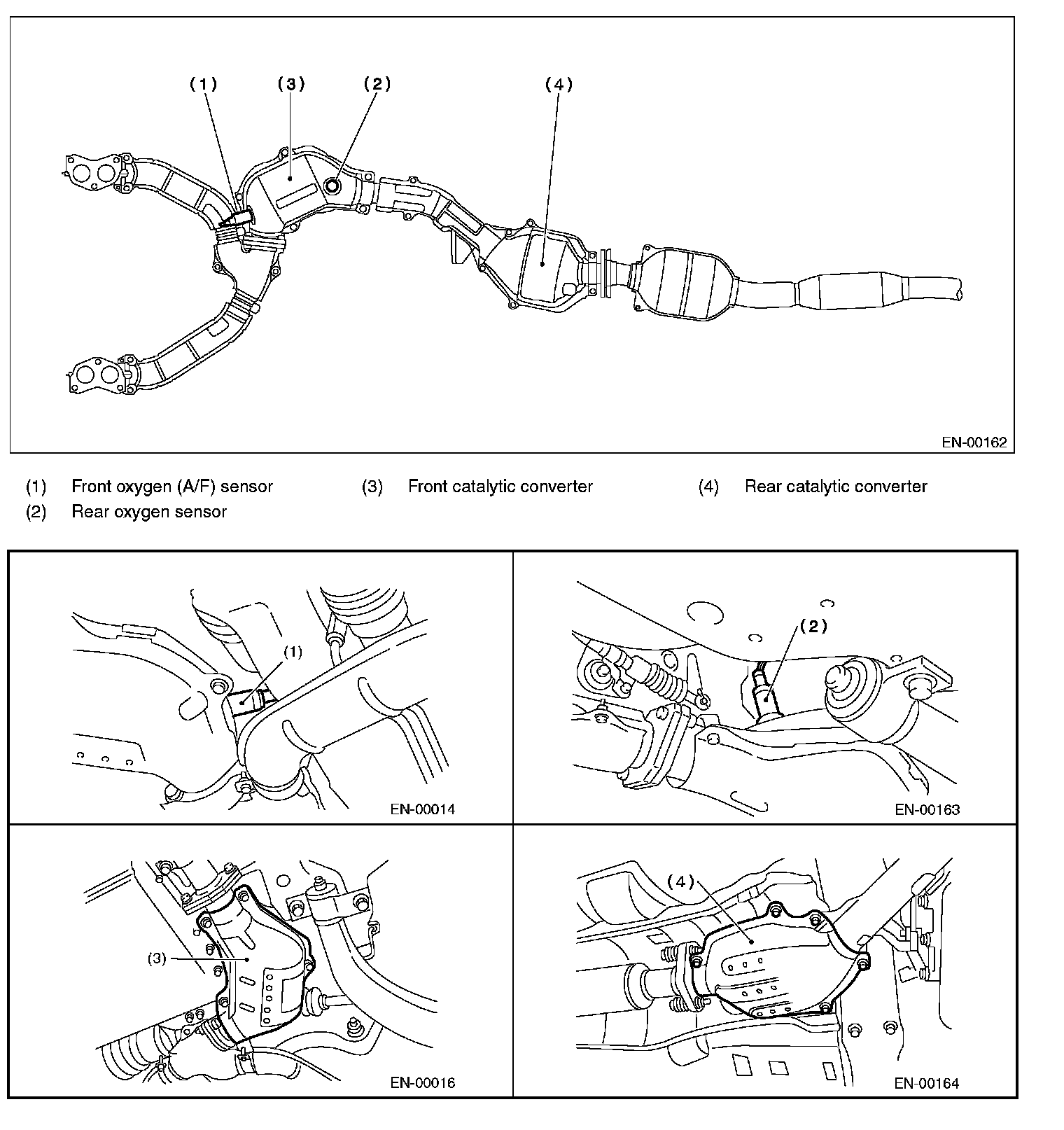

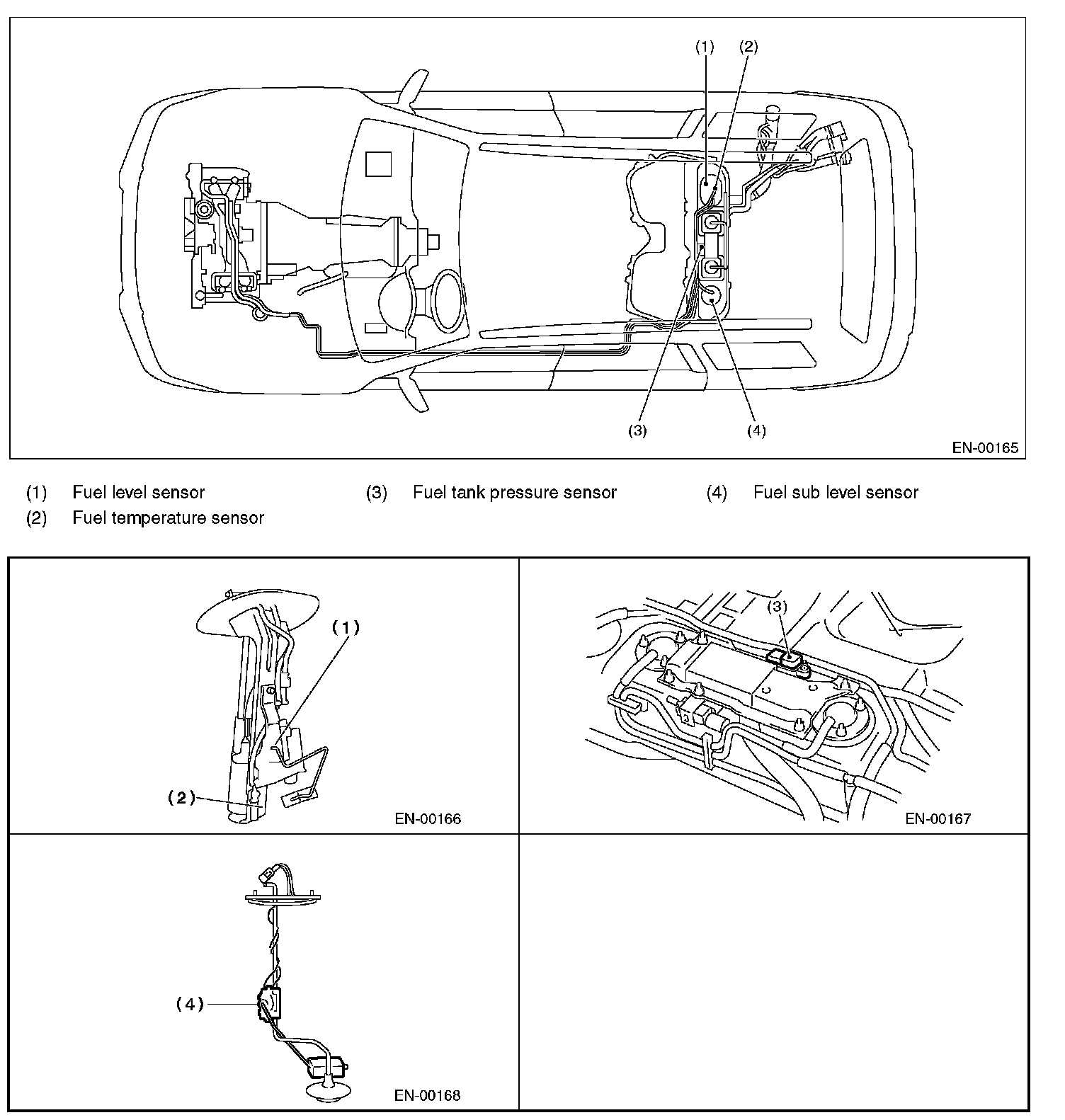

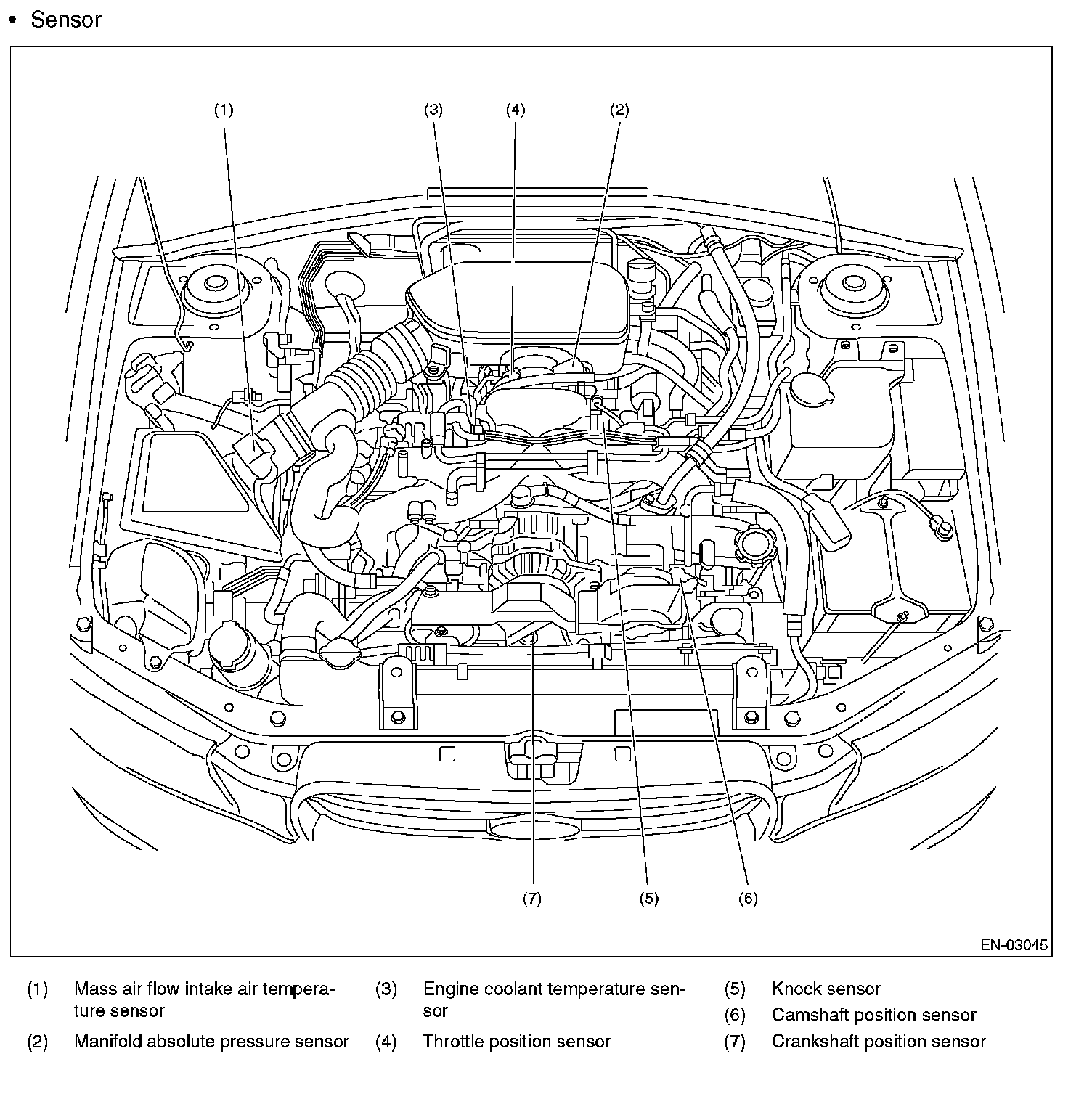

Sensor

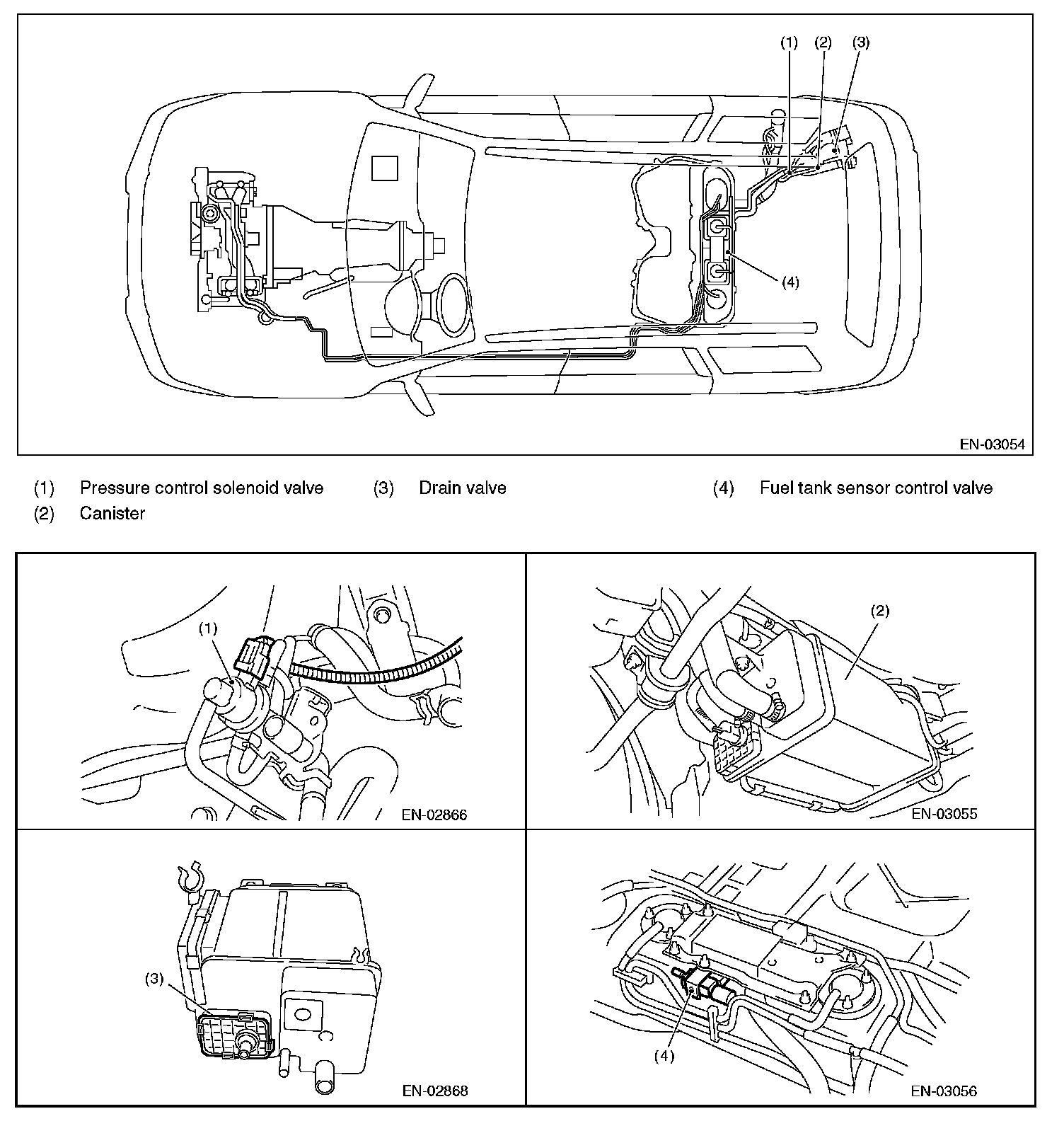

Solenoid valve, emission control system parts and ignition system parts
