Outer Mirror Assembly
Outer Mirror AssemblyREMOVAL
1. Remove the door trim.

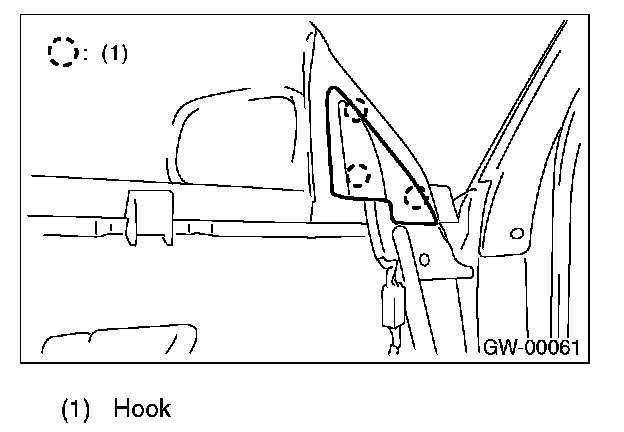

2. Remove the mirror gusset cover.
3. Disconnect the mirror connector.
4. Remove the screws to remove the mirror assembly.
INSTALLATION
Install in the reverse order of removal.
