Home >> Subaru >> 2005 >> Impreza F4-2.5L SOHC >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations

Seats: Locations

Front Seat:

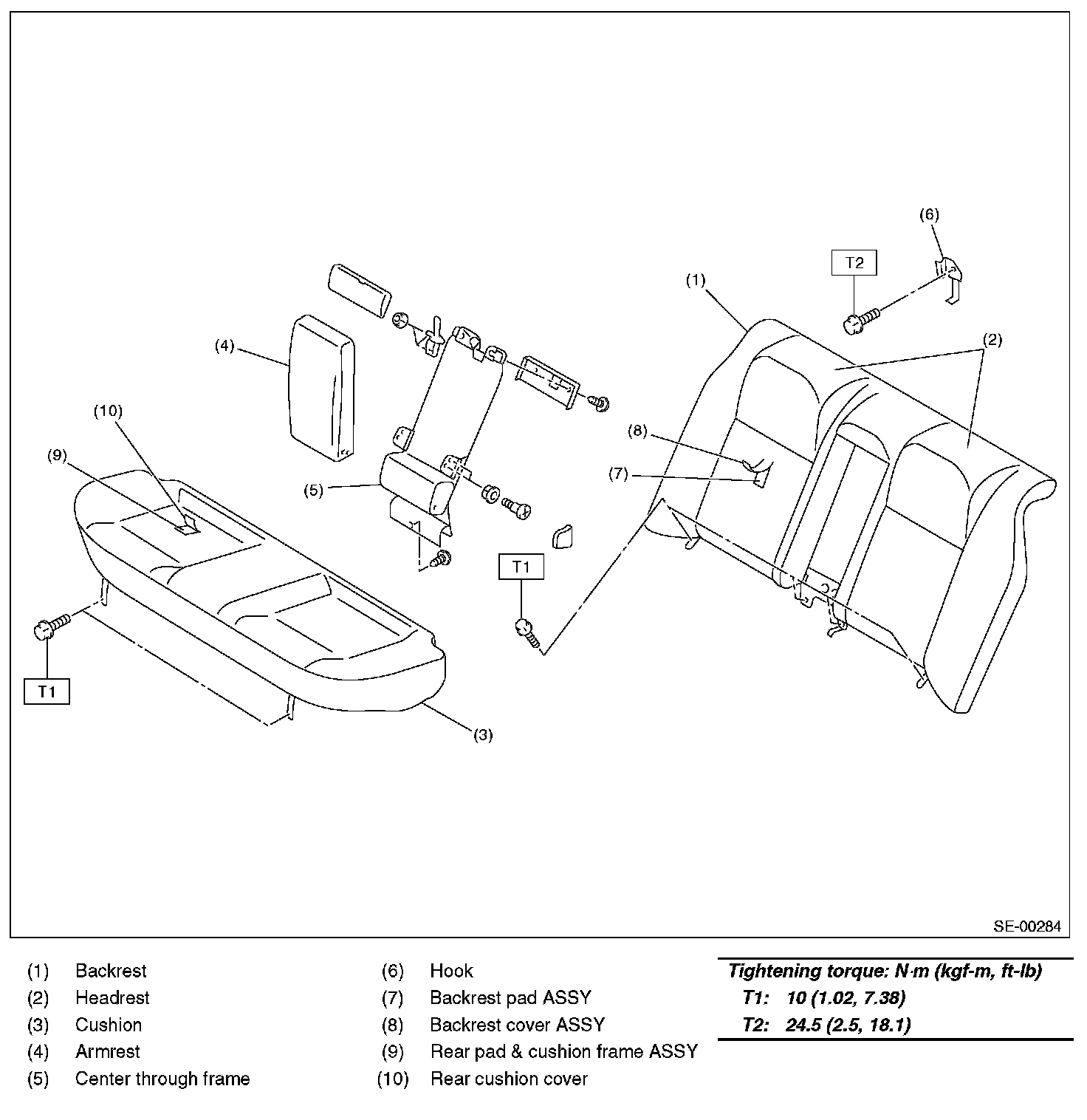

Rear Seat (Sedan Model):

Rear Seat (Wagon Model):
