Home >> Subaru >> 2005 >> Impreza F4-2.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> S/HEAT(ST)-01

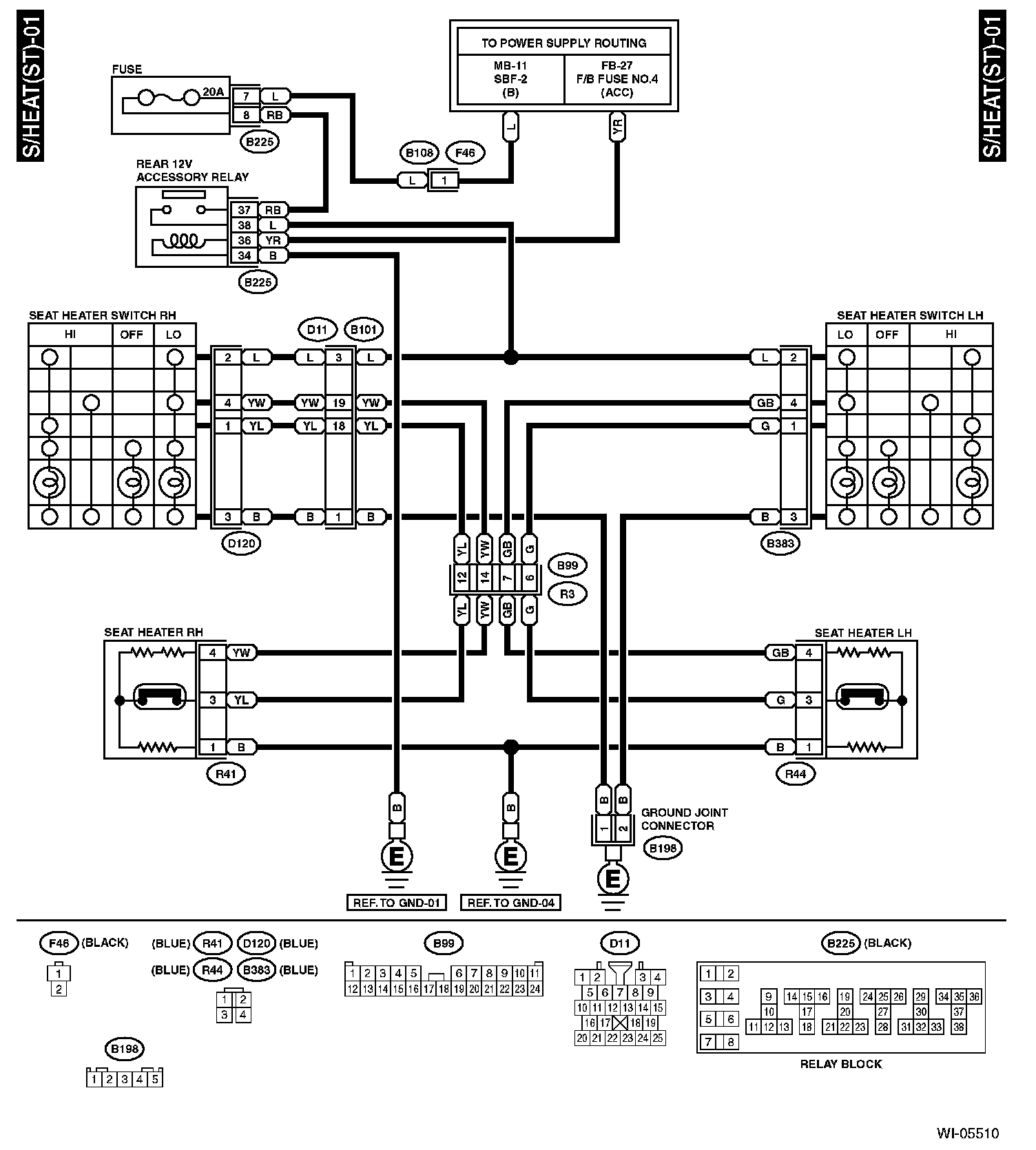

S/HEAT(ST)-01

S/HEAT(ST)-01:
