Disassembly and Assembly

DISASSEMBLY

1. EXCEPT STi MODEL

CAUTION: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

1. Disengage the claw (F) to remove the inner case (B) from back cover (A).




2. Disengage the claw (G) to remove the meter glass (E), reflector (D), and window plate (C) from inner case (B).

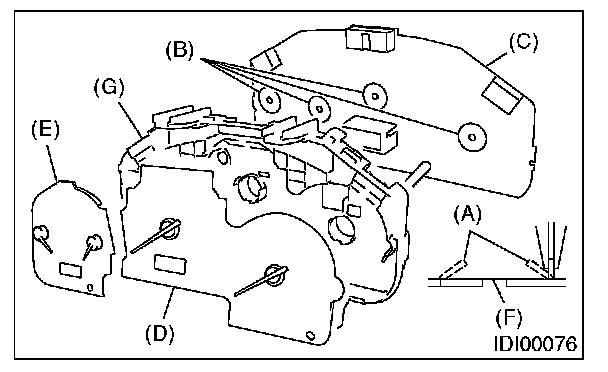

3. Pull up the claw (A) in portion (B) of combination meter printed circuit (C) with combination pliers. Push out the speedometer and tachometer assembly (D) and fuel gauge and water temperature gauge assembly (E) using hole (F).




4. Pull up the claw in center of combination meter printed circuit (C), and remove the printed circuit from case (G).

2. STi MODEL

CAUTION:
- Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
- Do not disassemble the meter main assembly for STi model.

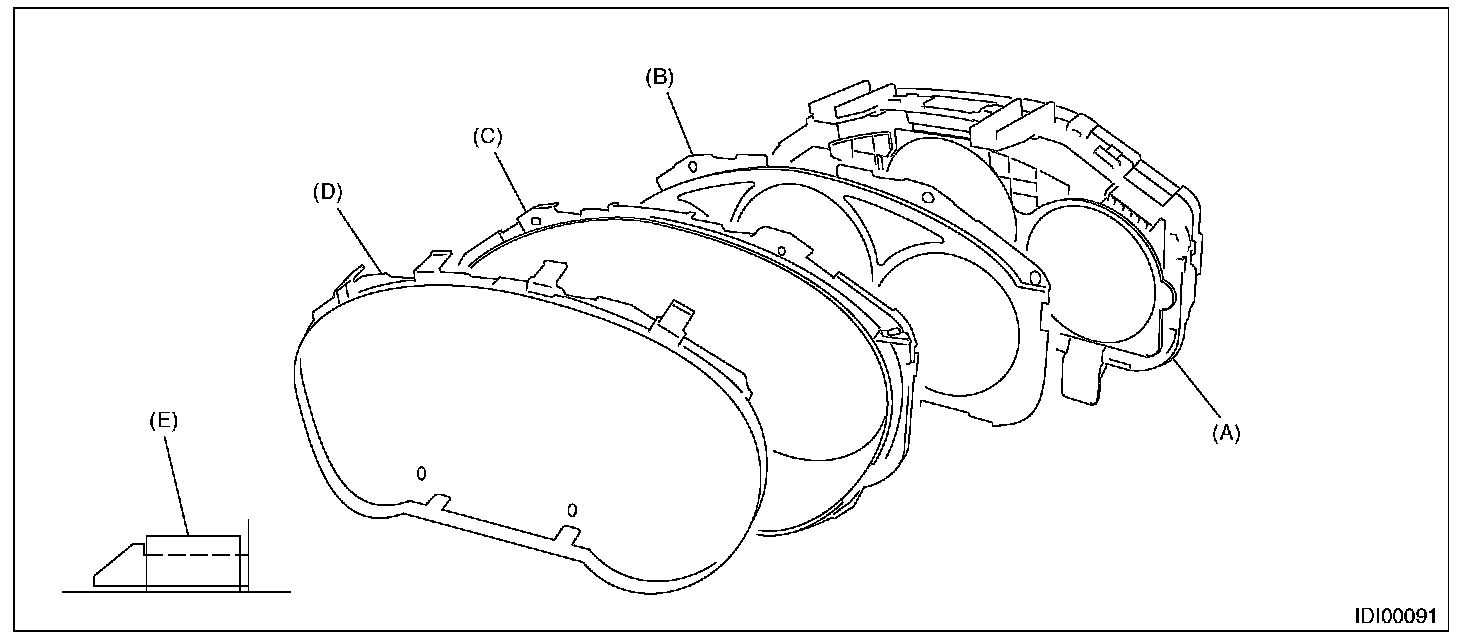

Disengage the claw (E) to remove the meter glass (D), reflector (C), and window plate (B) from meter main assembly (A).

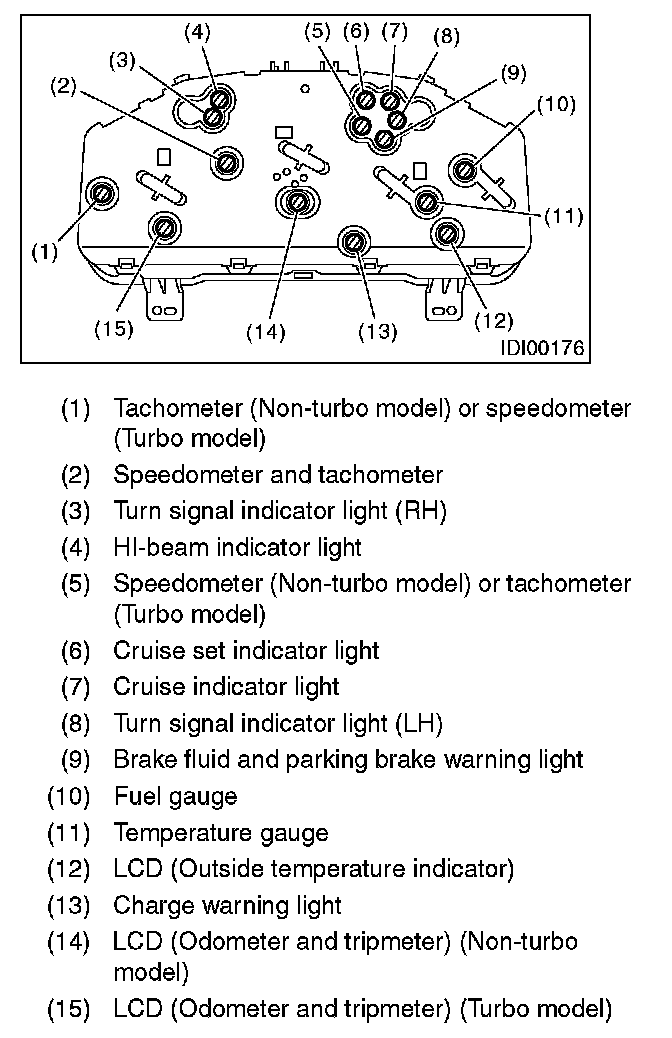

3. BULB REPLACEMENT




- EXCEPT STi MODEL

- STi MODEL
Replace the meter main assembly of STi model if it does not function properly, because the warning light and indicator light are made from LED.

ASSEMBLY
Assemble in the reverse order of disassembly.
