Courtesy Lamp: Testing and Inspection
INSPECTION1. ROOM LIGHT BULB
1. Visually check the bulb for blow out.
2. Check the bulb specification.
3. If NG, replace the bulb with a new one.
2. ROOM LIGHT SWITCH

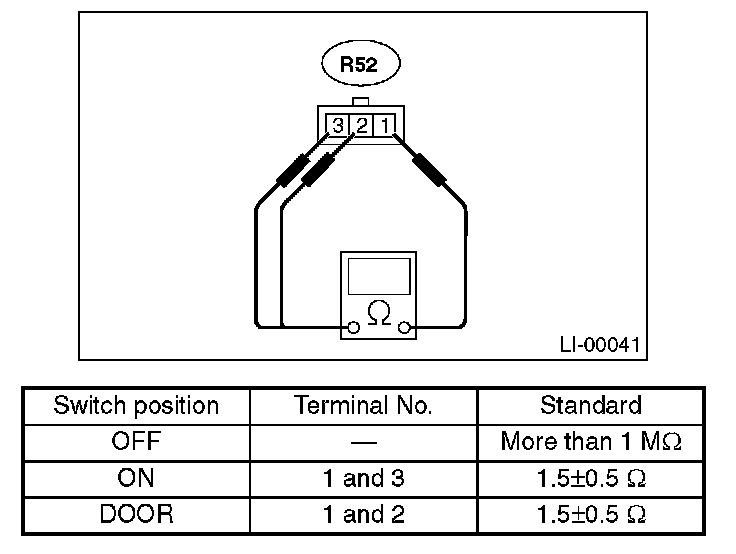

Measure the resistance between room light terminals.
