Headlamp: Service and Repair

HEADLIGHT ASSEMBLY

REMOVAL
1. Disconnect the ground cable from battery.

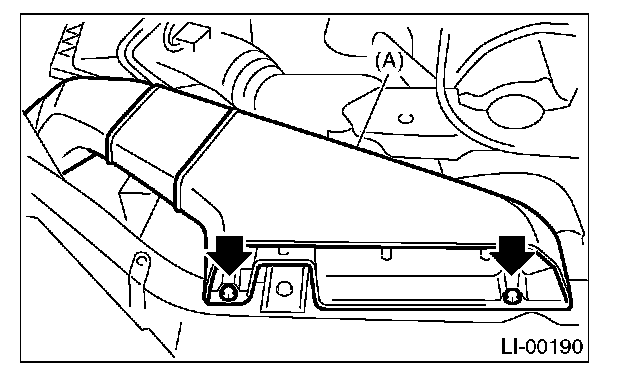

2. Remove the duct (A) (when right side headlight is removed).
3. Remove the front grille and bumper upper clips.
4. Disconnect each harness connector.




5. Remove the three bolts and disengage the clips, and then detach the headlight assembly.

INSTALLATION
Install in the reverse order of removal.
