DTC 51

DTC 51 VALVE RELAY MALFUNCTION

DIAGNOSIS:
Faulty valve relay

TROUBLE SYMPTOM:
- ABS does not operate.
- EBD does not operate.

NOTE: In addition to the ABS warning light, brake warning light illuminates.

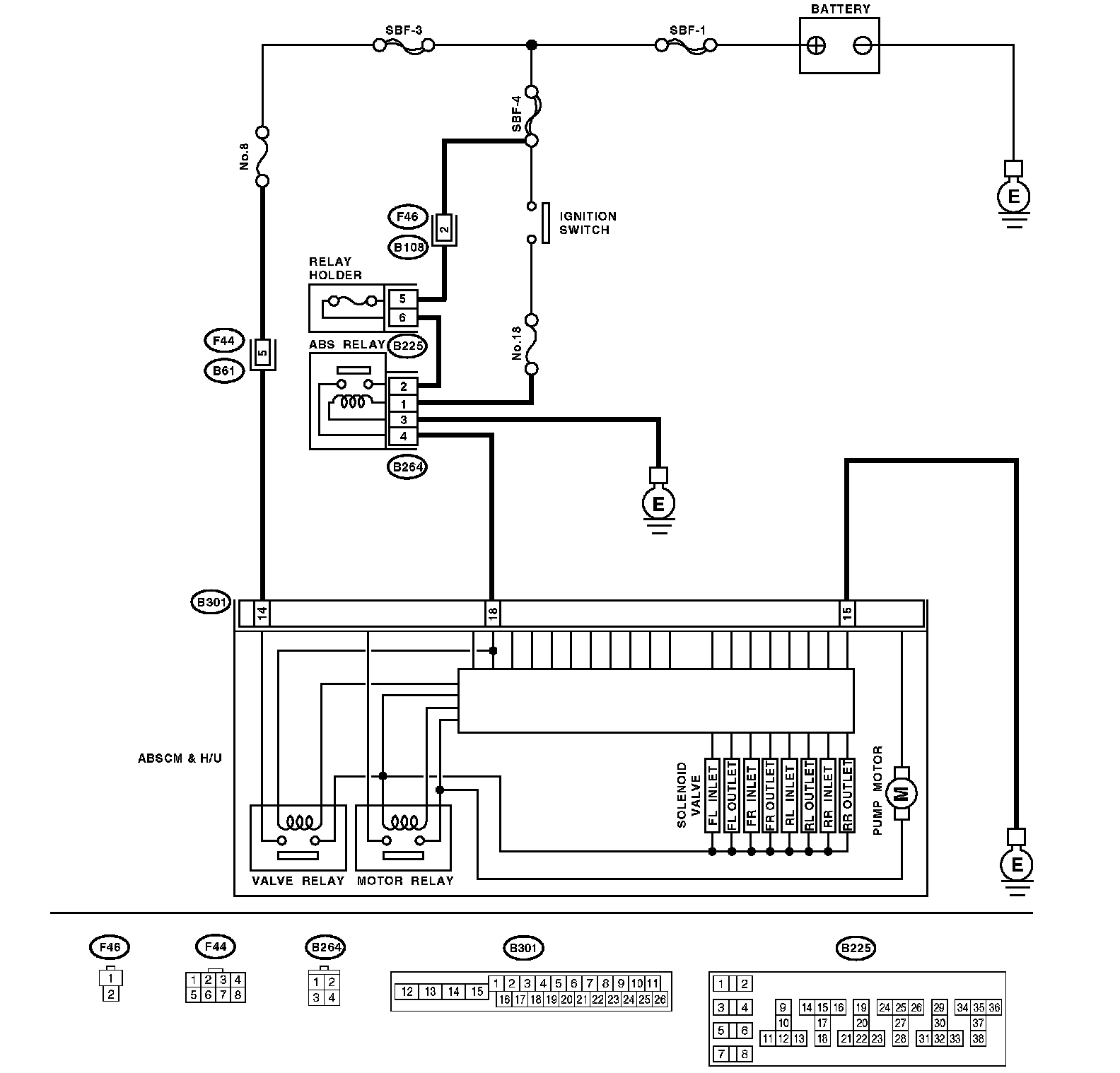

WIRING DIAGRAM

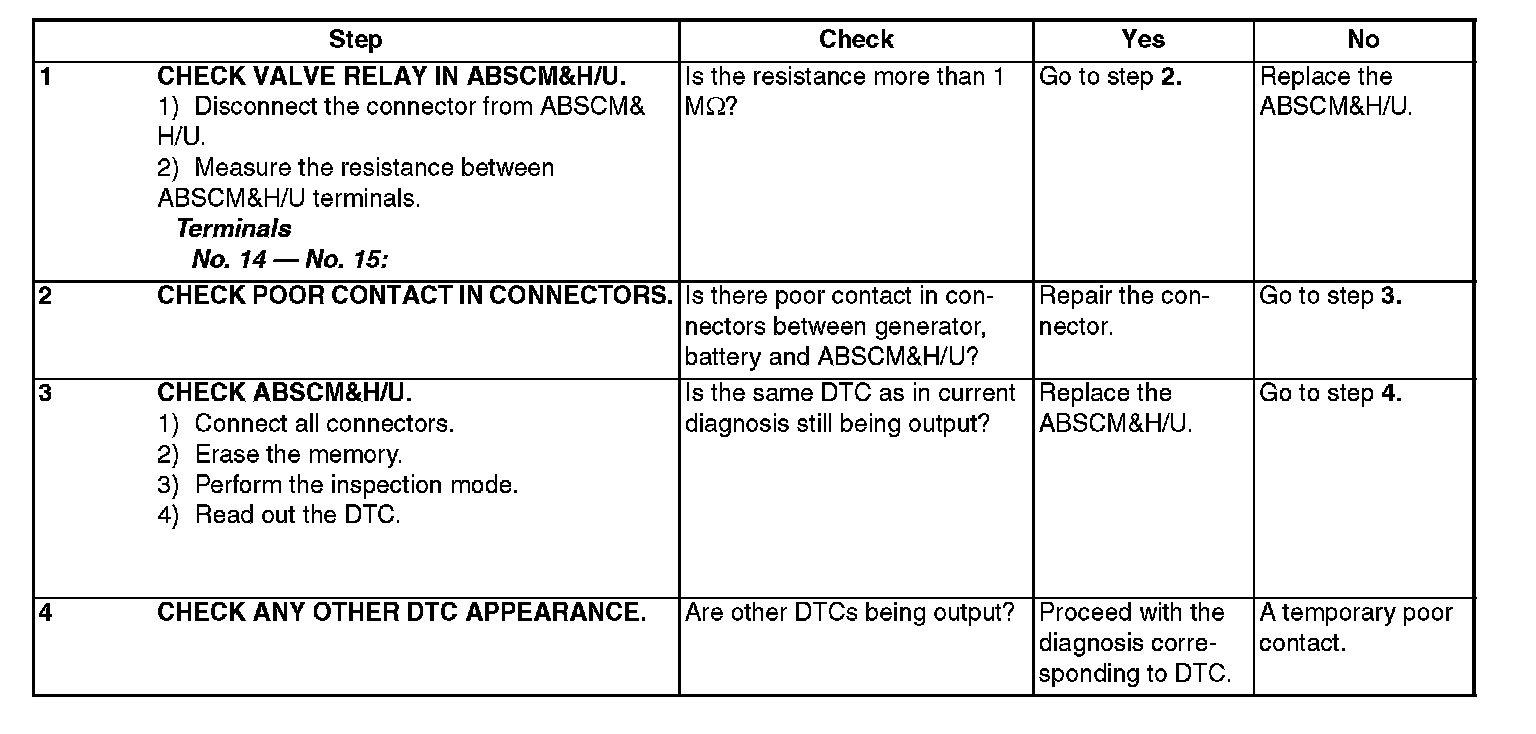

DTC 51 VALVE RELAY ON FAILURE

DIAGNOSIS:
Faulty valve relay

TROUBLE SYMPTOM:
- ABS does not operate.
- EBD does not operate.

NOTE: In addition to the ABS warning light, brake warning light illuminates.








WIRING DIAGRAM
