DTC 56

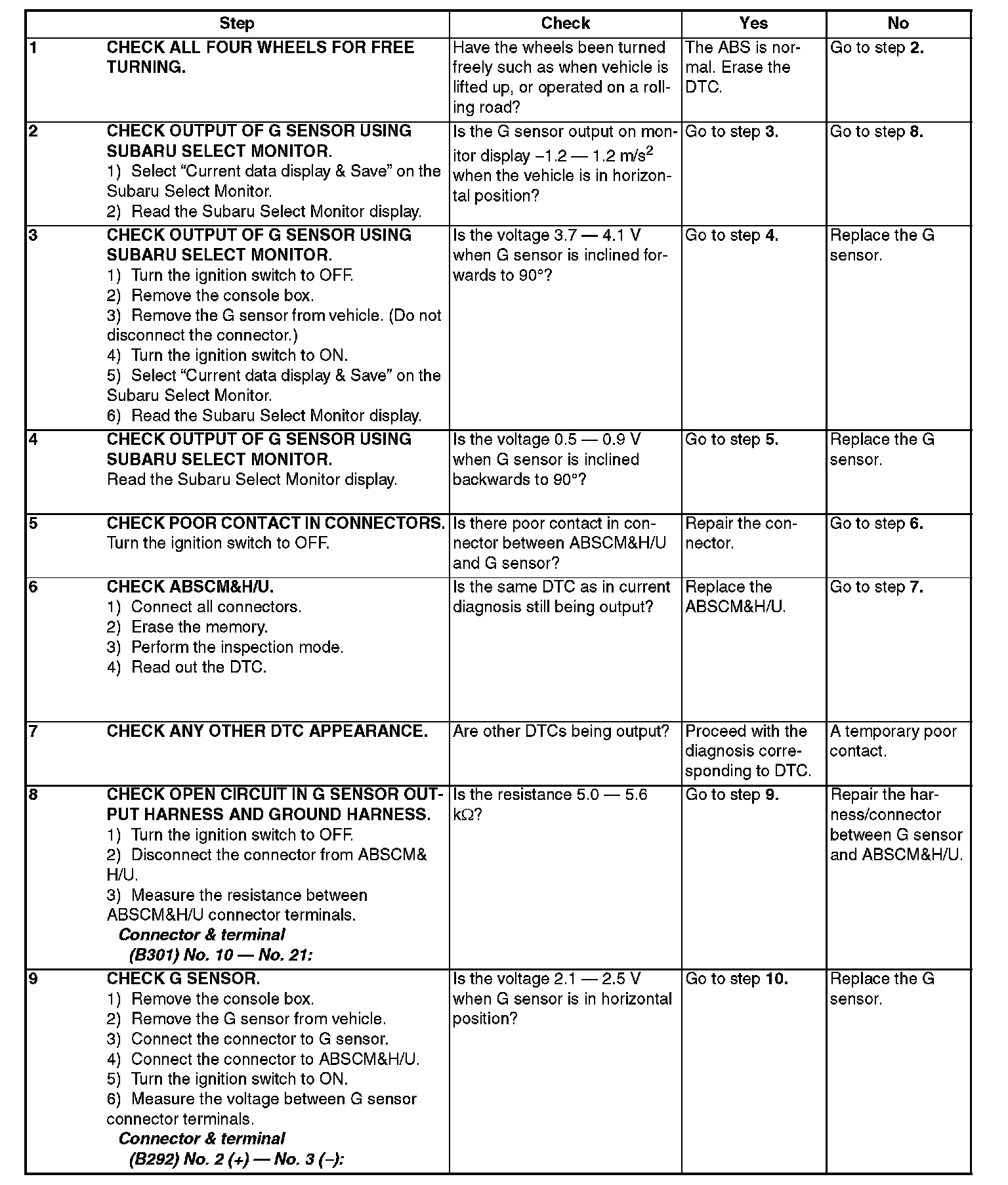

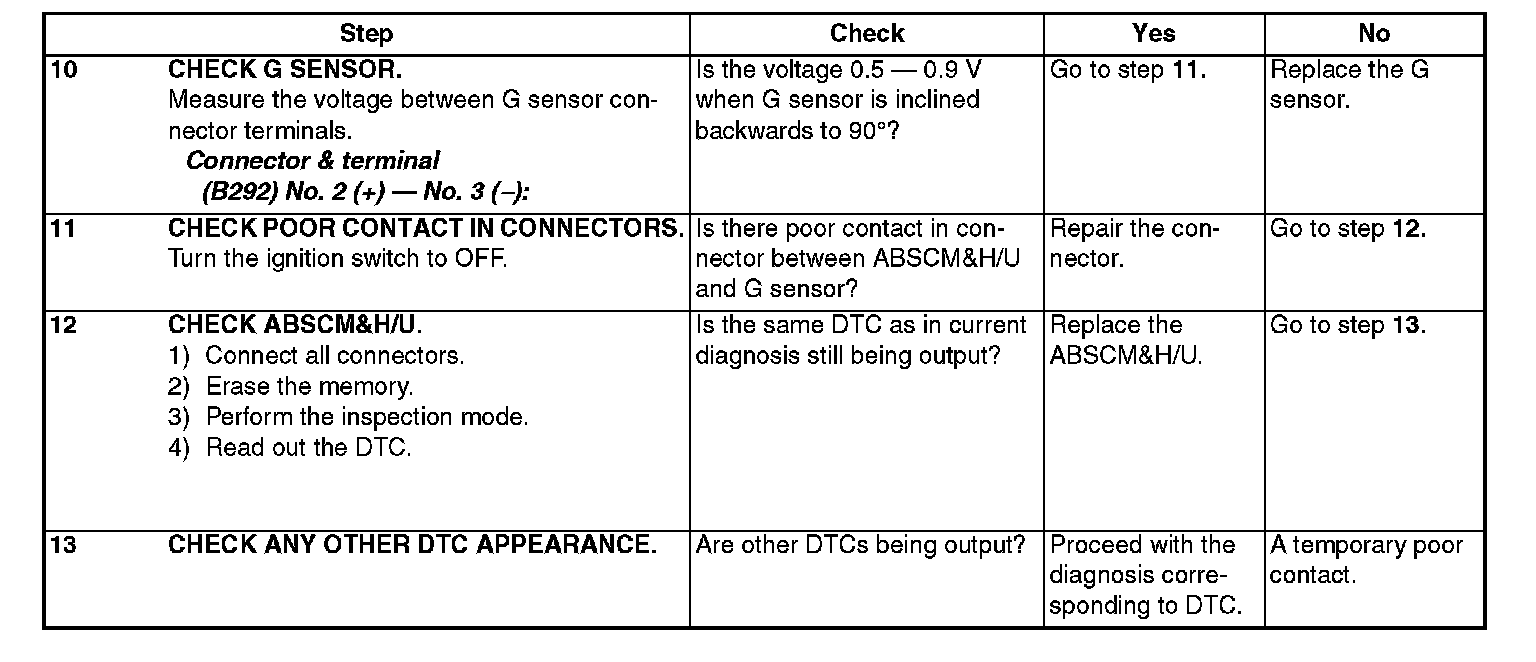

DTC 56 OPEN OR SHORT CIRCUIT IN G SENSOR

CIRCUIT DIAGNOSIS:
Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.

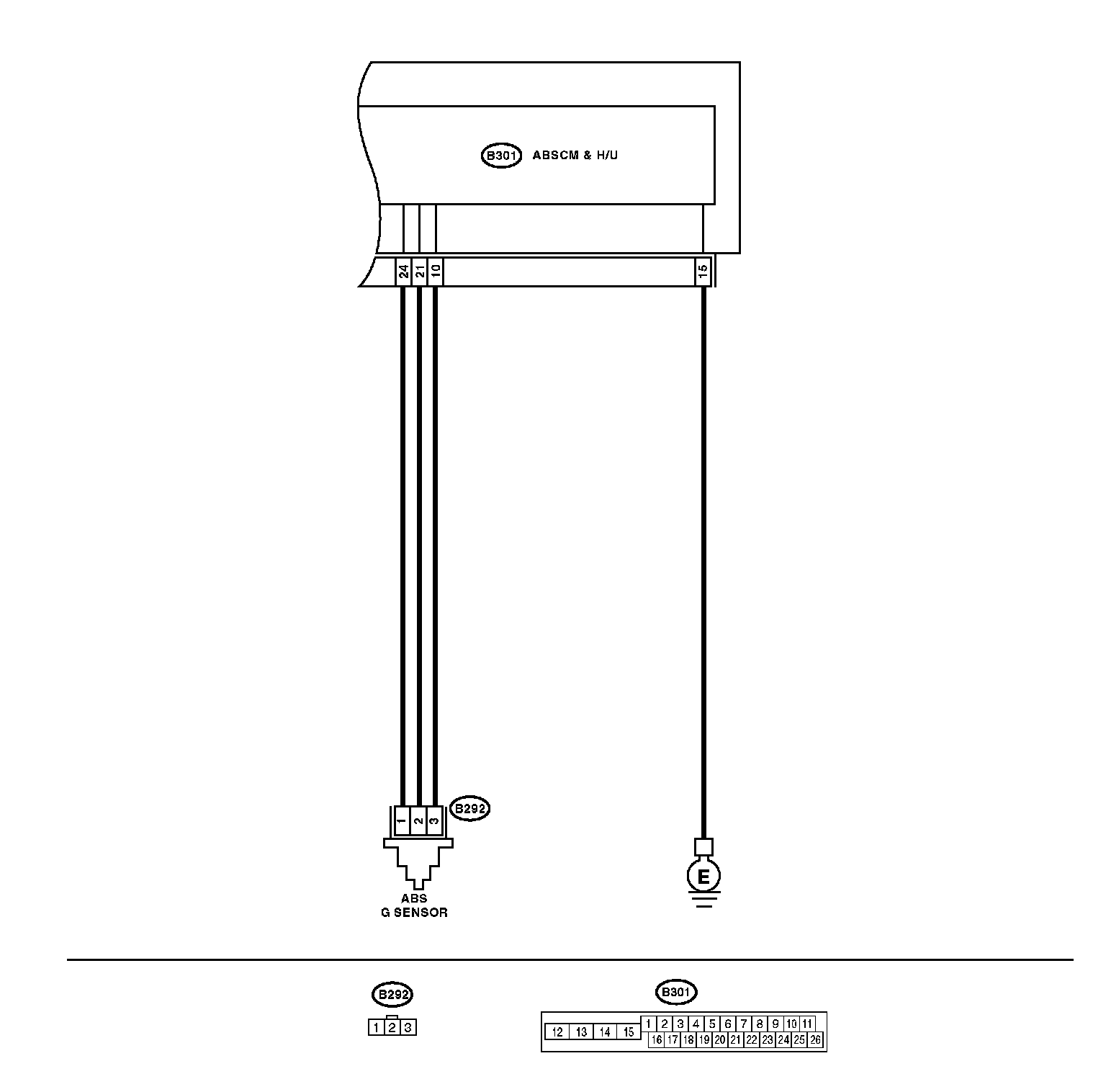

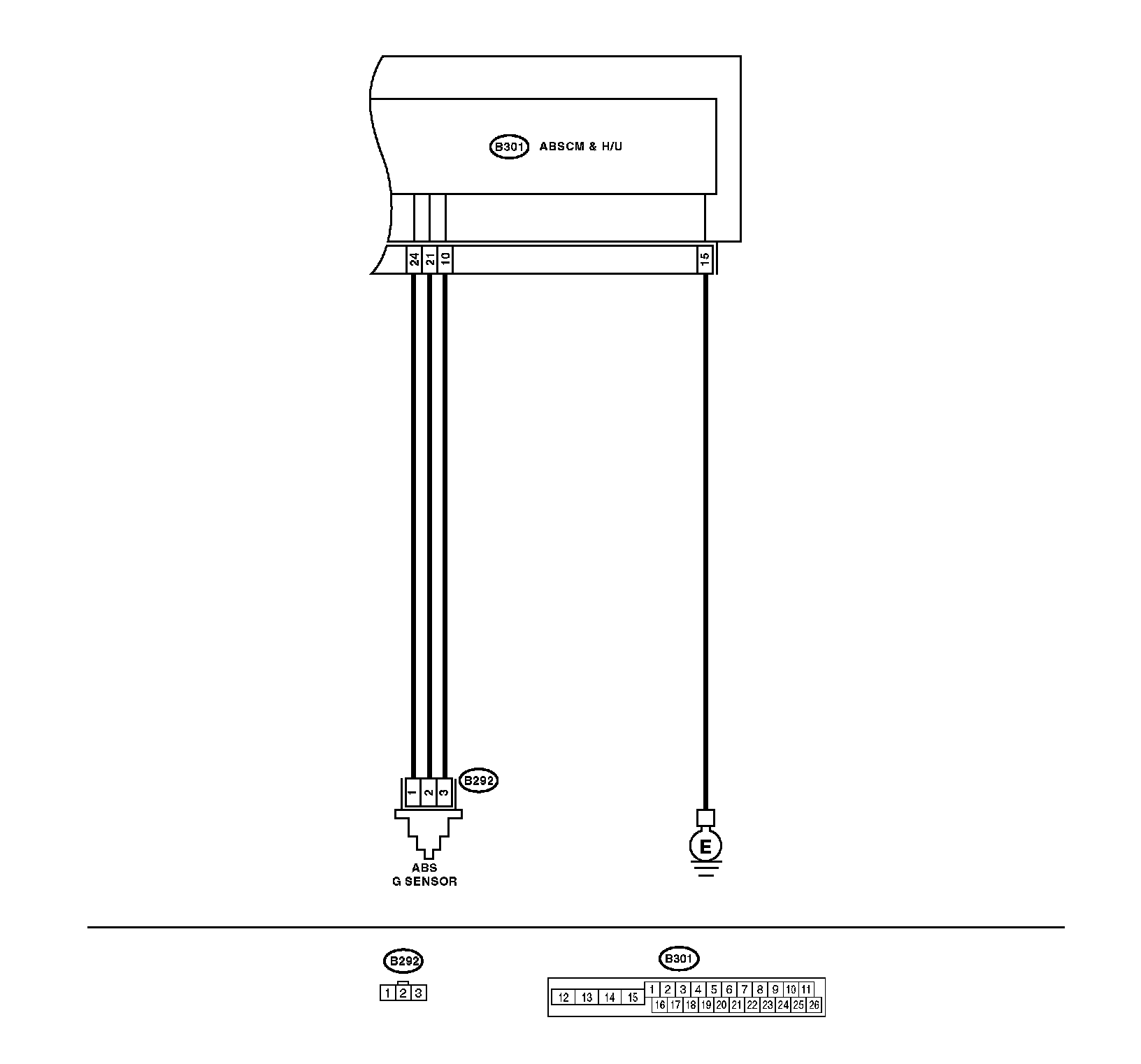

WIRING DIAGRAM

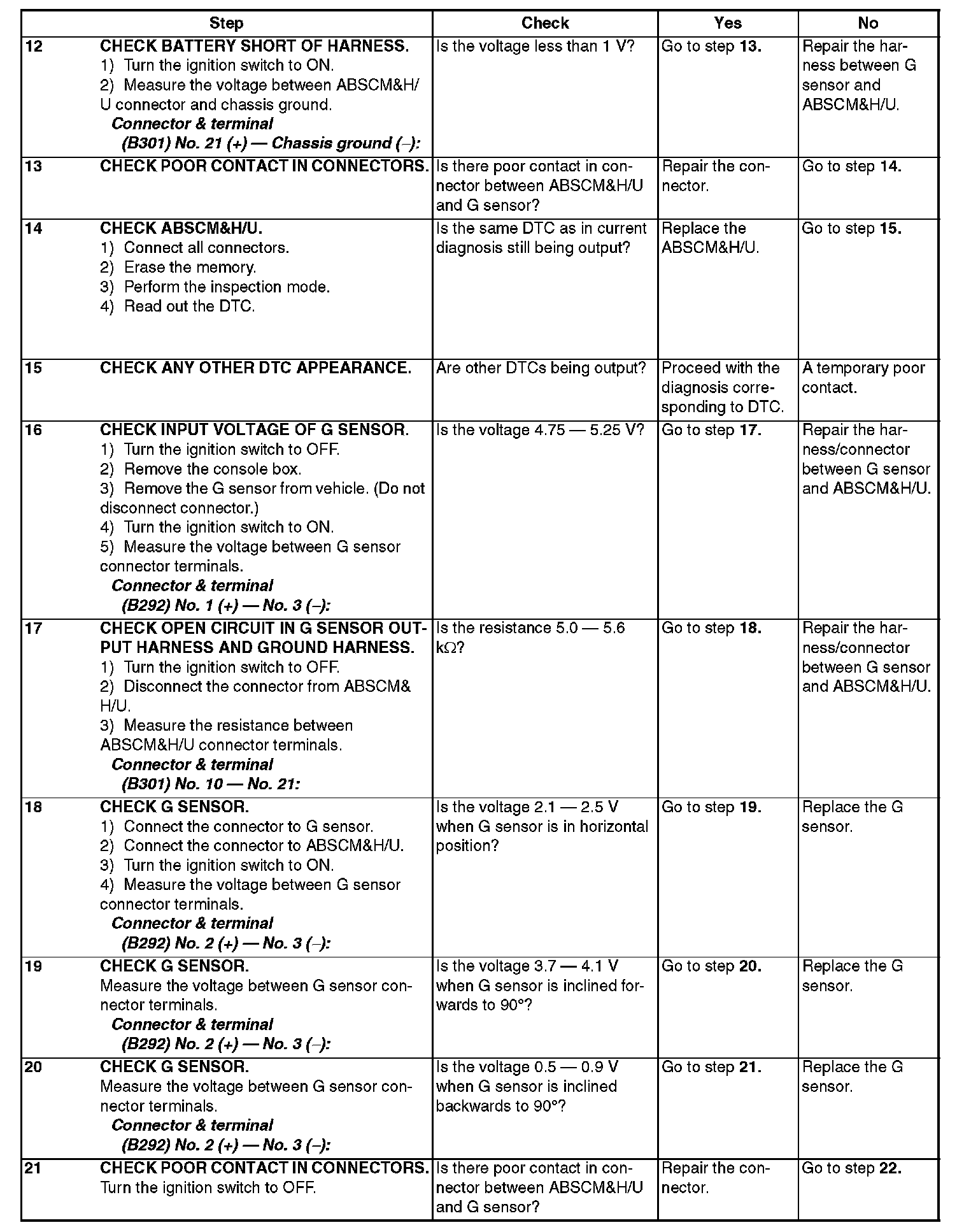

DTC 56 BATTERY SHORT IN G SENSOR CIRCUIT

DIAGNOSIS:
Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.

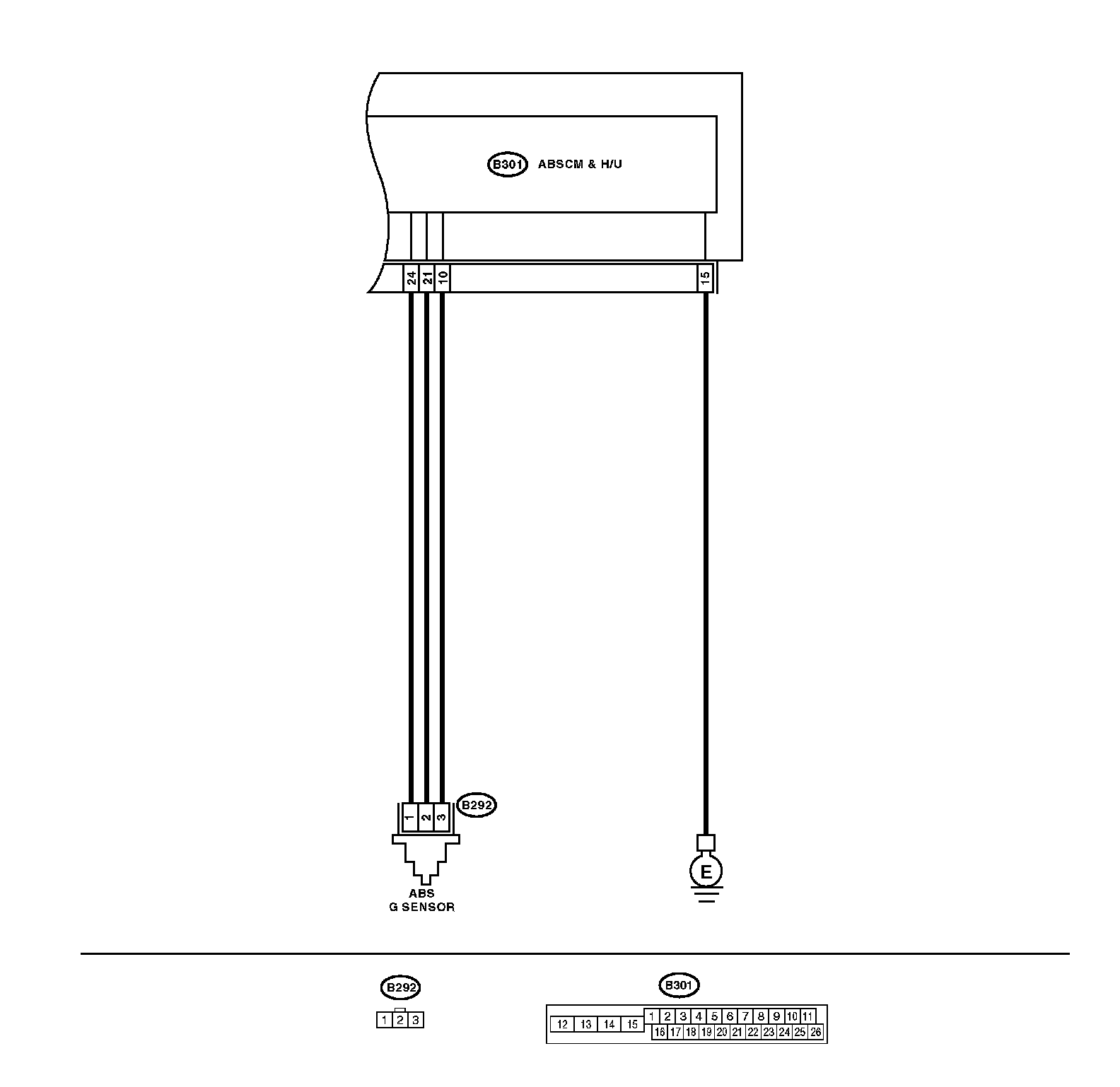

WIRING DIAGRAM

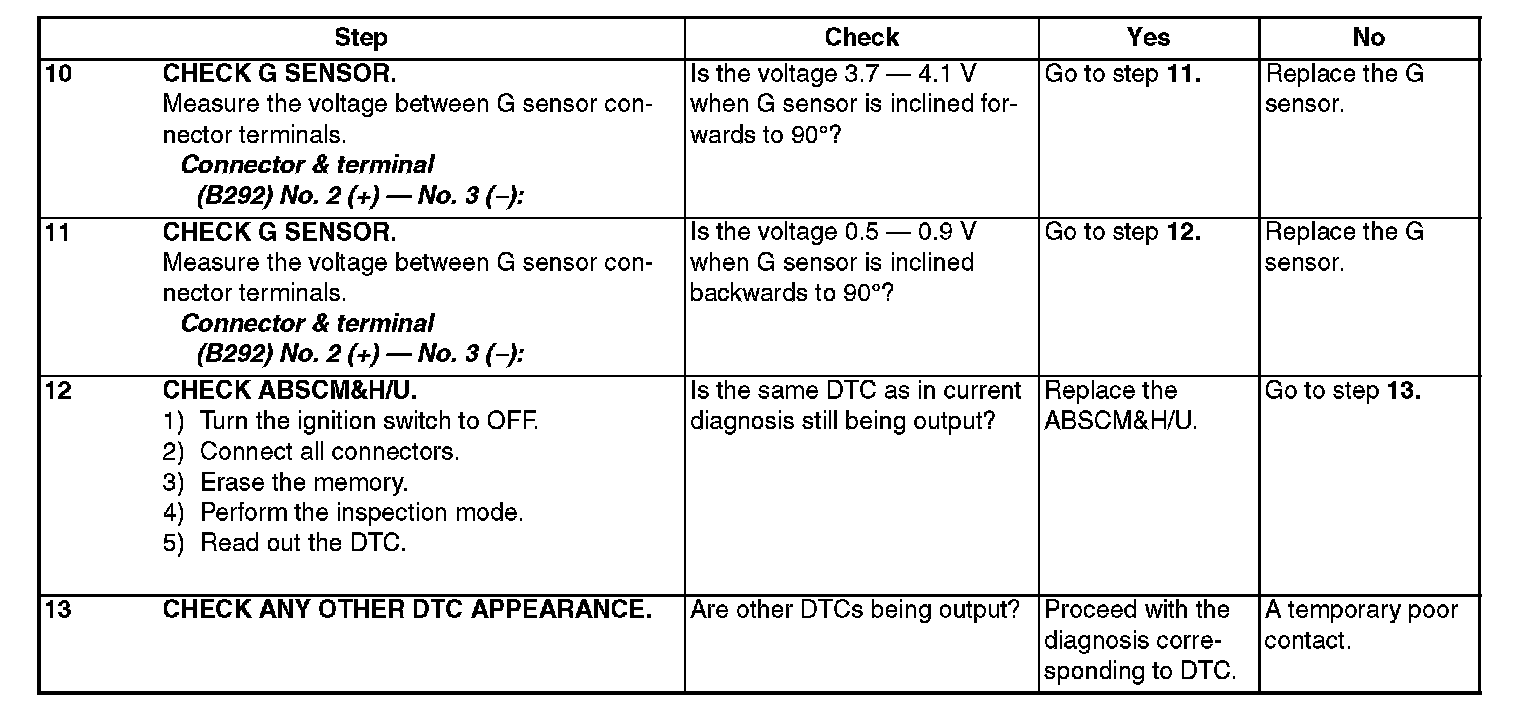

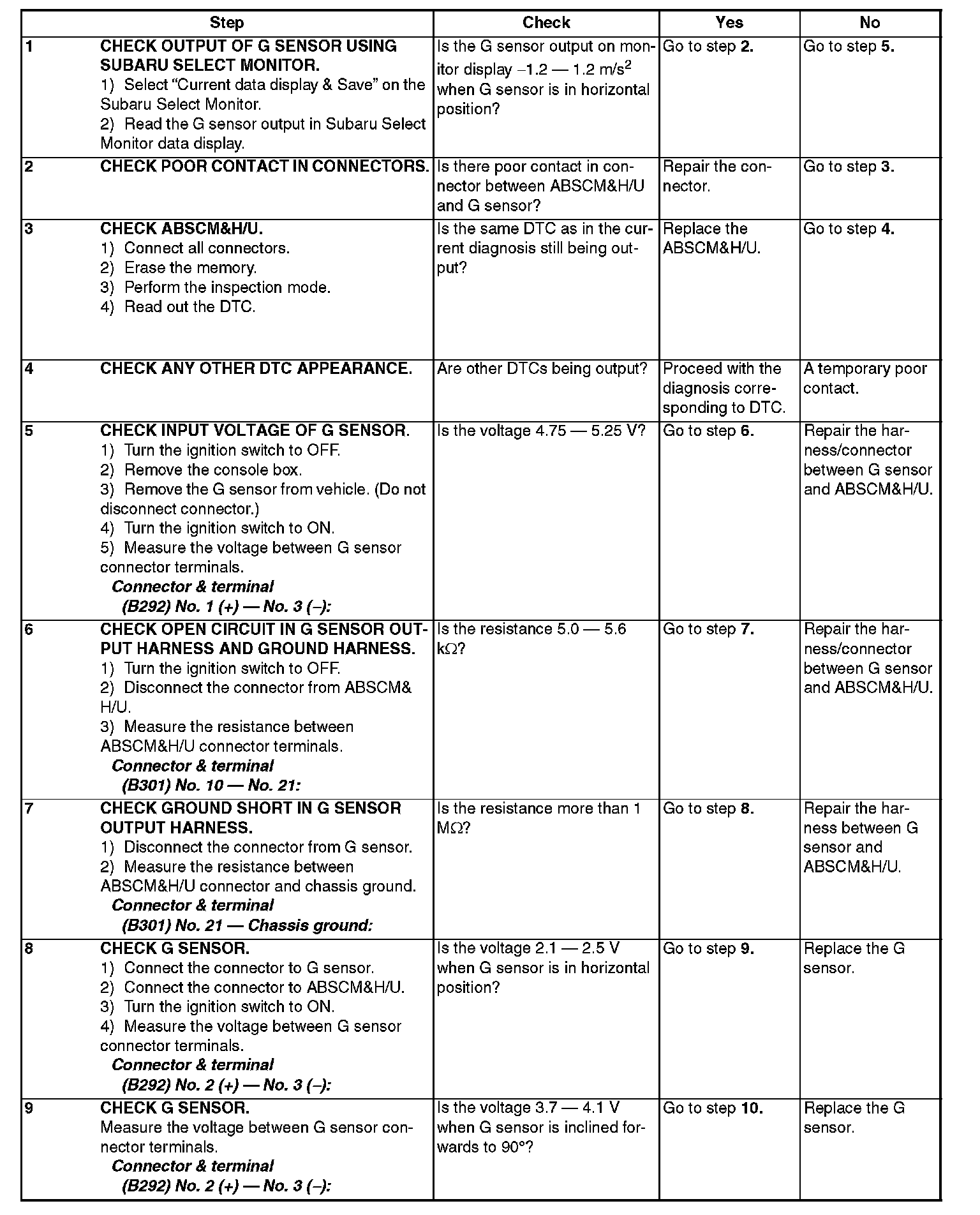

DTC 56 ABNORMAL G SENSOR HIGH OUTPUT

DIAGNOSIS:
Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.











WIRING DIAGRAM

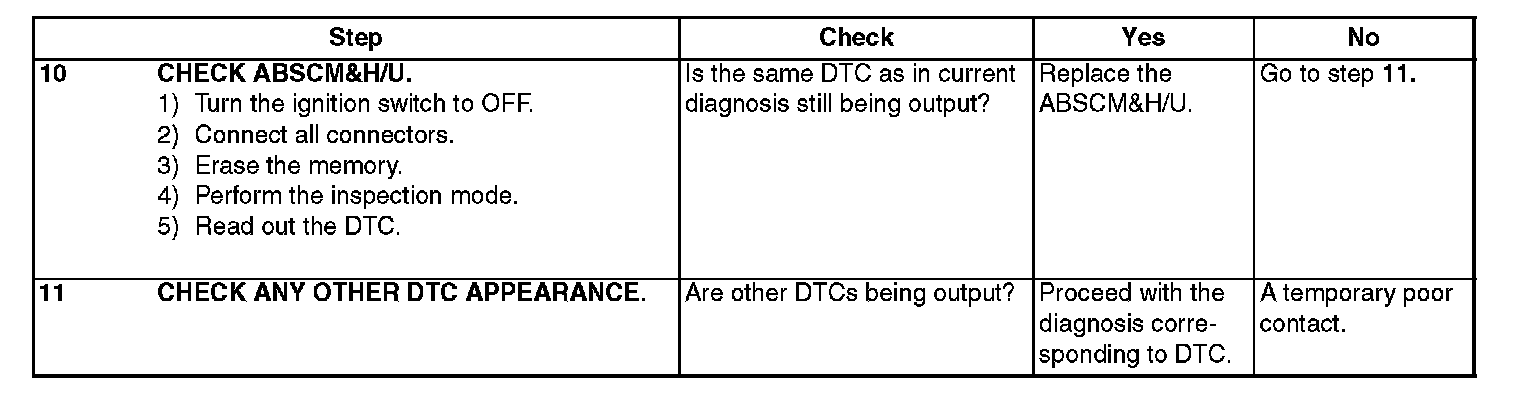

DTC 56 DETECTION OF G SENSOR STICK

DIAGNOSIS:
Faulty G sensor output voltage

TROUBLE SYMPTOM:
ABS does not operate.











WIRING DIAGRAM
