Power Transistor HVAC: Service and Repair

Power Transistor (Auto A/C Model)

REMOVAL
1. Remove the glove box.

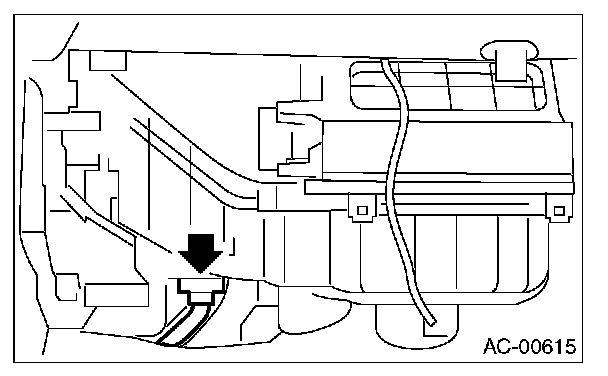

2. Disconnect the power transistor connector.




3. Loosen the two screws to remove the power transistor.

INSTALLATION
Install in the reverse order of removal.
