U5/Low Emissions Models
DTC P0400 EXHAUST GAS RECIRCULATION FLOWDTC DETECTING CONDITION:
- Two consecutive driving cycles with fault.
TROUBLE SYMPTOM:
- Poor driving performance at low engine speed
- Faulty idling
- Poor driving performance
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

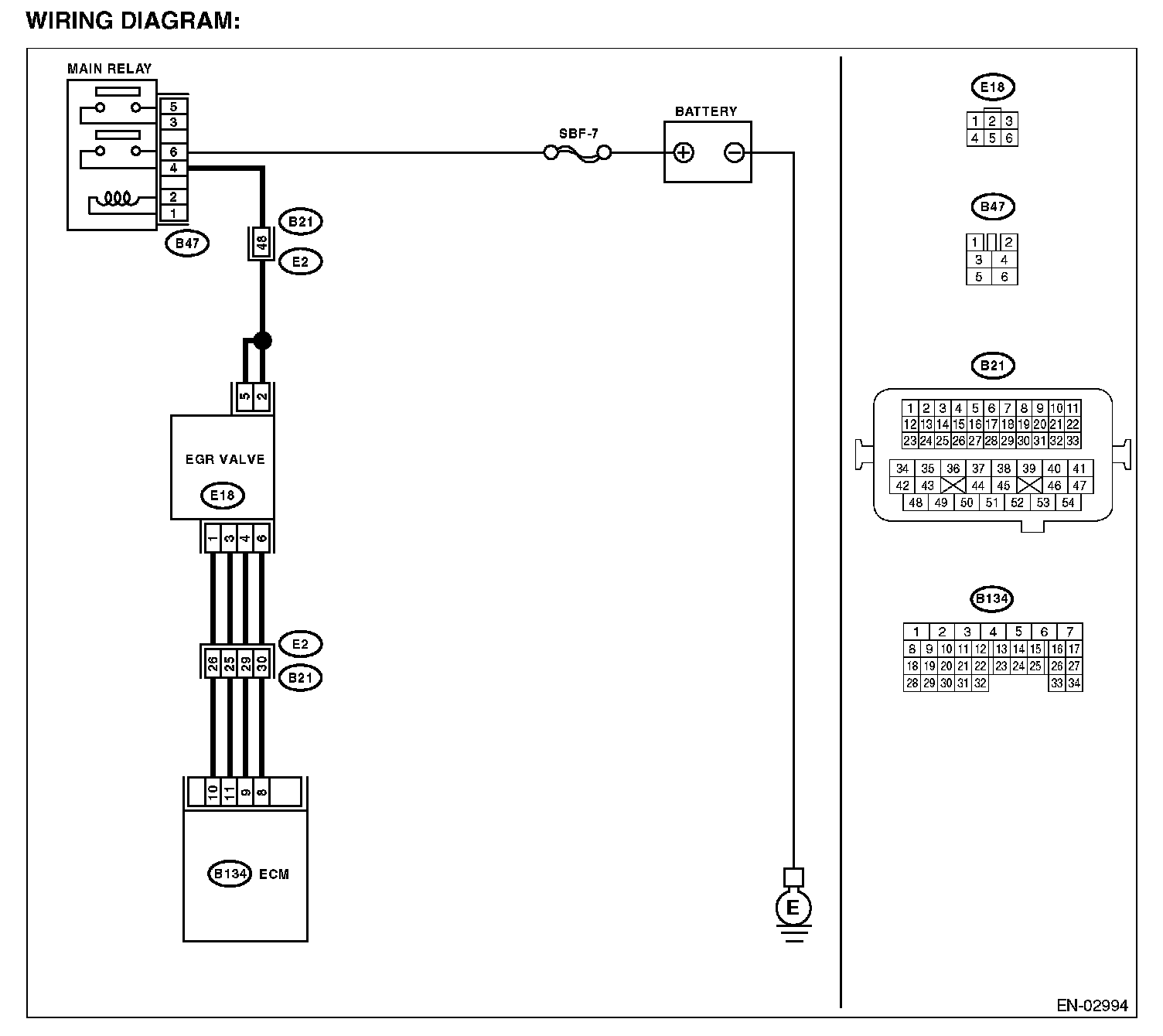

Wiring Diagram:

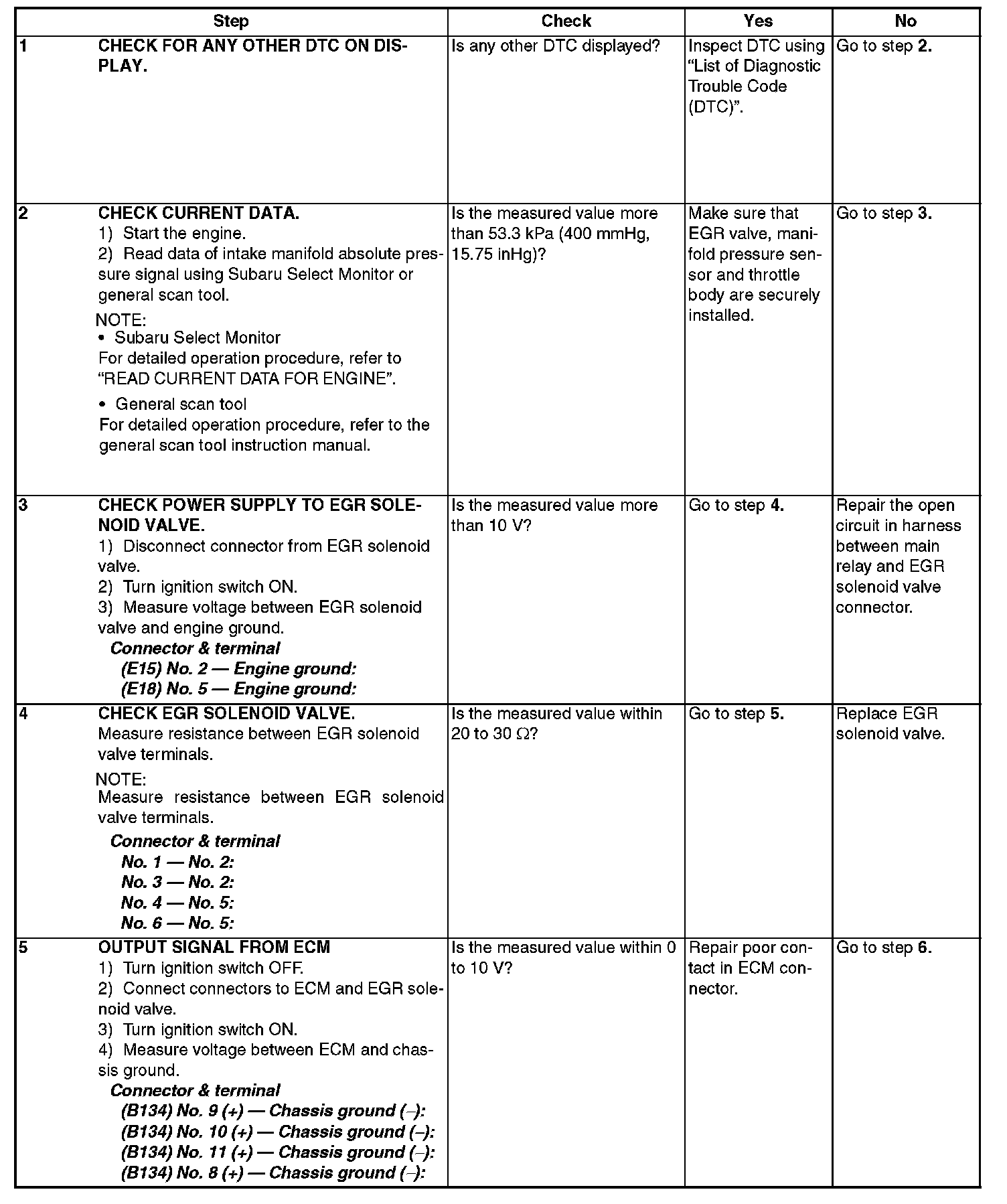

Step 1 - 5:
Step 6 - 8:
