DTC 2C

DTC 2C BELT TENSION SENSOR FAILURE

DTC DETECTING CONDITION:
- Passengers seat belt tension sensor is faulty.
- Airbag main harness circuit is open or shorted.
- Occupant detection control module is faulty.

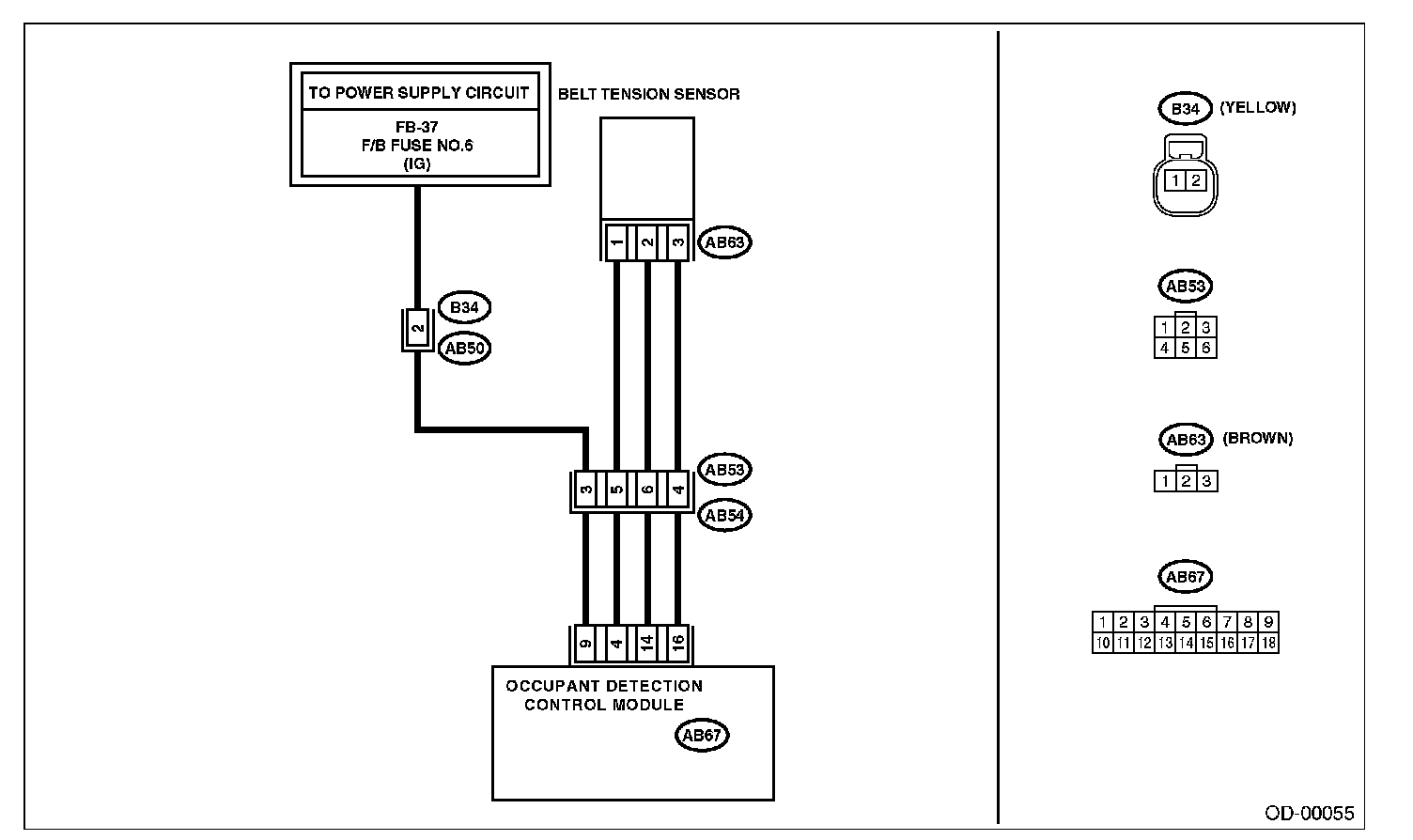

Wiring Diagram:

Step 1 - 2:

Step 3 - 5:
