P1152

DTC P1152 O2 SENSOR CIRCUIT RANGE/PERFORMANCE (LOW) (BANK 1 SENSOR 1)

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repairing or replacing the defective part, carry out the Clear Memory Mode and Inspection Mode.

Wiring Diagram:

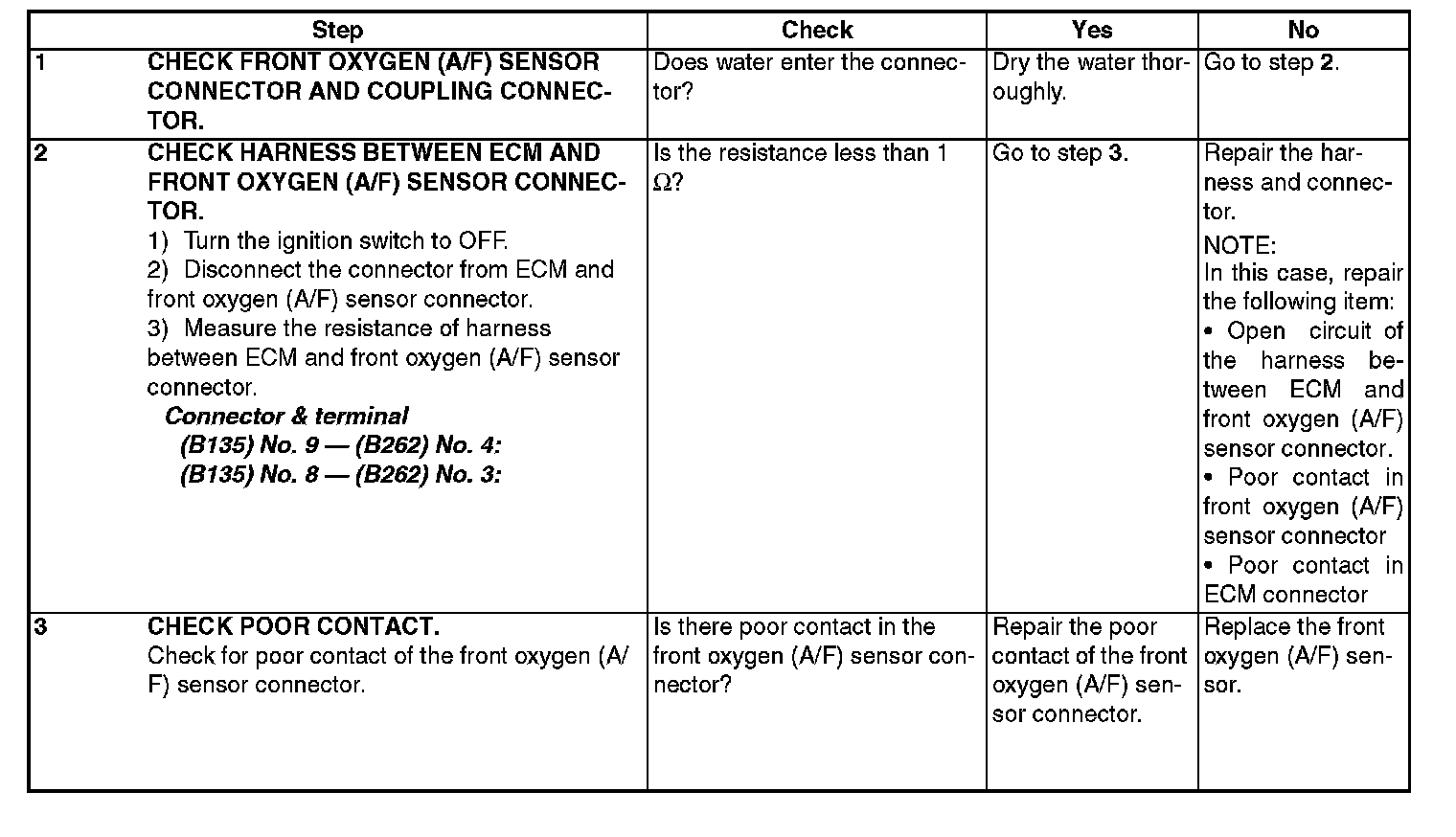

Step 1 - 3:
