B2-B348 & AB1-AB13
B2-B348 & AB1-AB13
Bulkhead Wiring Harness (In Compartment)

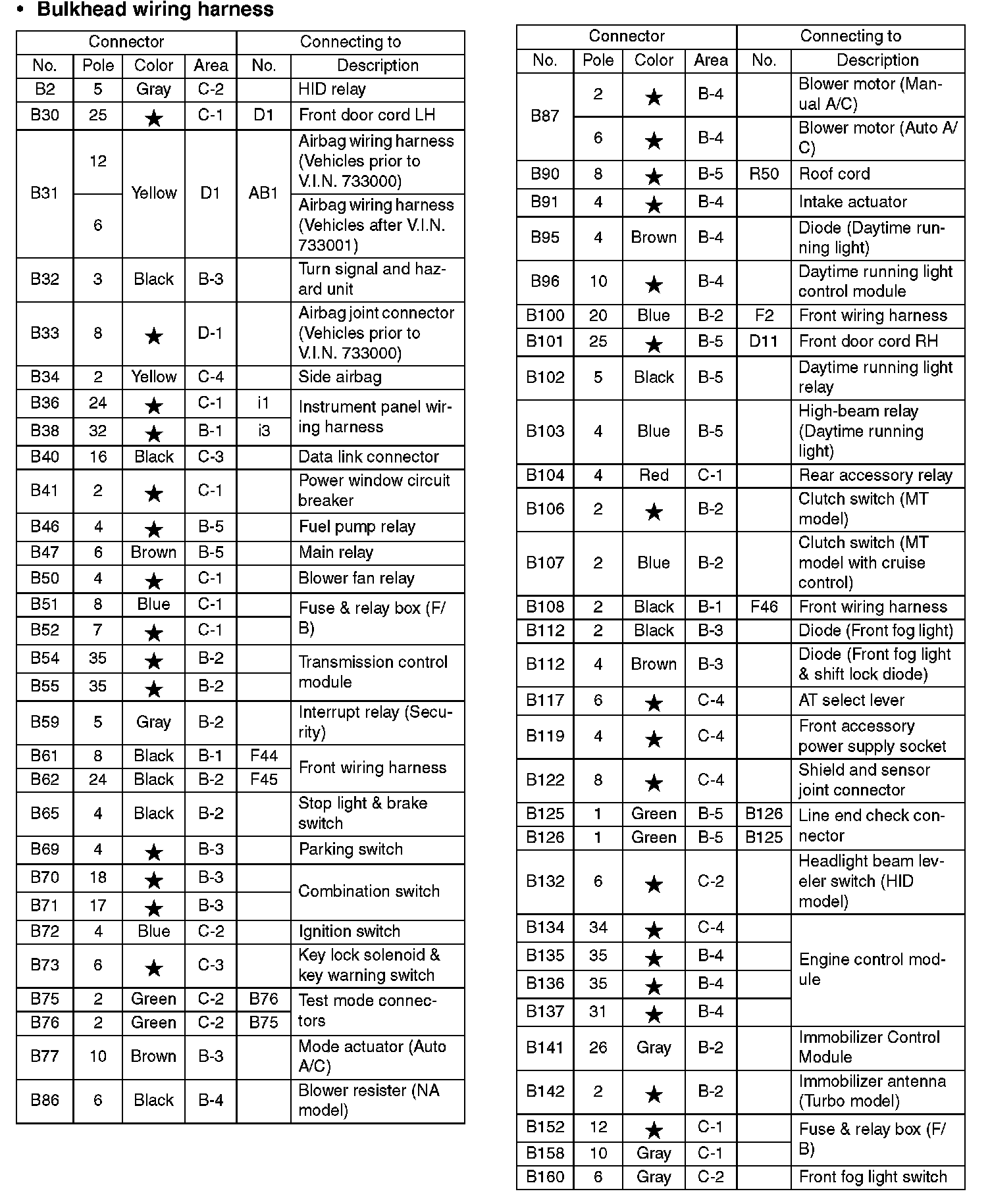

B2-B160:

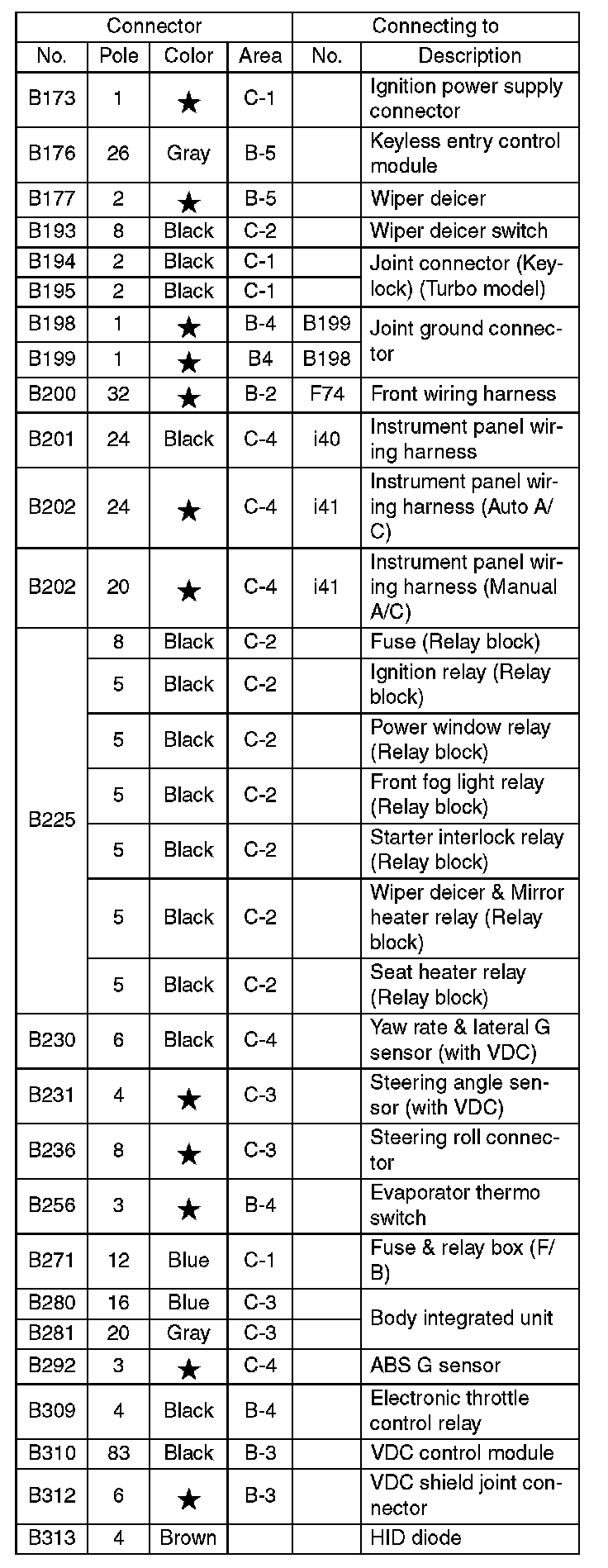

B173-B313:
B315-B348:

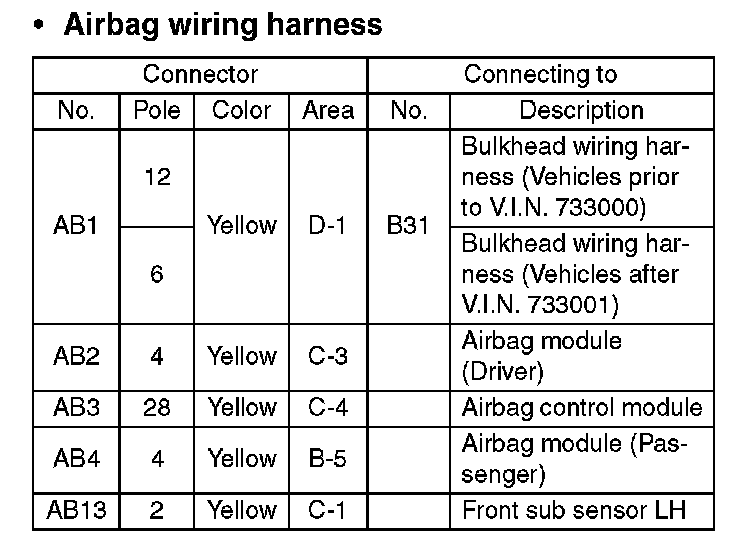

AB1-AB13:

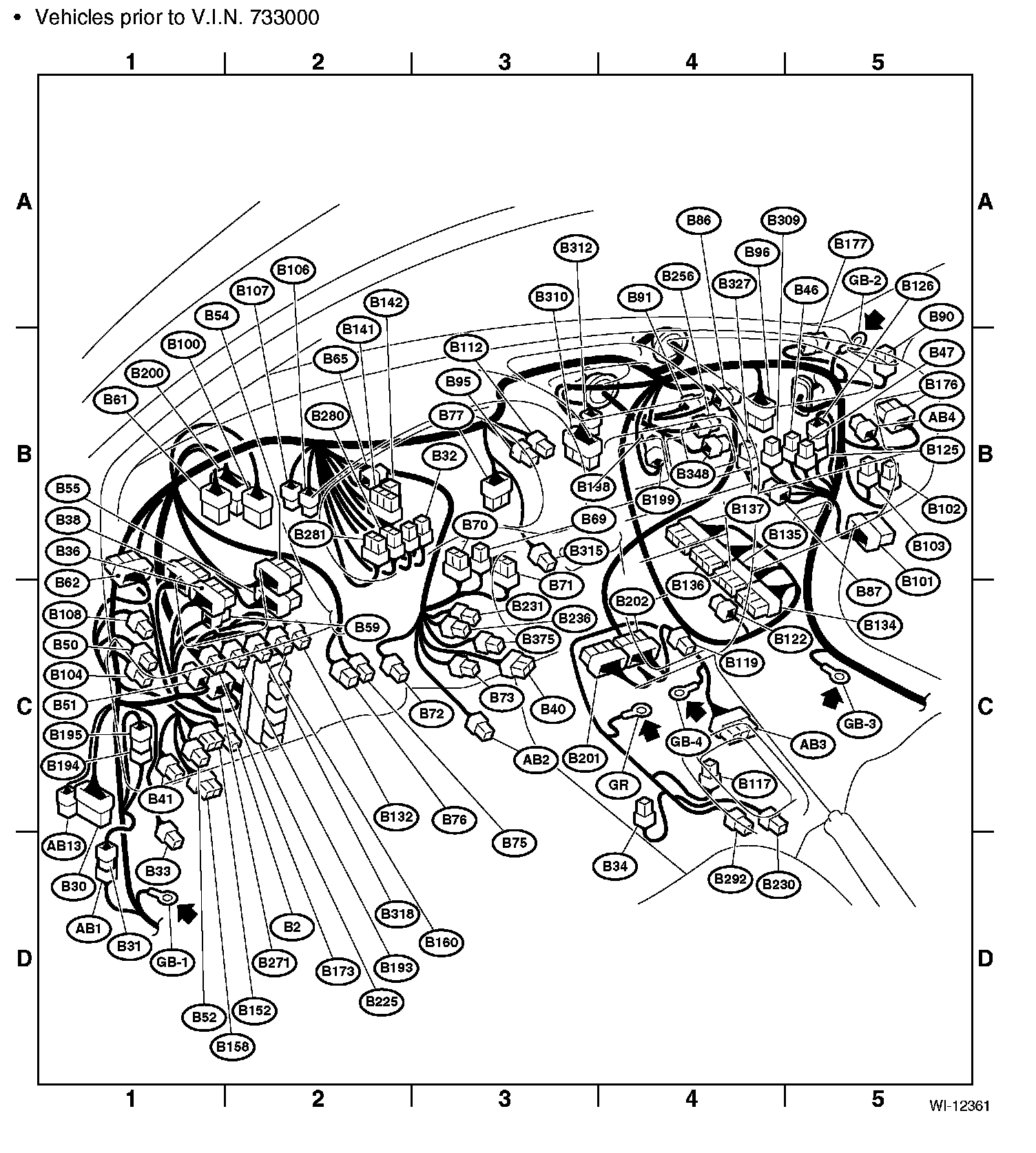

Area View:
Area View:
