R1-R189 & B97-B270 & AB7-AB63
R1-R189 & B97-B270 & AB7-AB63
Rear Wiring Harness
R1-R189:

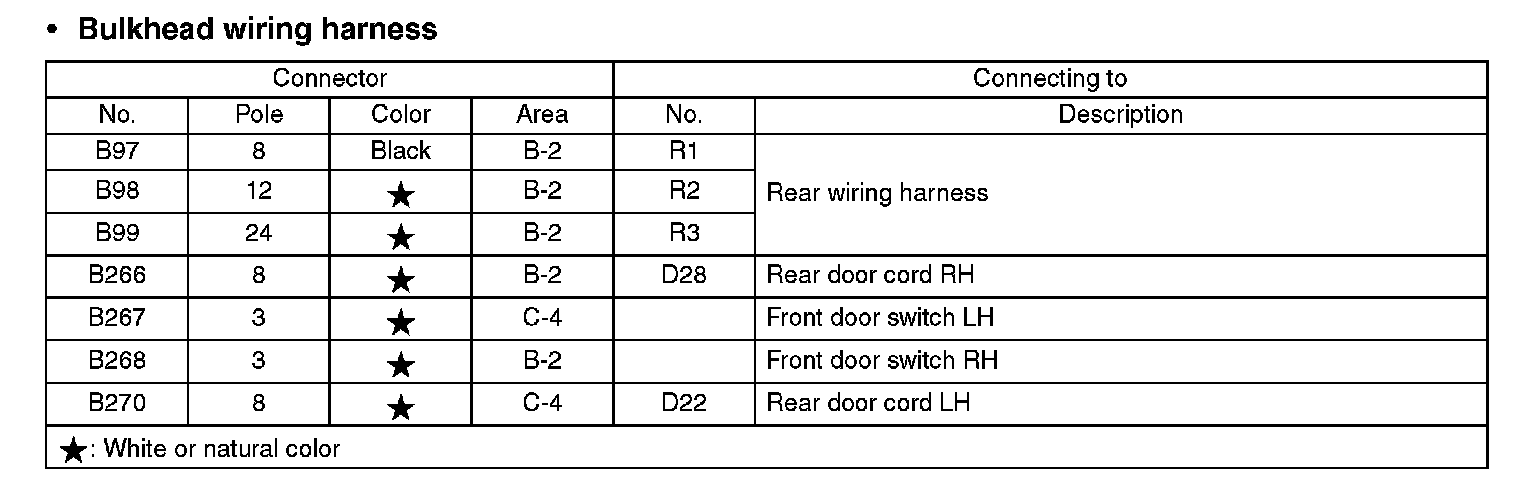

B97-B270:

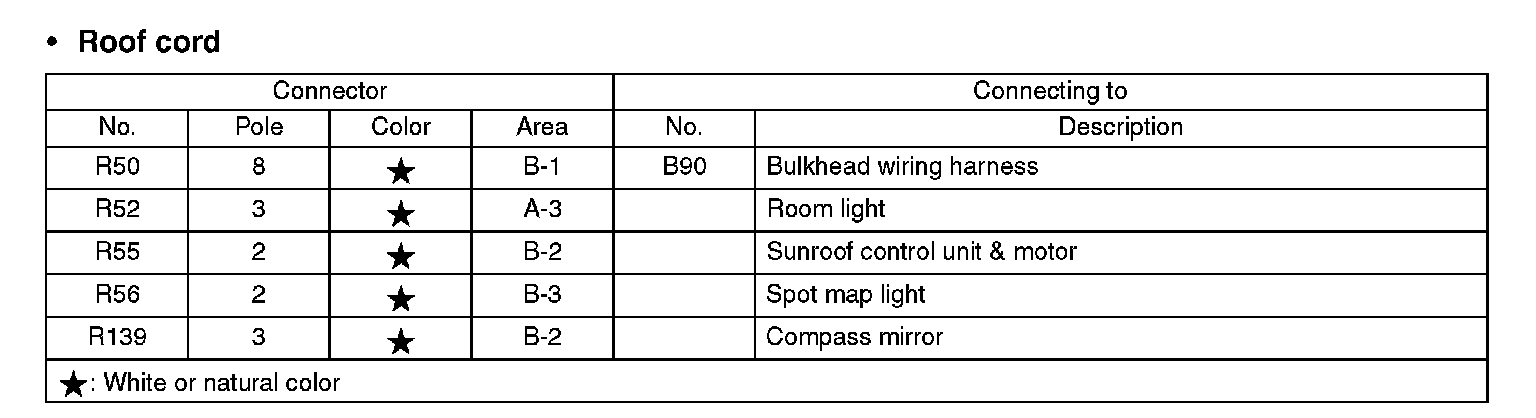

R50-R139:

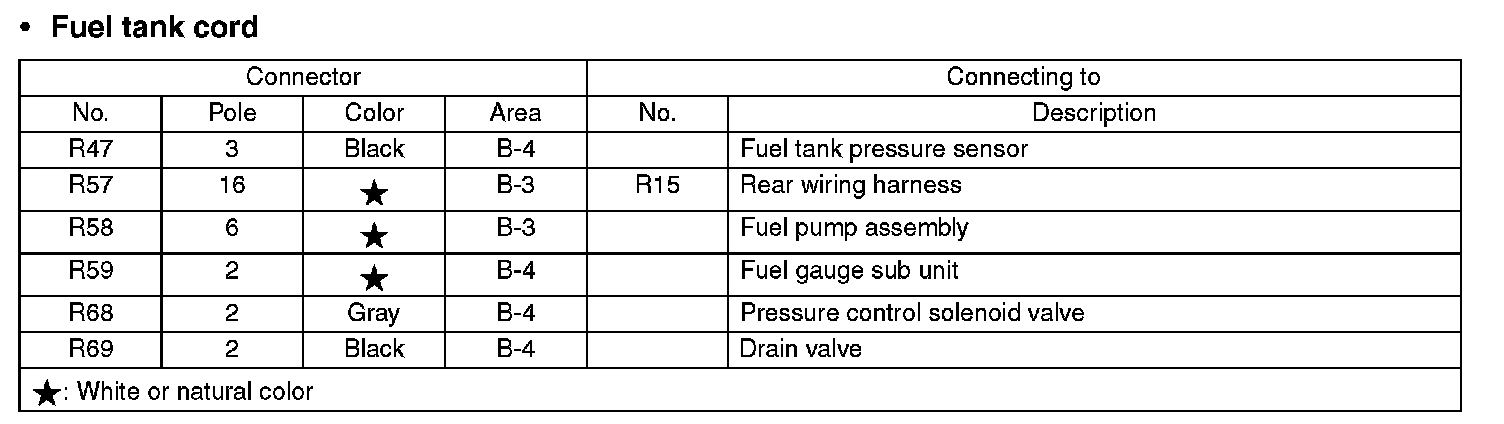

R47-R69:
AB7-AB63:

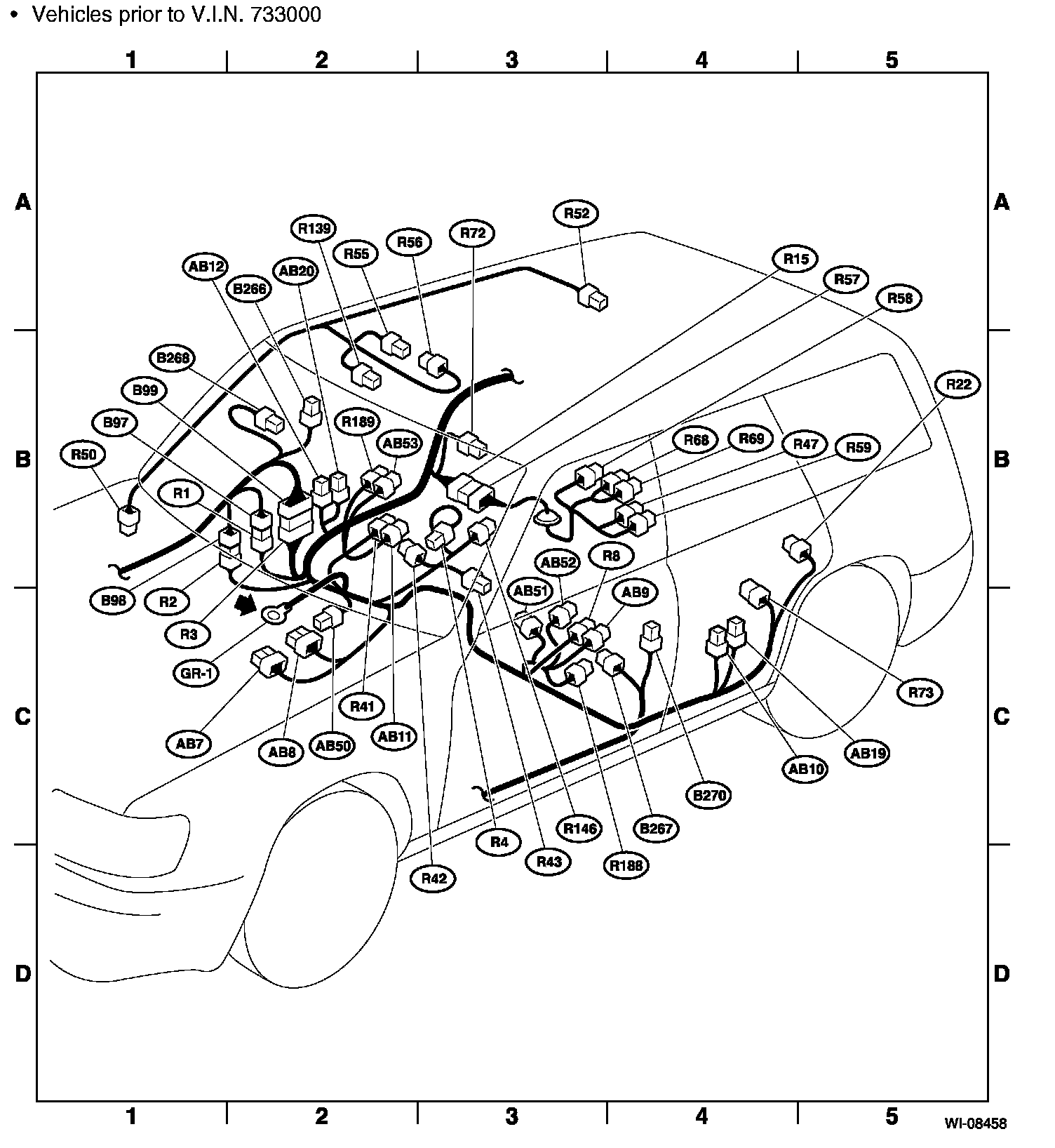

Area View:

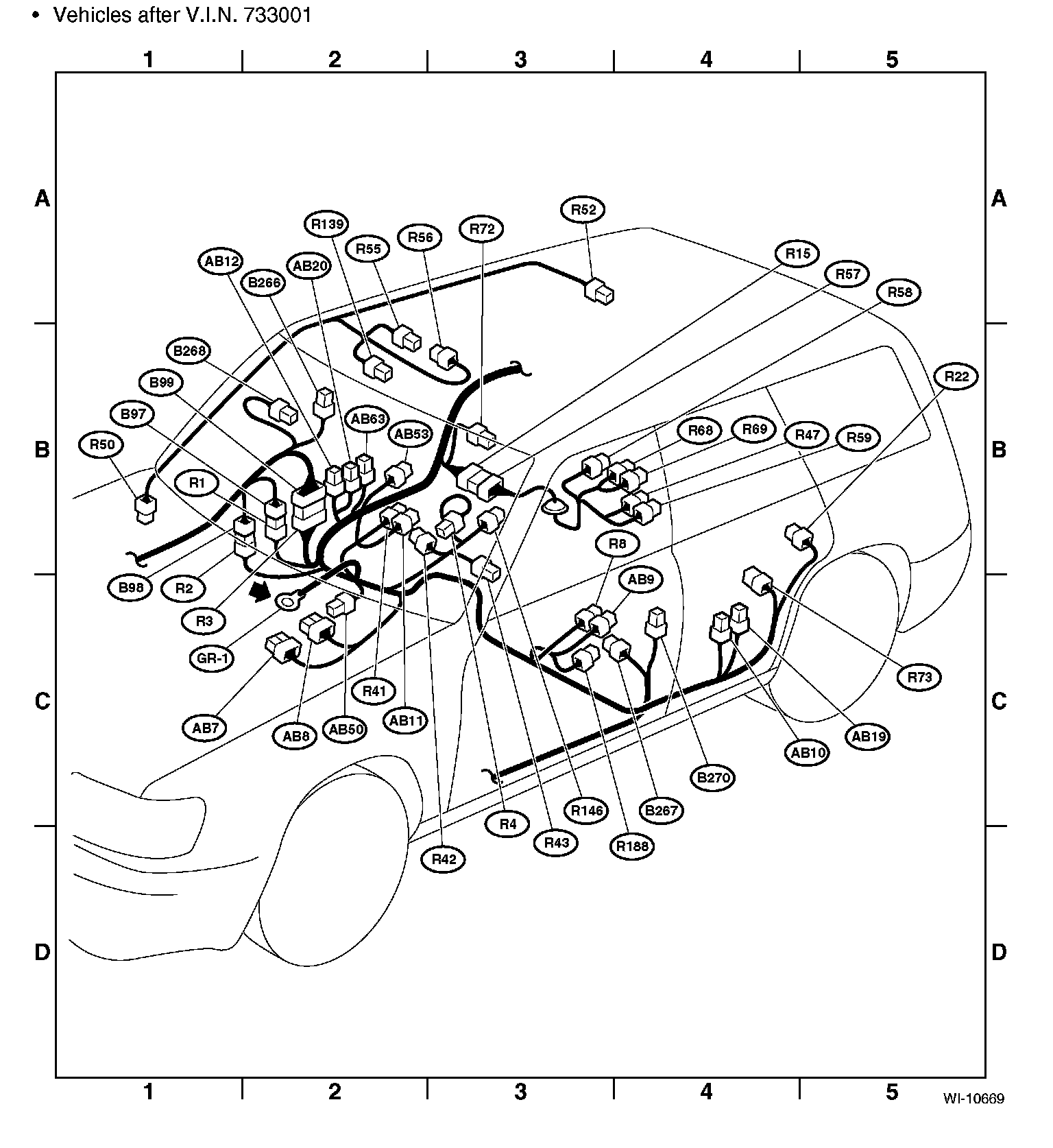

Area View:
