H/L(HID)-01

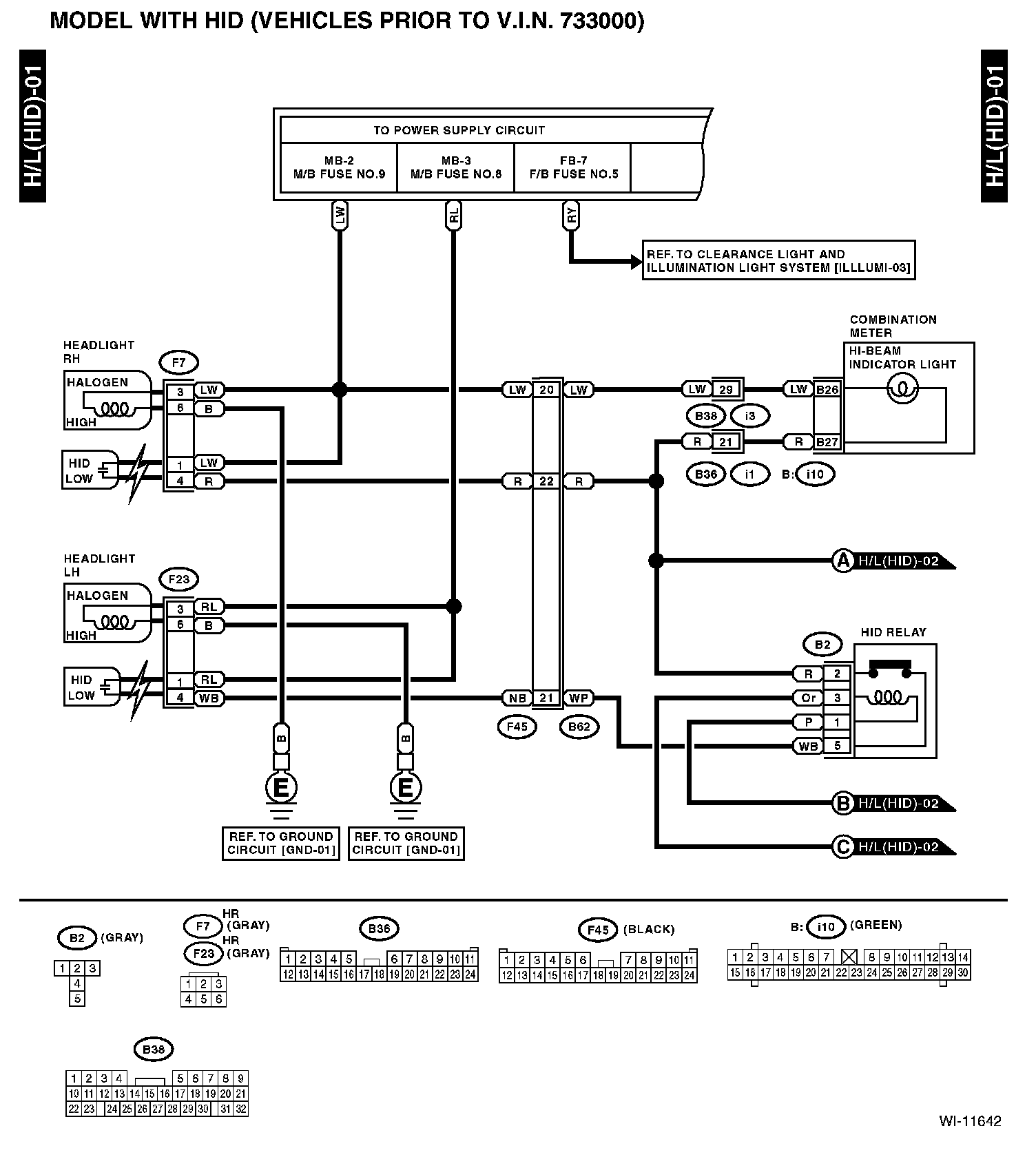

H/L(HID)-01 (Vehicles Prior To V.I.N. 733000):

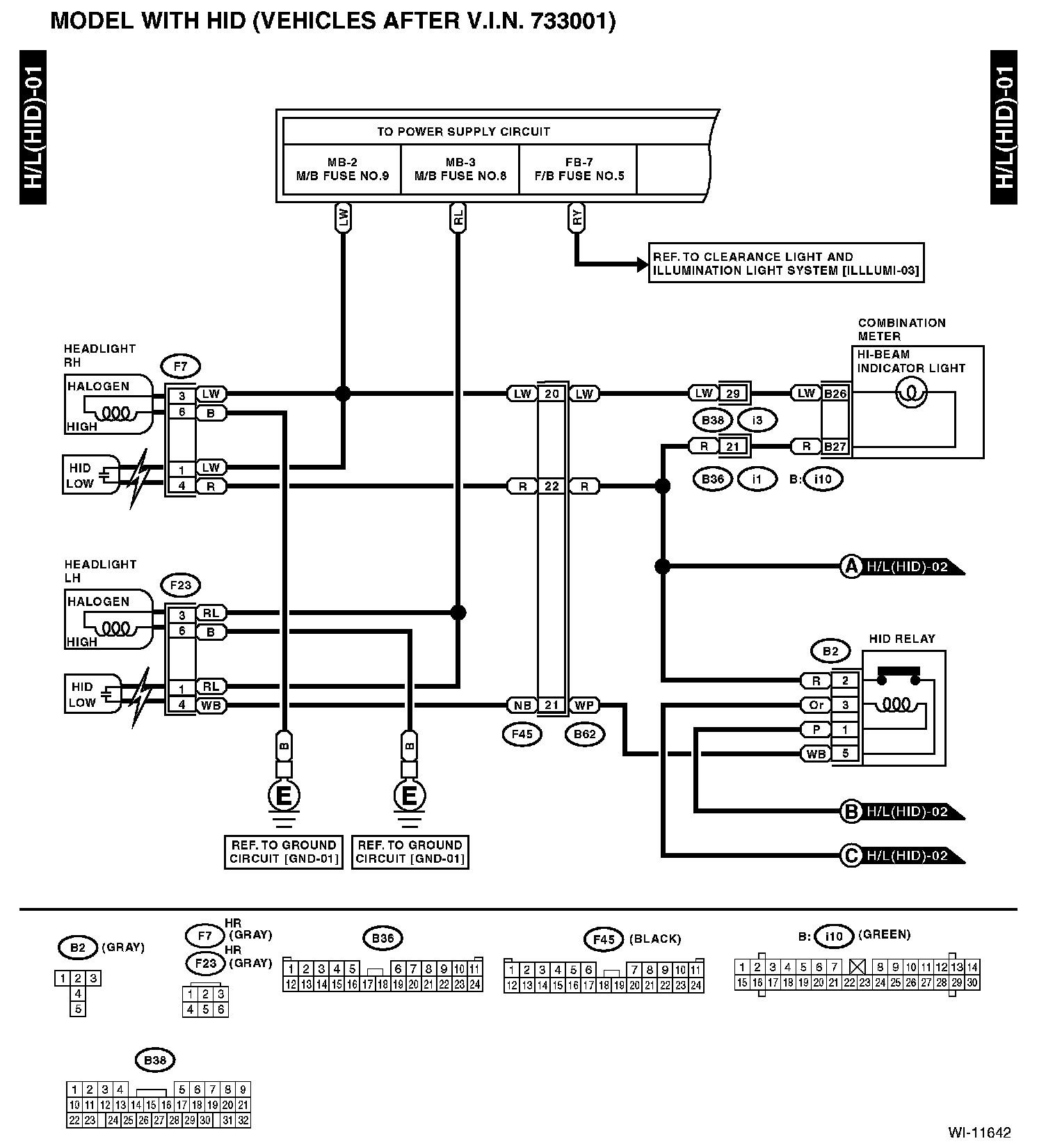

H/L(HID)-01 (Vehicles After V.I.N. 733001):
