H/L(HID)-03

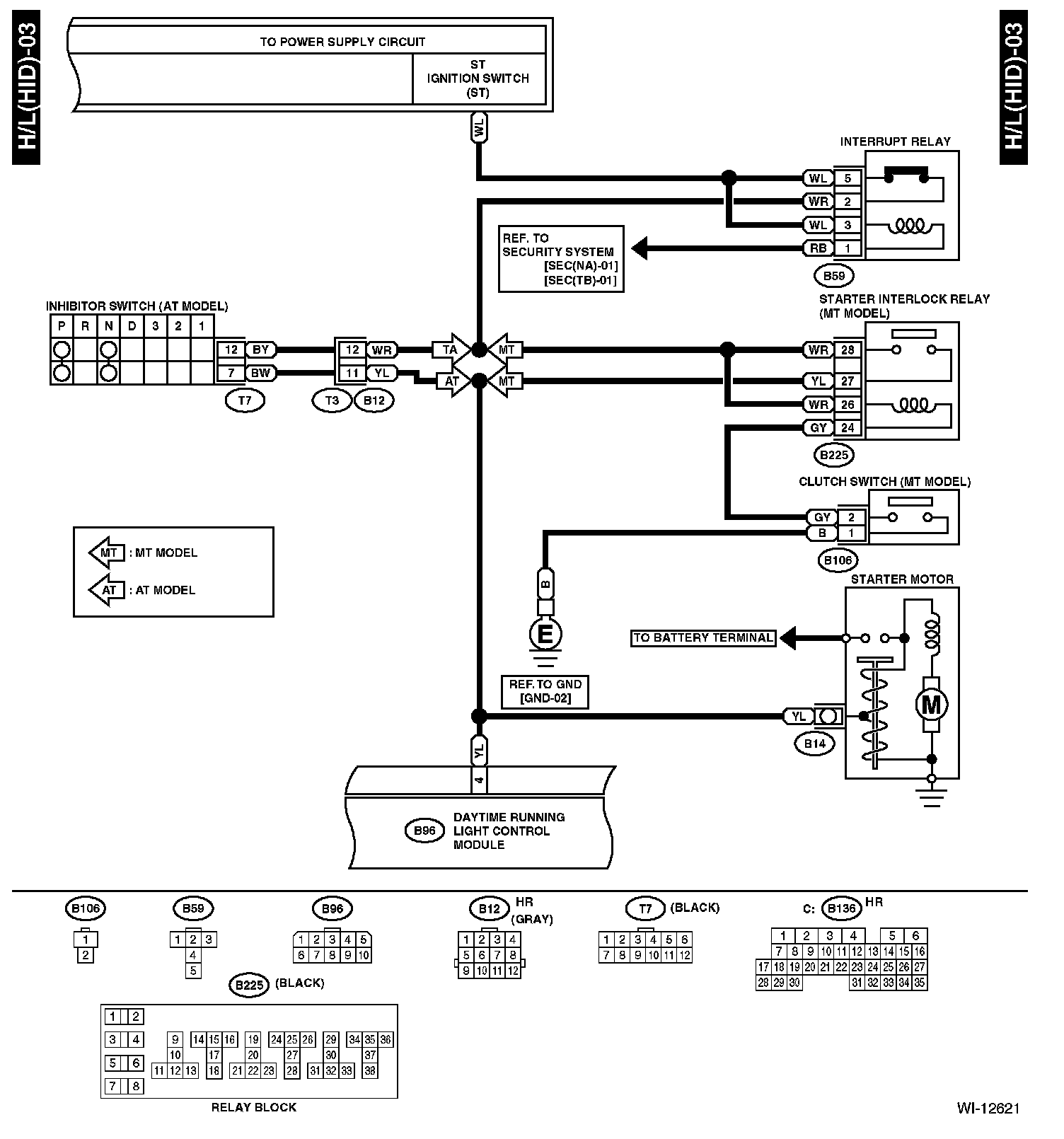

H/L(HID)-03
H/L(HID-03 (Vehicles Prior To V.I.N. 733000):
H/L(HID)-03 (Vehicles After V.I.N. 733001):
