Airbag System Diagnostics

PREPARATION TOOL

CAUTION: To measure the voltage and resistance of airbag system component, be sure to use the specified test harness.

Special Tool:

Test Harness D:

Test Harness F:

Test Harness H:

Test Harness N:

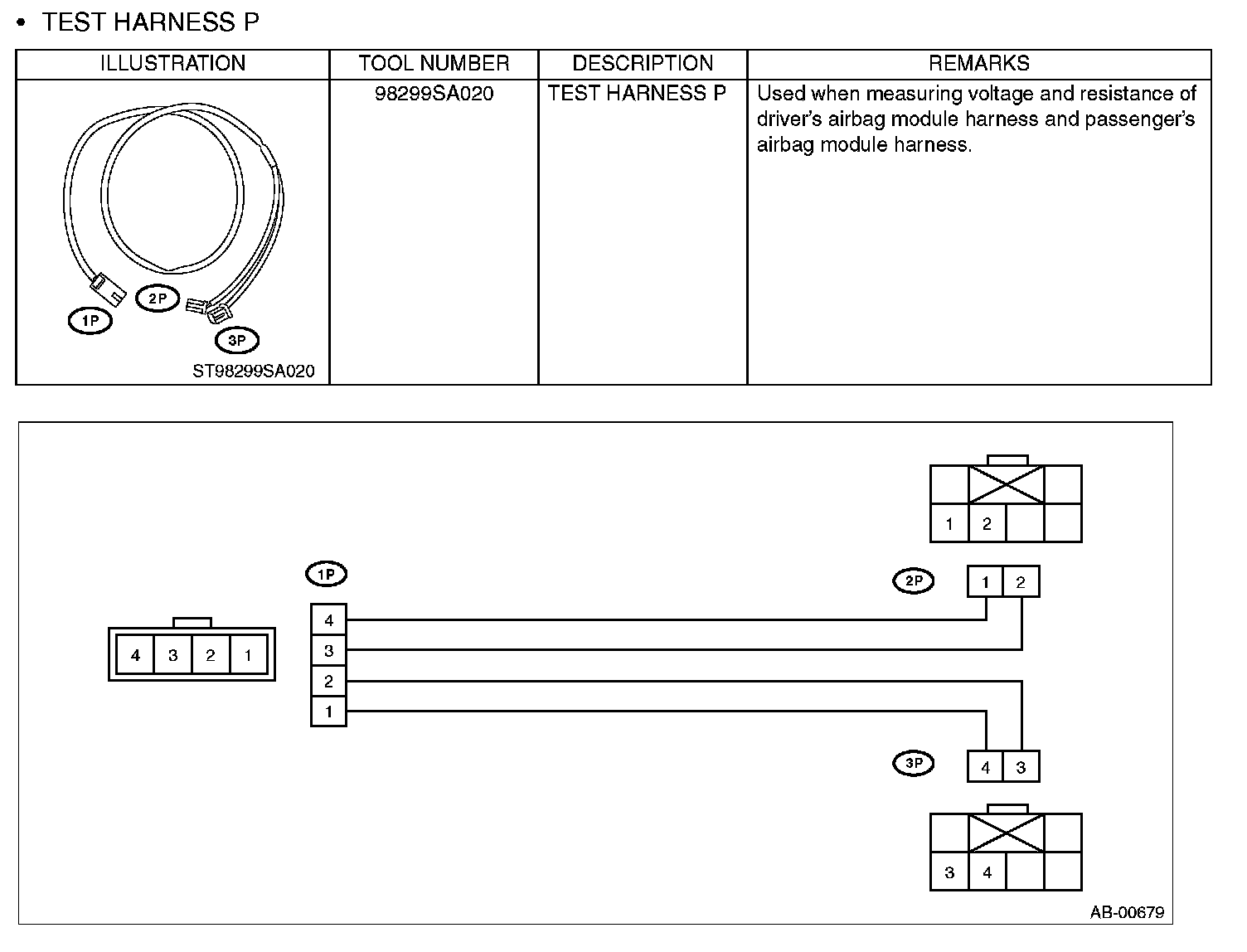

Test Harness P:

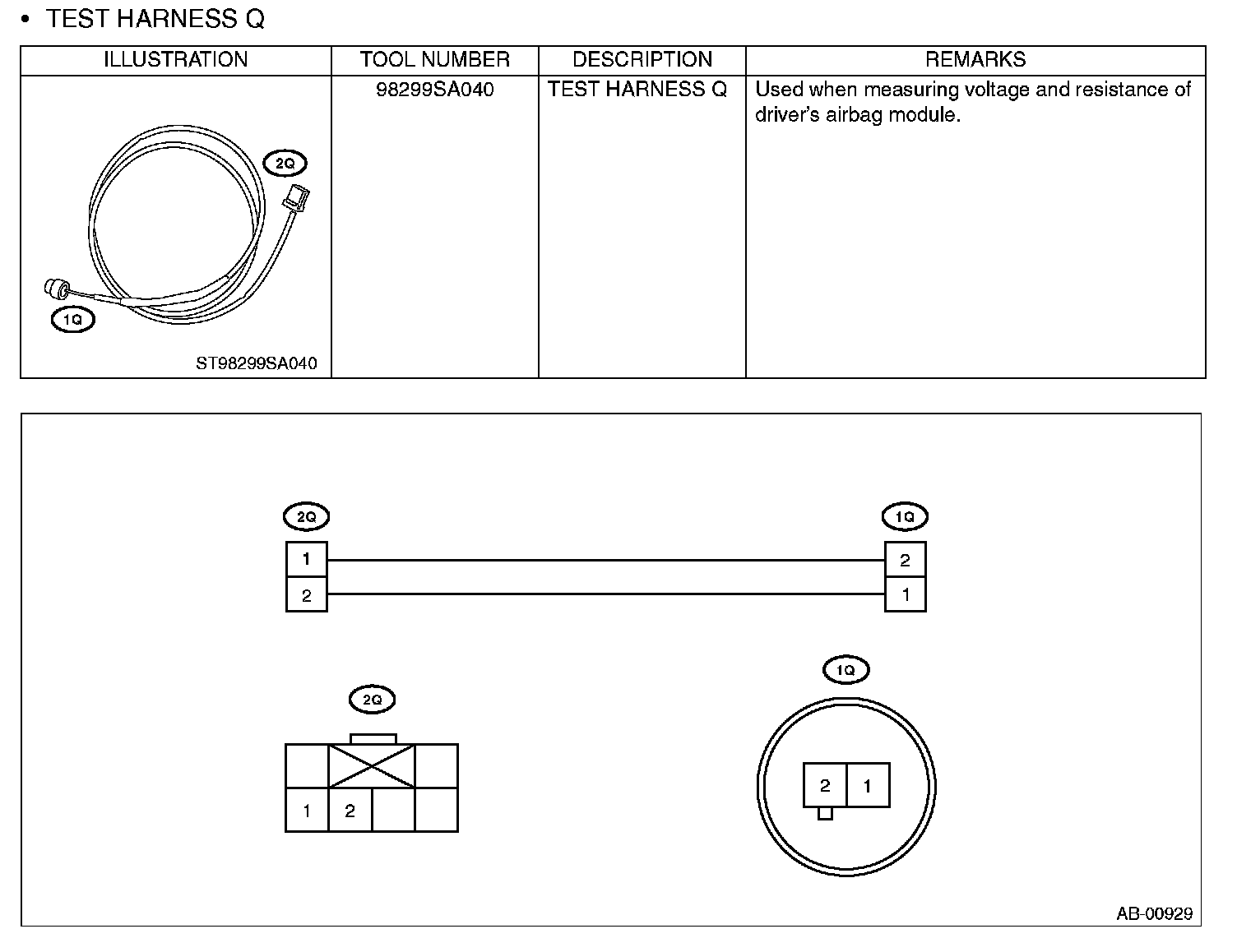

Test Harness Q:

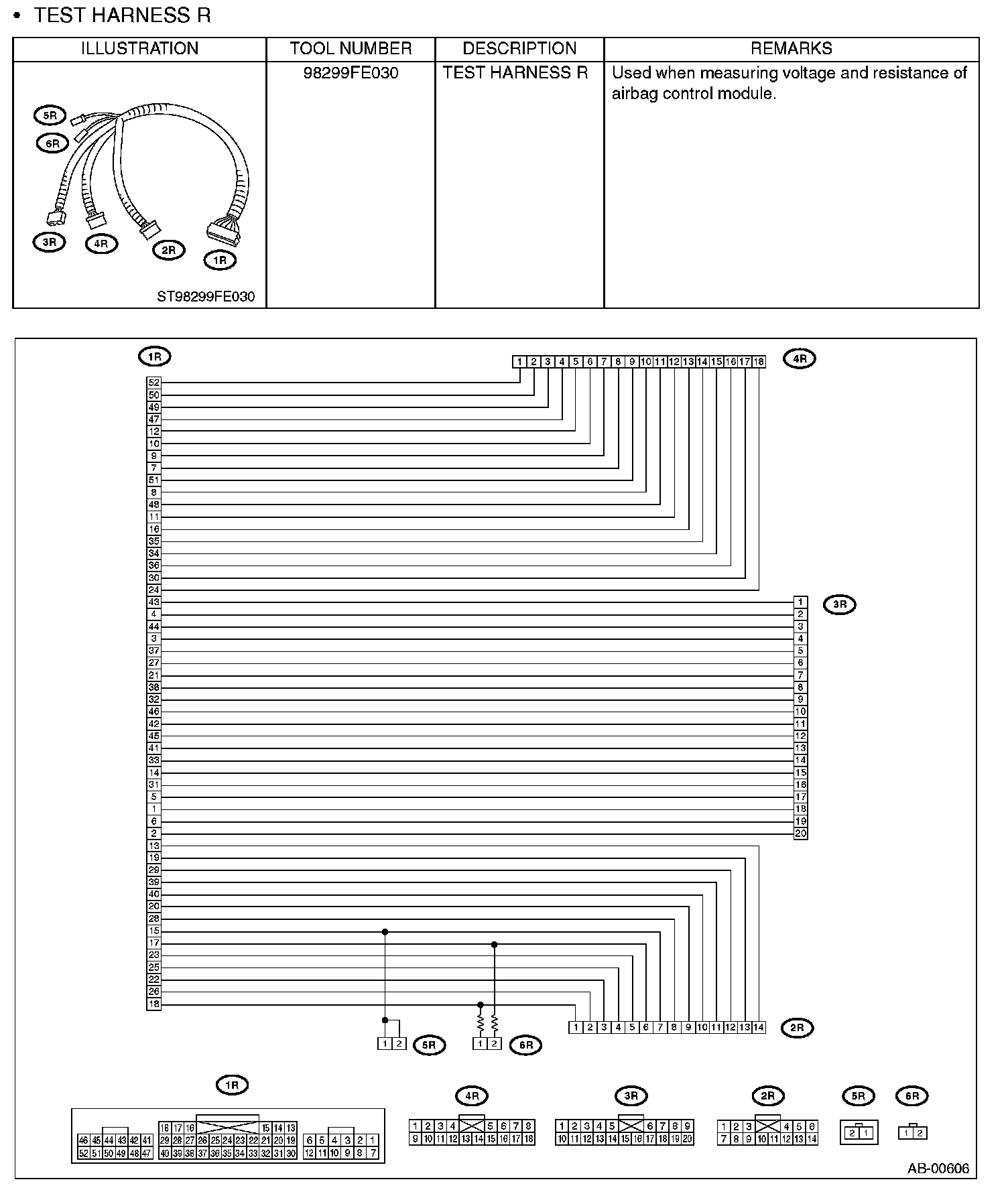

Test Harness R:

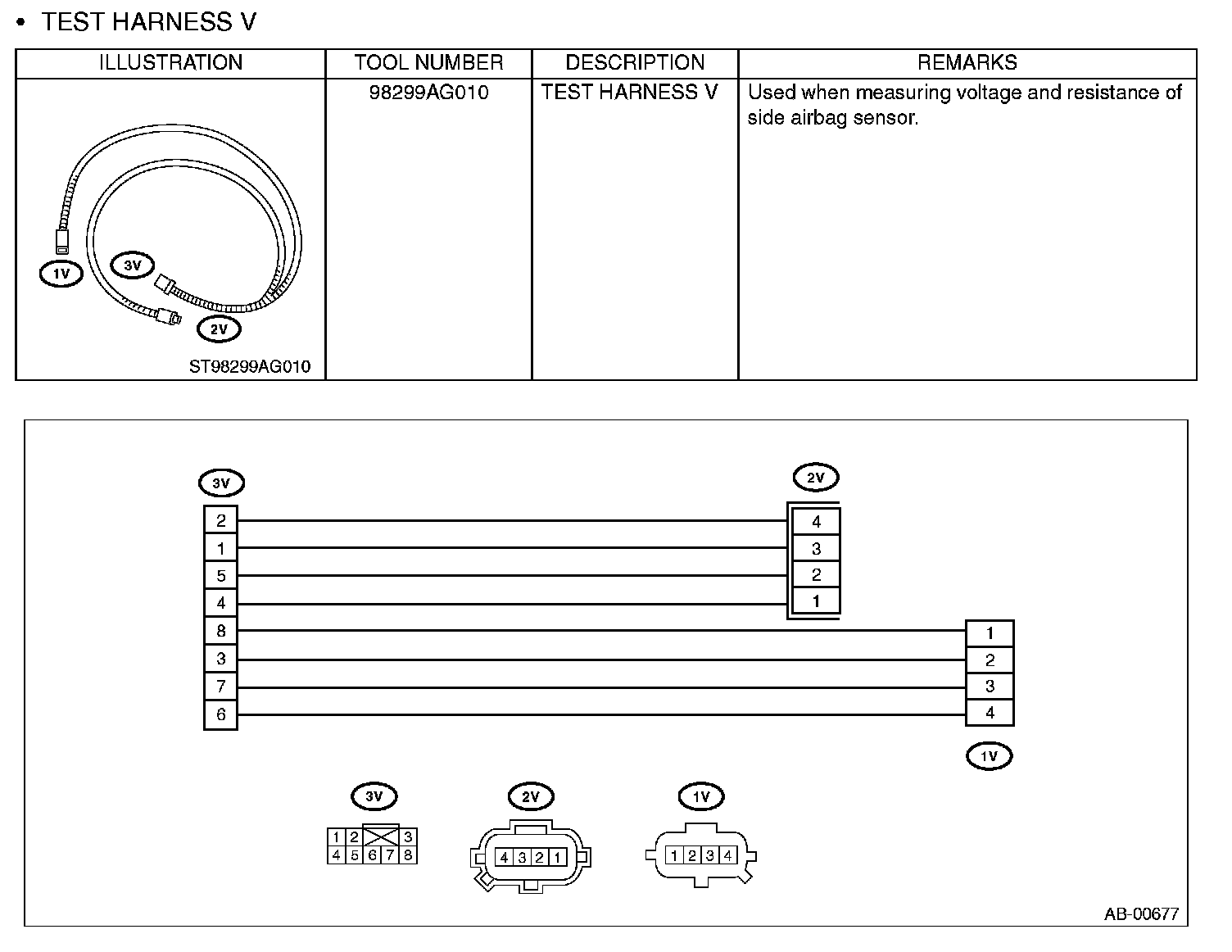

Test Harness V:

Test Harness Y:

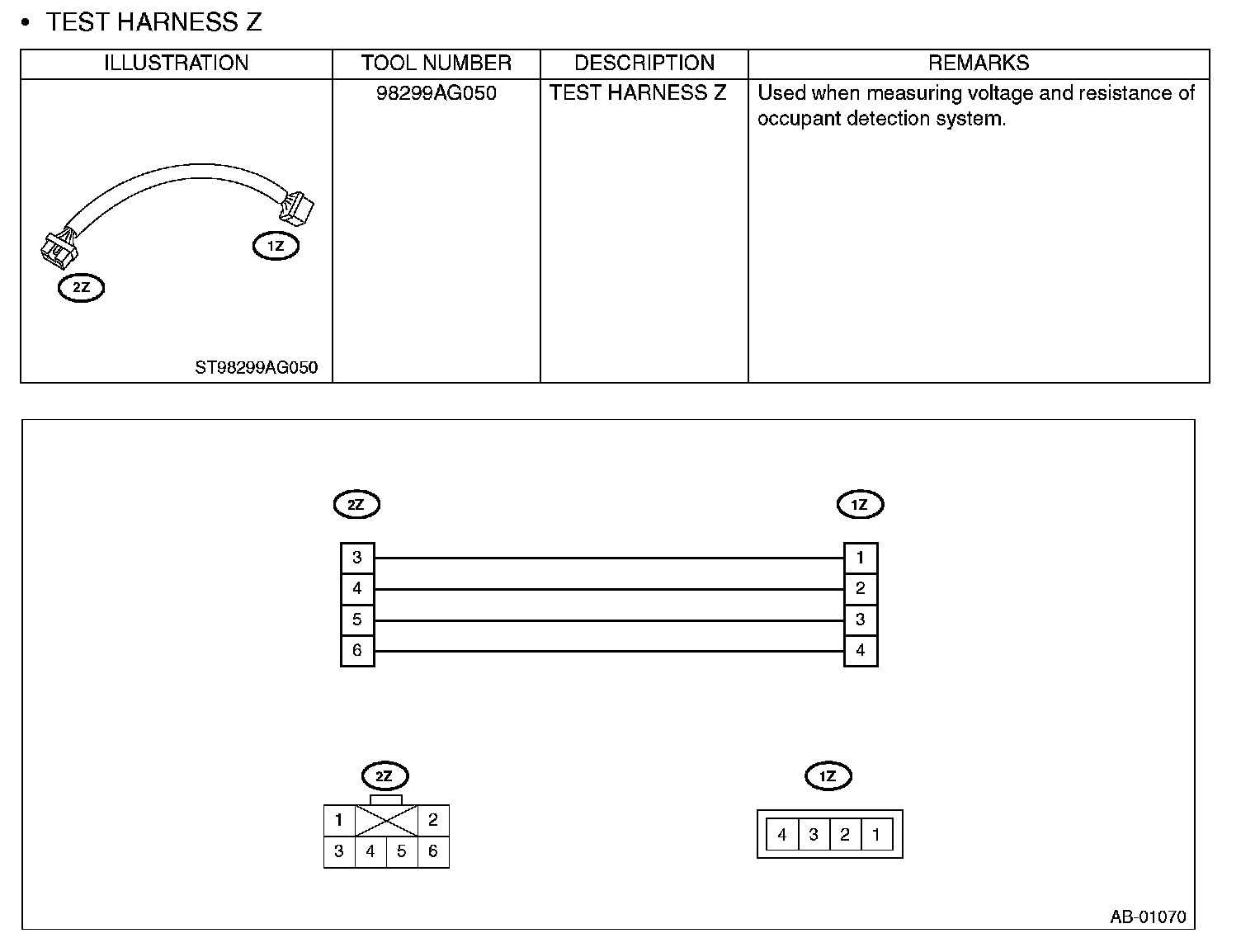

Test Harness Z:

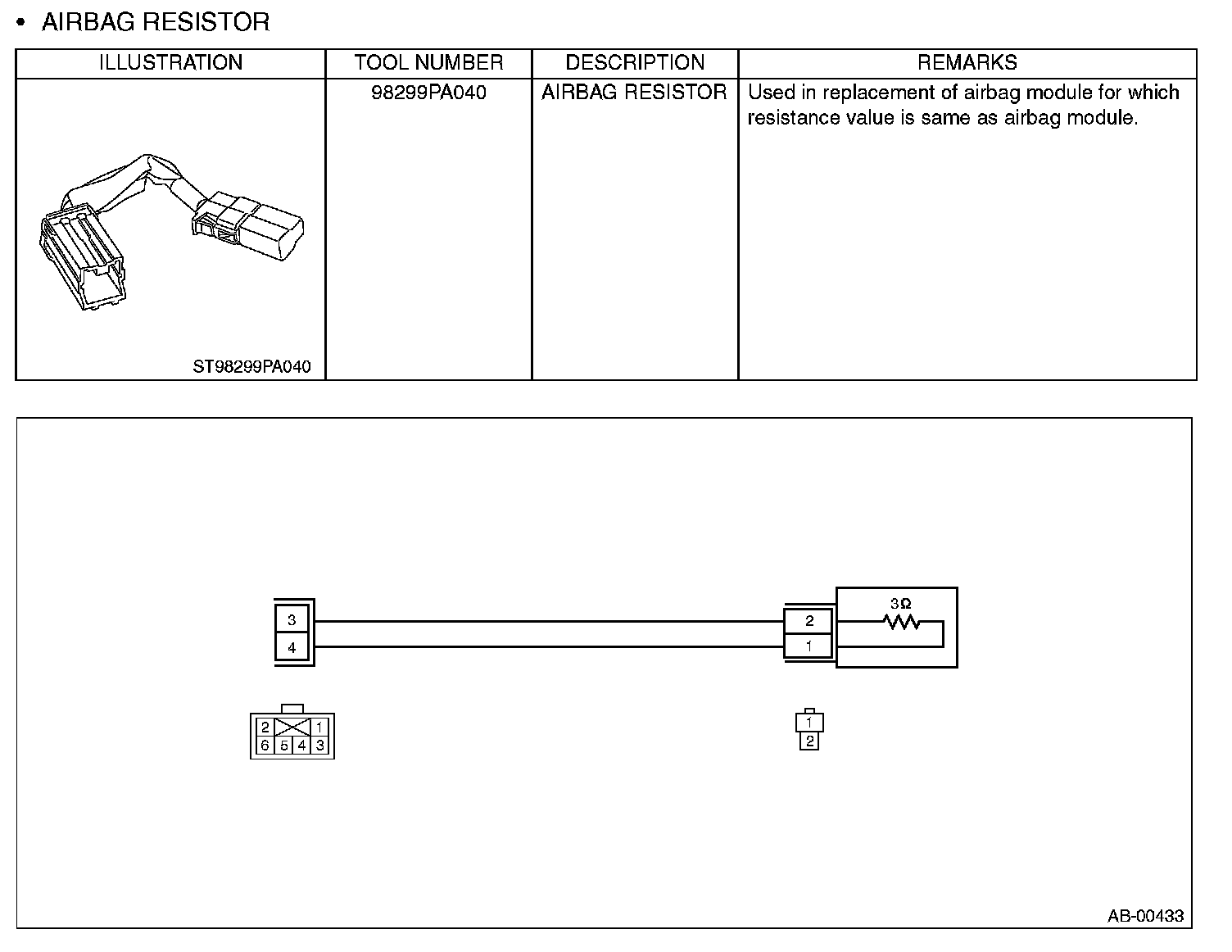

Airbag Resistor:

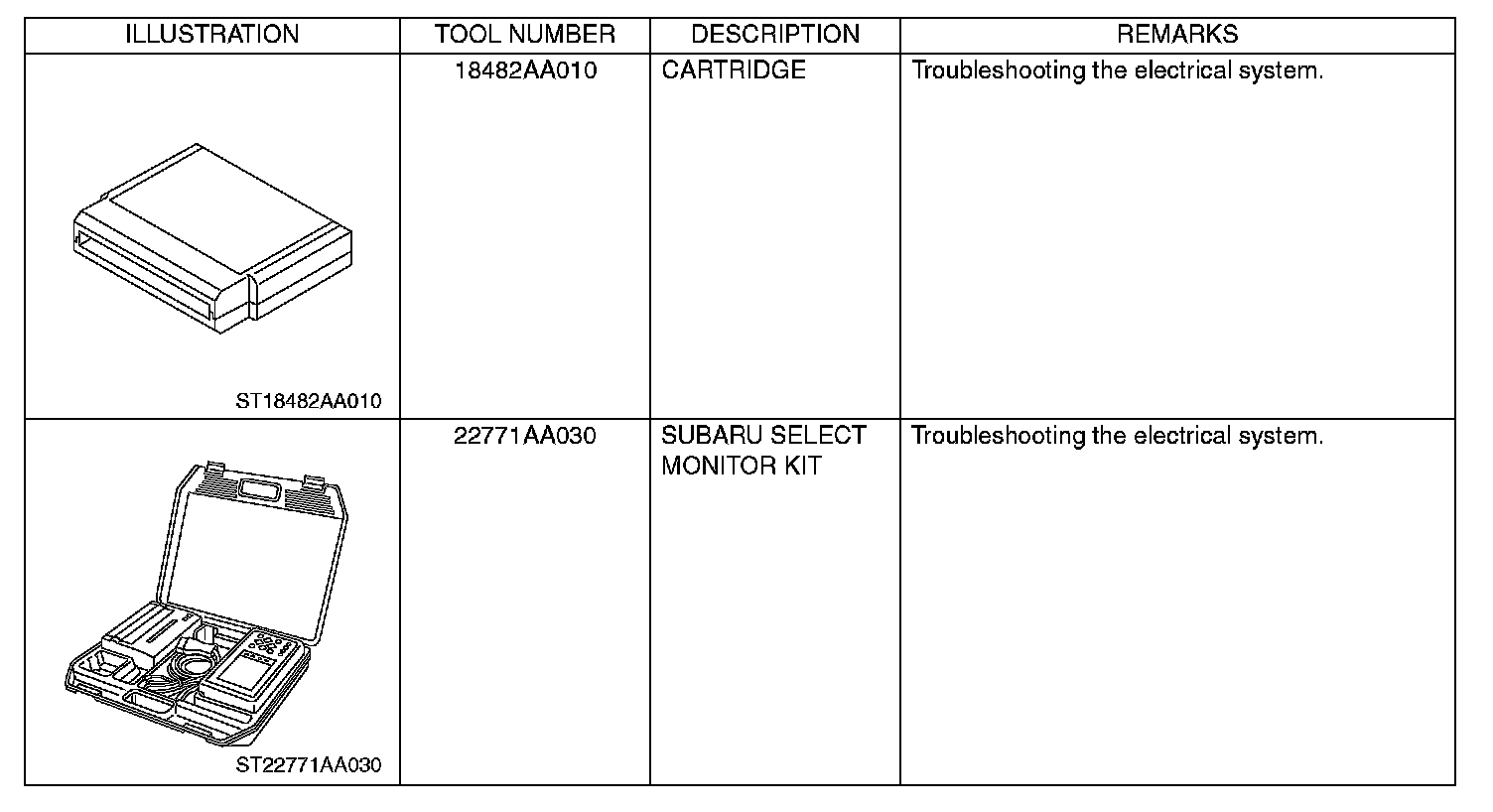

1. Special Tool
