Seat Belt Warning System
INSPECTION
TROUBLE SYMPTOM:
-
Seat belt warning light does not come on or go off.
-
Buzzer does not beep.

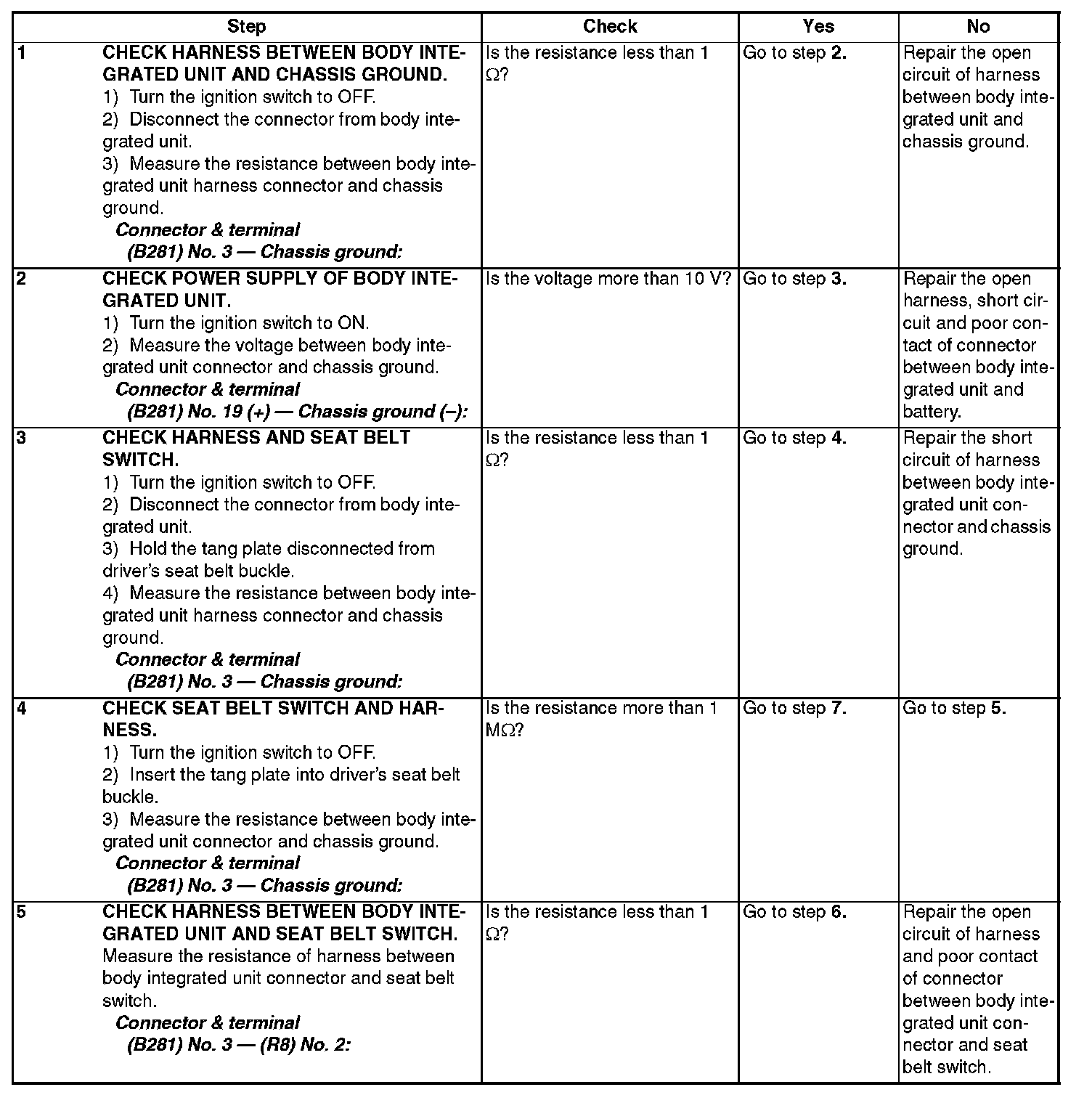

Step 1 - 5:
Step 6 - 12:
