Rear Axle Assembly

ASSEMBLY

NOTE: When the hub is removed from the housing, replace the bearing set and oil seal.

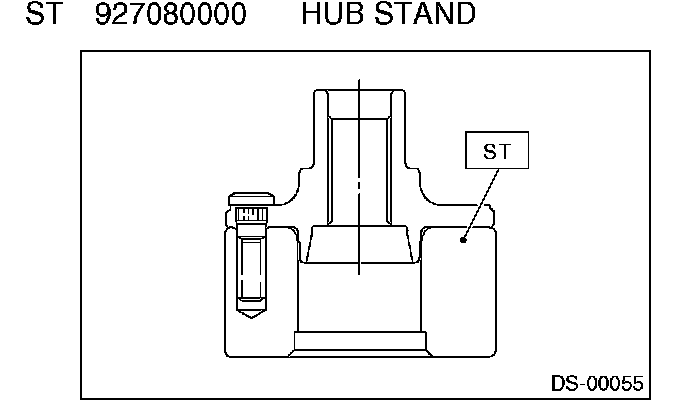

1. Using the ST, press the new hub bolt into place.

NOTE:
^ Make sure the hub bolt contacts the hub.
^ Use the 12 mm (0.47 inch) hole in the ST to prevent the hub bolt from tilting during installation.

ST 927080000 HUB STAND:

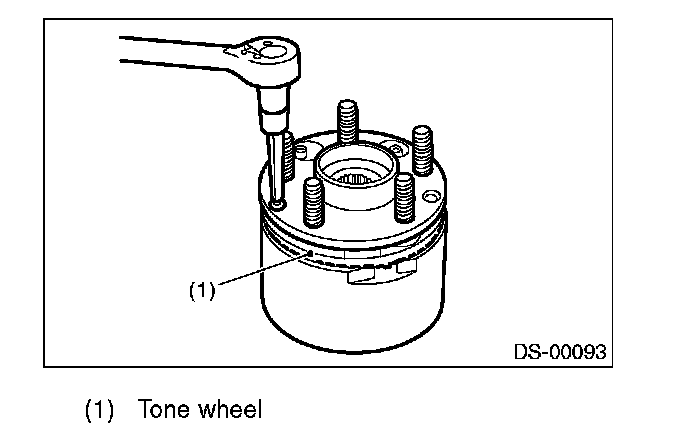

2. Remove the foreign particles (dust, rust, etc.) from the mating surfaces of hub tone wheel, and install the tone wheel to hub (model with ABS).

NOTE:
^ Make sure the tone wheel contacts the hub.
^ Be careful not to damage the tone wheel teeth.





3. Clean the housing interior completely. Using ST1 and ST2, press the bearing into the housing.

CAUTION:
^ Always press the outer race when installing bearings.
^ Be careful not to remove the plastic lock from the inner race when installing the bearings.





4. Using a pliers, securely install the snap ring.





5. Using the ST1 and ST2, press the outer oil seal until it comes in contact with snap ring.

ST1 927430000 HOUSING STAND ST2 927440000 BEARING REMOVER:

6. Invert both ST1 and housing (up and down).

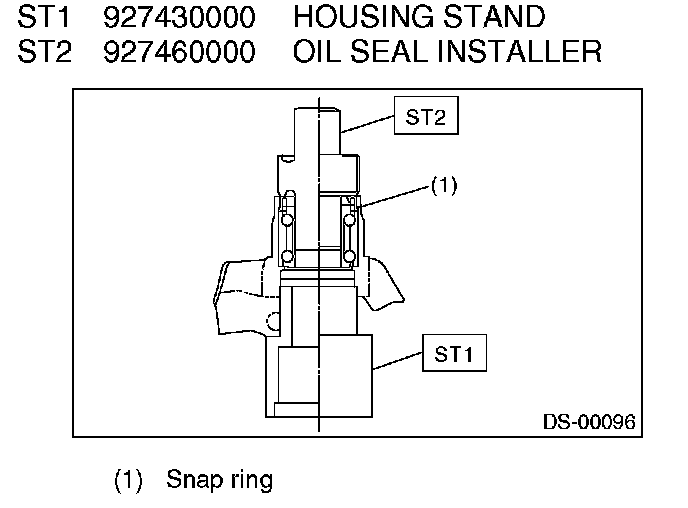

7. Using ST2, press the inner oil seal into the housing until it touches the bottom.

ST1 927430000 HOUSING STAND ST2 927460000 OIL SEAL INSTALLER:

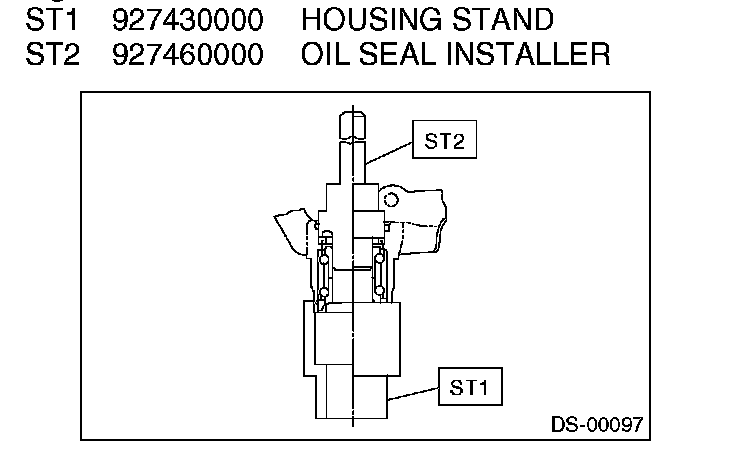

8. Using ST1 and ST2, press the sub seal into place.

ST1 927430000 HOUSING STAND ST2 927460000 OIL SEAL INSTALLER:

9. Apply sufficient grease to the oil seal lip.
Grease: SHELL 6459N

NOTE: If specified grease is not available, remove the bearing grease and apply Auto Rex A instead.

CAUTION: Do not mix different types of grease.

10. Install the back plate to the rear housing.
Tightening torque: 52 Nm (5.3 kgf-m, 38.3 ft. lbs.)
11. Using ST1 and ST2, press the bearing into the hub.

ST1 927080000 HUB STAND ST2 927450000 HUB INSTALLER:
