Rear Axle Disassembly

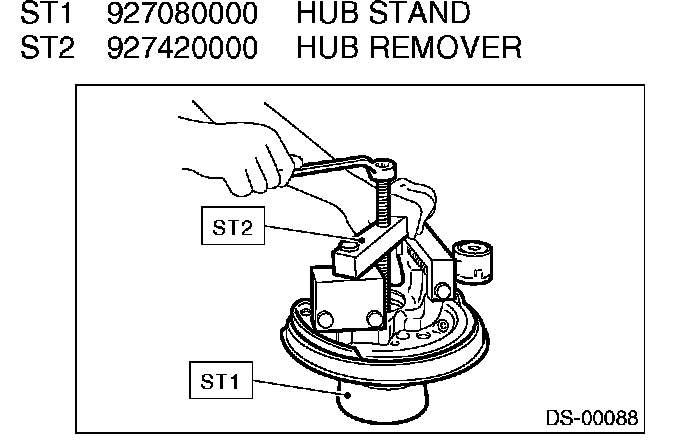

DISASSEMBLY1. Using ST1 and ST2, remove the hub from the rear housing.
ST1 927080000 HUB STAND ST2 927420000 HUB REMOVER:
2. Remove the back plate from the rear housing.
3. Remove the outer and inner oil seals using a flat tip screwdriver.
4. Remove the snap ring using a flat tip screwdriver.
CAUTION: Be careful not to damage housing during removal.
5. Using ST1 and ST2, remove the bearing by pressing the inner race.
ST1 927430000 HOUSING STAND ST2 927440000 BEARING REMOVER:
6. Remove the tone wheel bolts and remove the tone wheel from the hub (model with ABS).

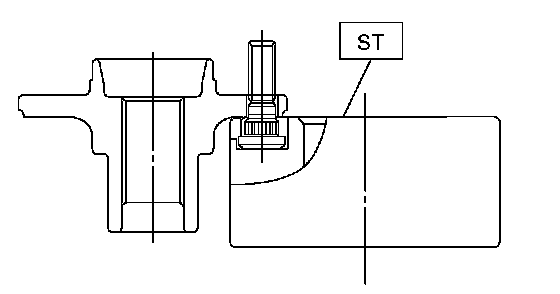

7. Using ST, press the hub bolt out.
ST 927080000 HUB STAND
CAUTION: Be careful not to hammer the hub bolts. This may deform the hub.
