Center Mounted Brake Lamp: Service and Repair

HIGH-MOUNTED STOP LIGHT

REMOVAL

1. SEDAN MODEL (STANDARD TYPE)
1. Disconnect the ground cable from battery.

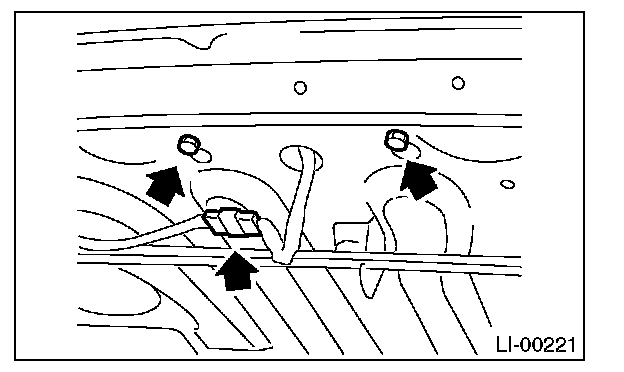

2. Disconnect the connector of high-mounted stop light from body harness.

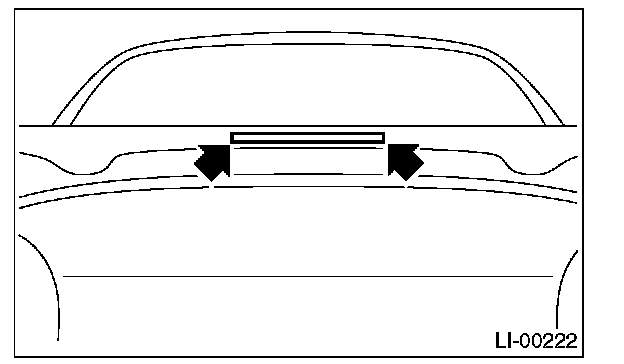

3. Remove the bolts, then detach the high-mounted stop light assembly.

2. SEDAN MODEL (REAR SPOILER BUILT-IN TYPE)
1. Disconnect the ground cable from battery.





2. Remove the bolts, then detach the high-mounted stop light assembly.
3. Disconnect the connector of high-mounted stop light from body harness.

3. WAGON MODEL
1. Disconnect the ground cable from battery.

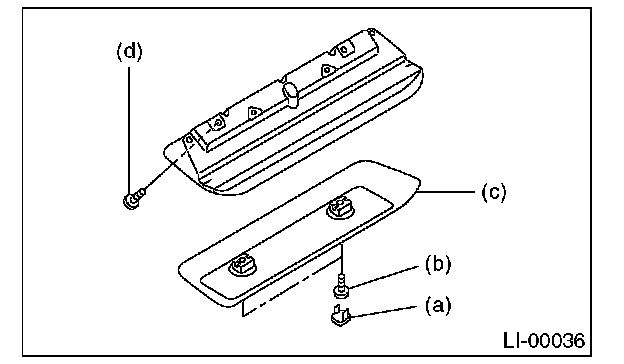

2. Remove the cap (a) by prying on the edge with screwdriver.
3. Remove the screws (b), and then the detach cover (c).




4. Remove screws (d), and then detach the highmounted stop light while disconnecting connector.

INSTALLATION
Install in the reverse order of removal.
