Steering - Steering Angle Sensor Information

This input increases the efficiency of the DCCD by providing a faster control of duty ratio to the magnetic clutch.





The steering wheel angle sensor can be read by the select monitor but it is not adjustable. Proper front end alignment and steering wheel placement are a must to maintain the correct centering of the steering angle sensor.

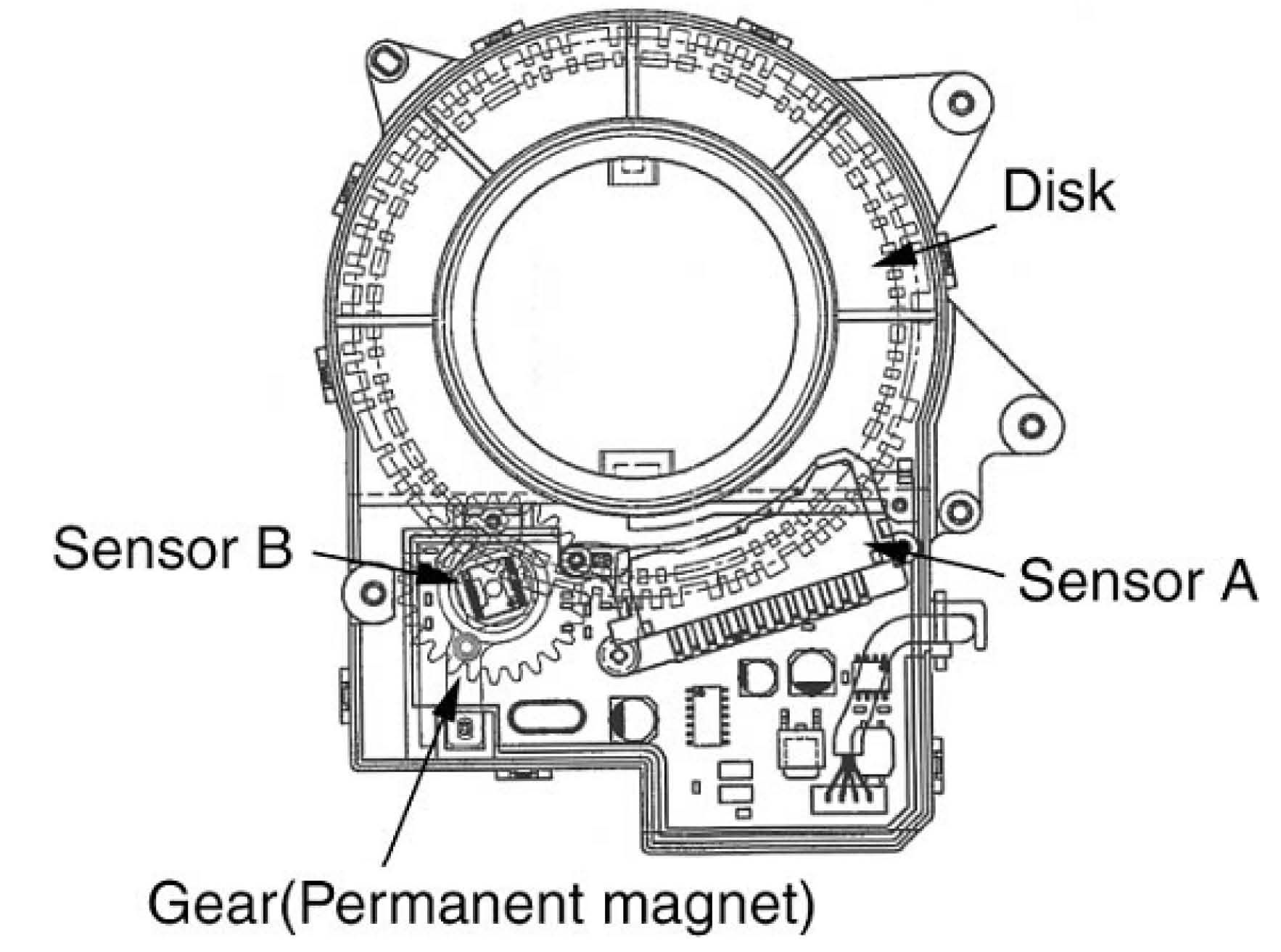

Some additional information can be found on this in the Manual Transmission section of the on-line service manual found on the STIS website. Below is a phantom view of the internal components of the sensor but remember that the sensor is neither adjustable or serviceable.
