Locations
>>
Connector Locations
>>
E1-E64 & T3-T6 & T2-T13
E1-E64 & T3-T6 & T2-T13
Engine Wiring Harness and Transmission Cord
E1-E64:

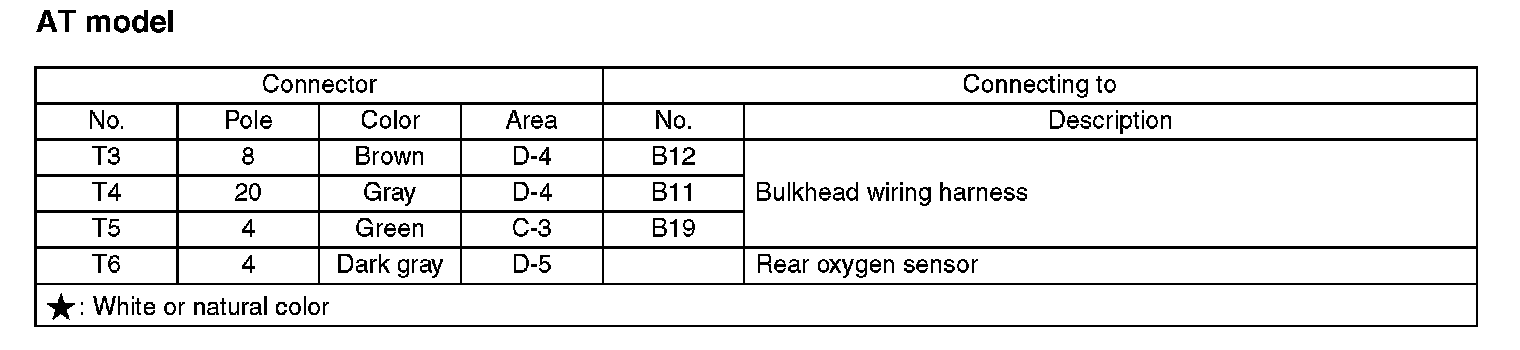

T3-T6:

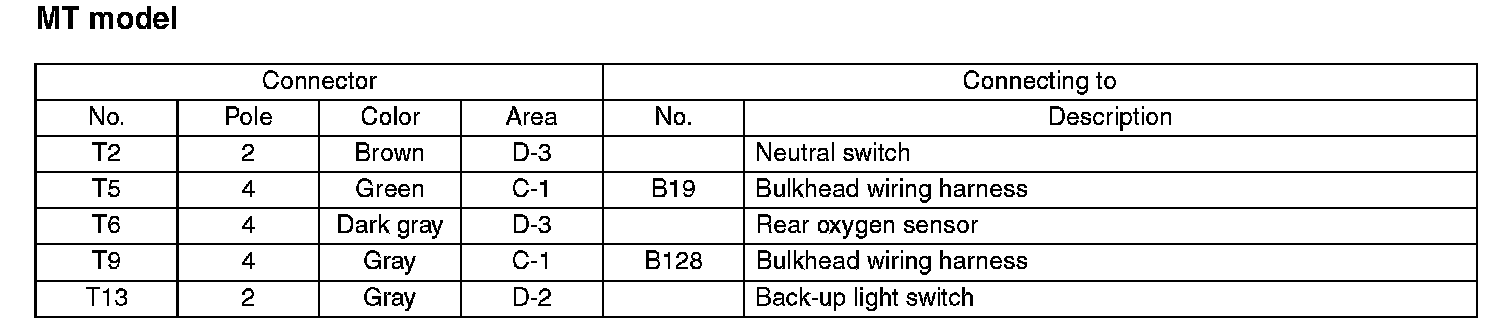

T2-T13:
Area View:
