E2-E75 & T3-T7 & T1-T2
E2-E75 & T3-T7 & T1-T2
Engine Wiring Harness and Transmission Cord

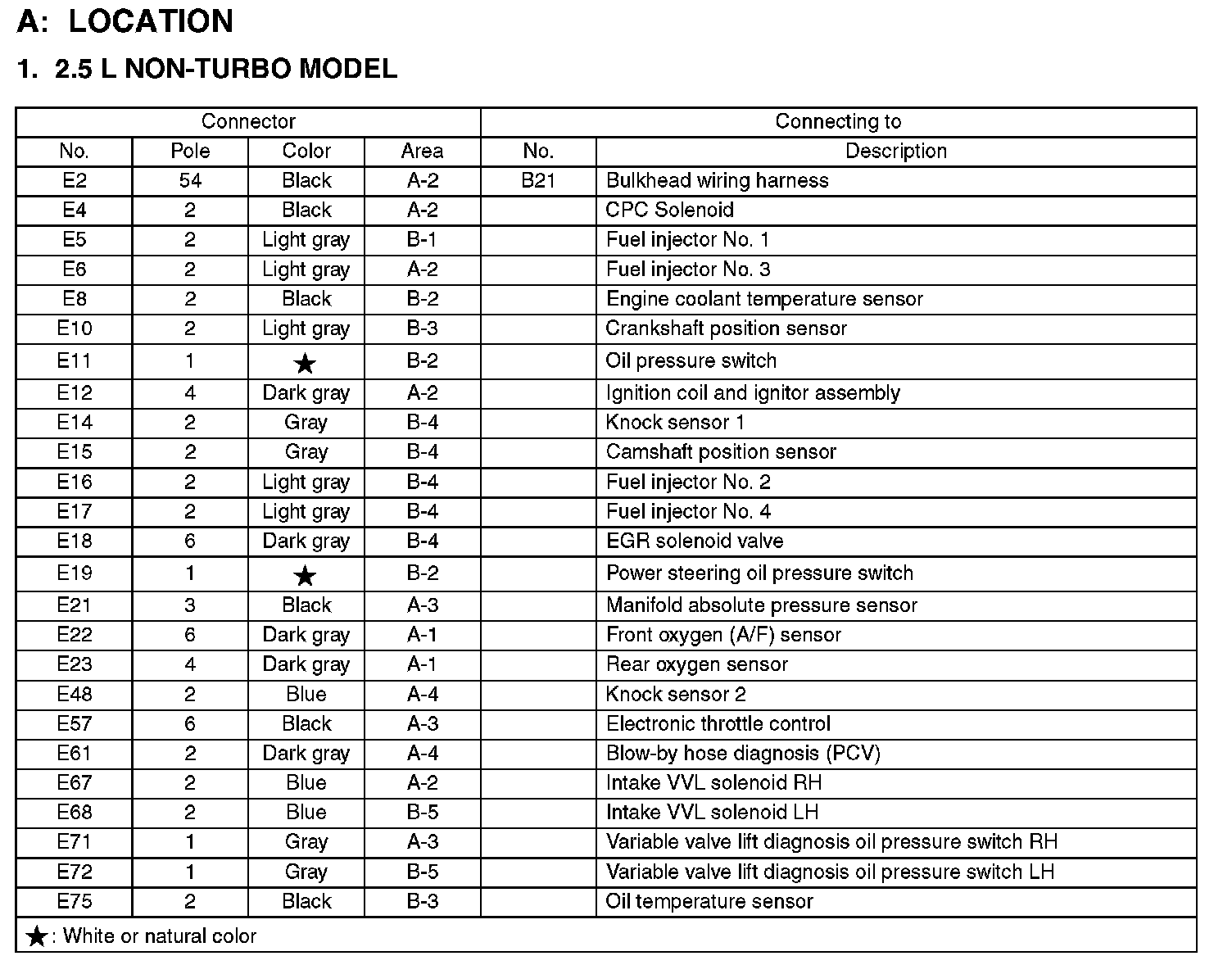

E2-E75:
T3-T7:

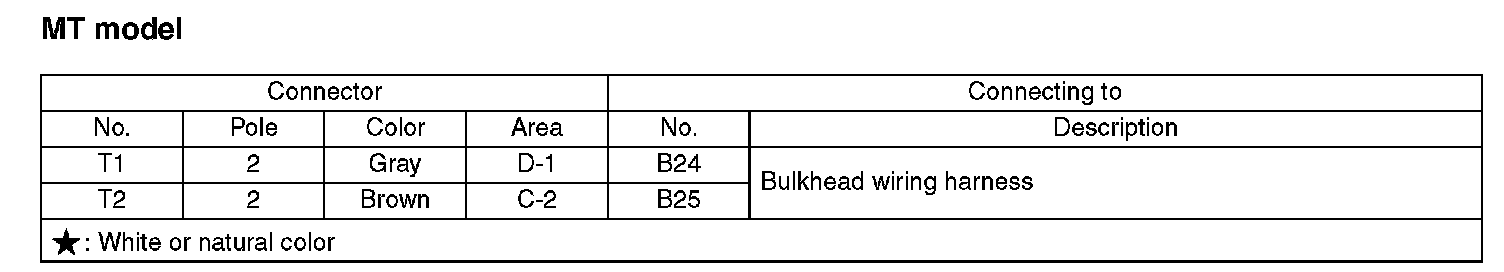

T1-T2:

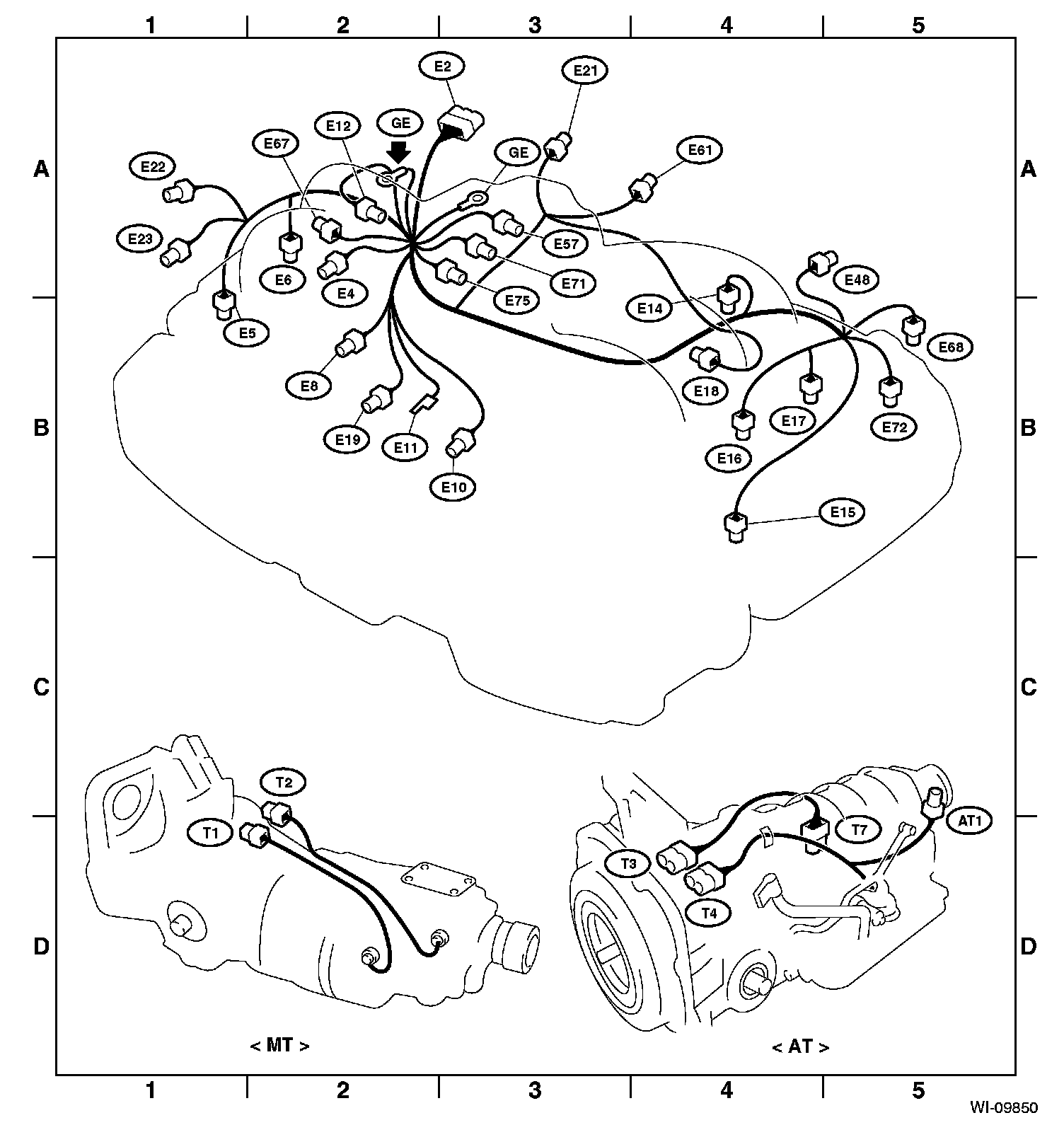

Area View:
