Splash Guard: Service and Repair

FRONT UNDER COVER

Under Cover:

REMOVAL

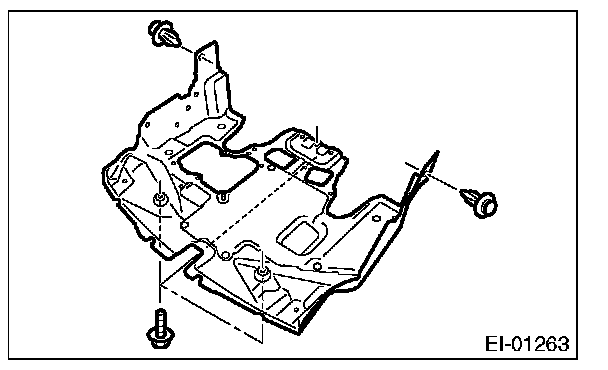

1. Remove the clips and bolts, then remove the undercover.

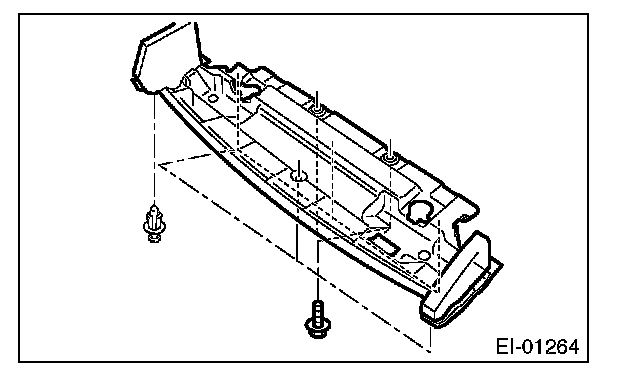

2. Remove the clips and bolts, then remove the front lower cover.






INSTALLATION

Install in the reverse order of removal.

Tightening torque: Refer to "COMPONENT" of "General Description".
